OxyRevo Forward90 1.4 to 1.5 ATA Portable Sitting Hyperbaric Chamber

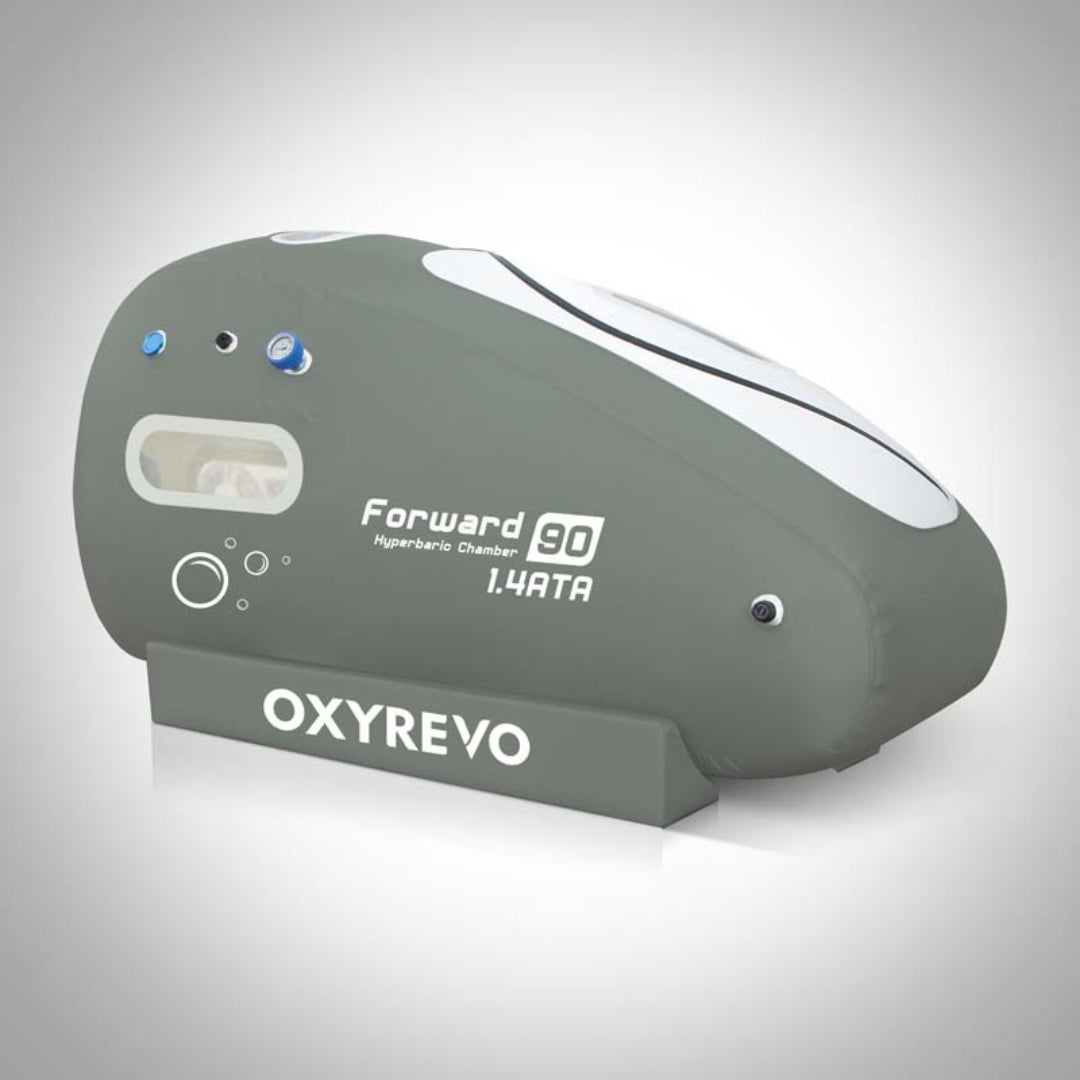

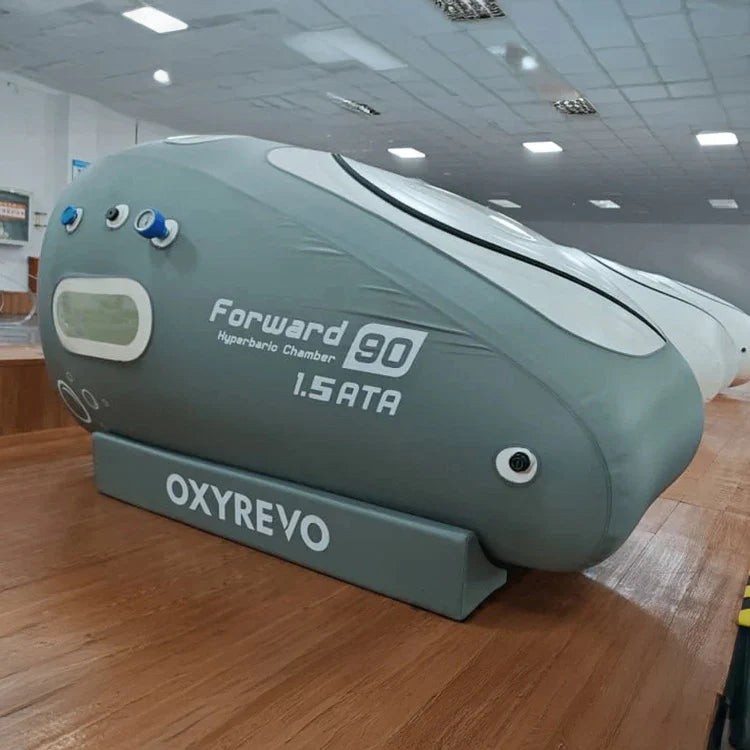

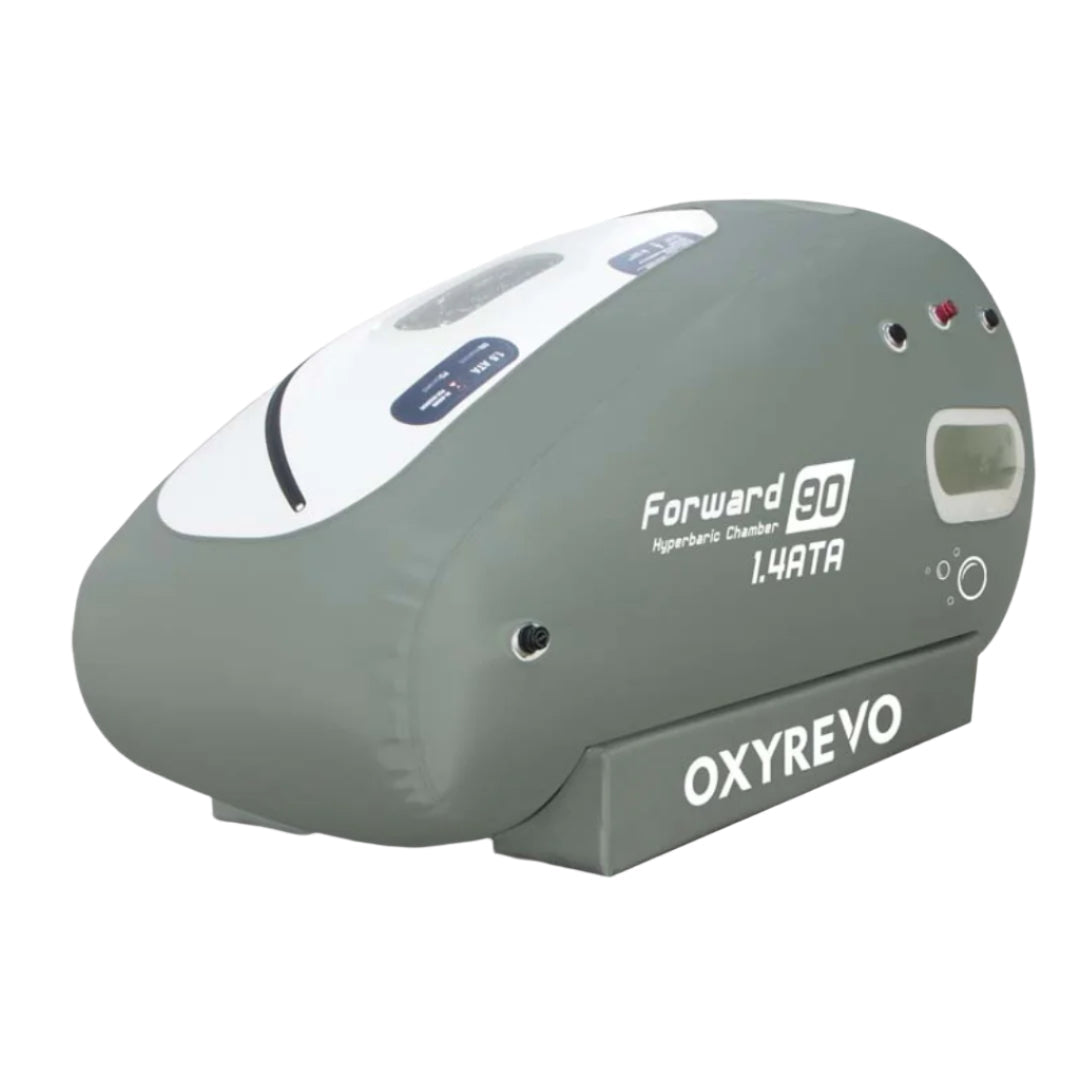

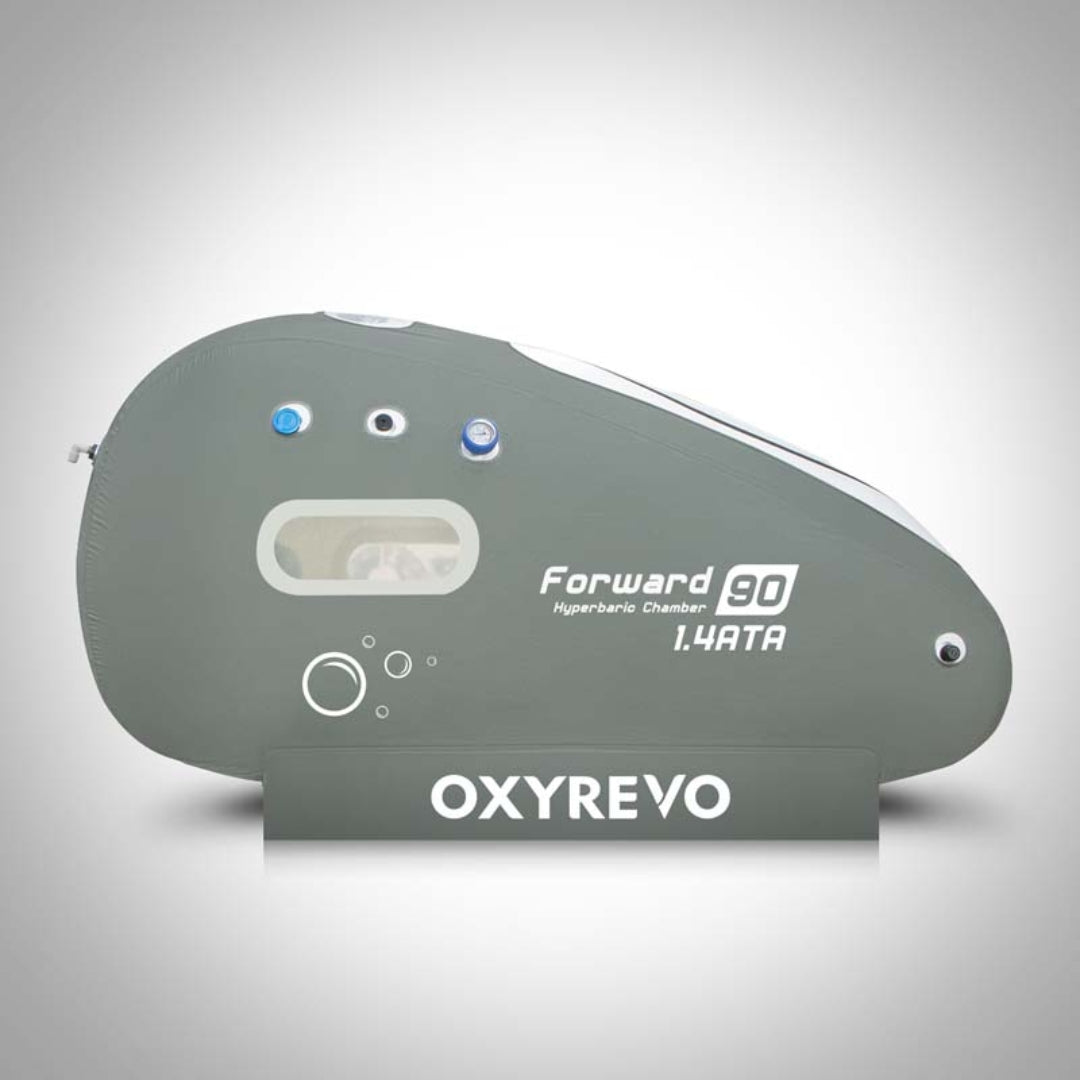

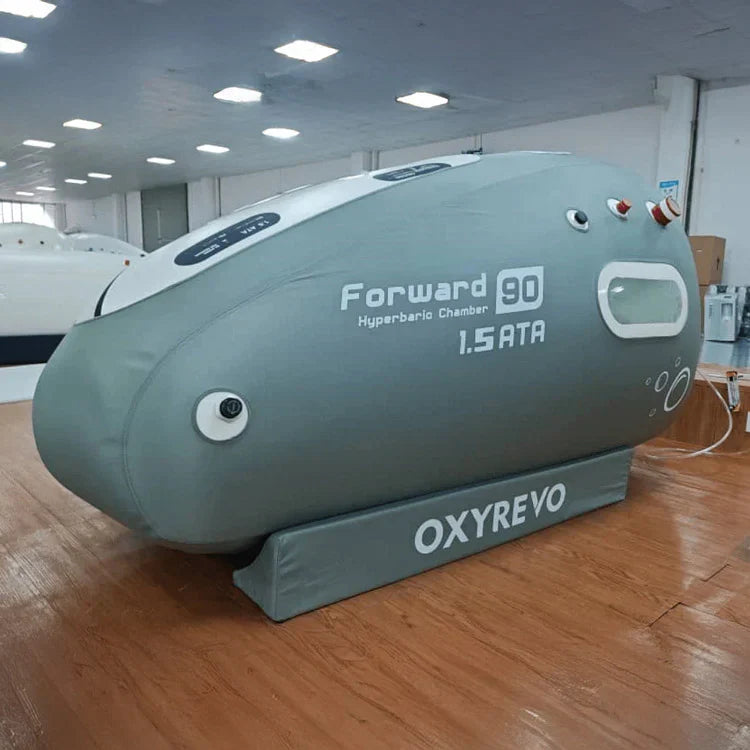

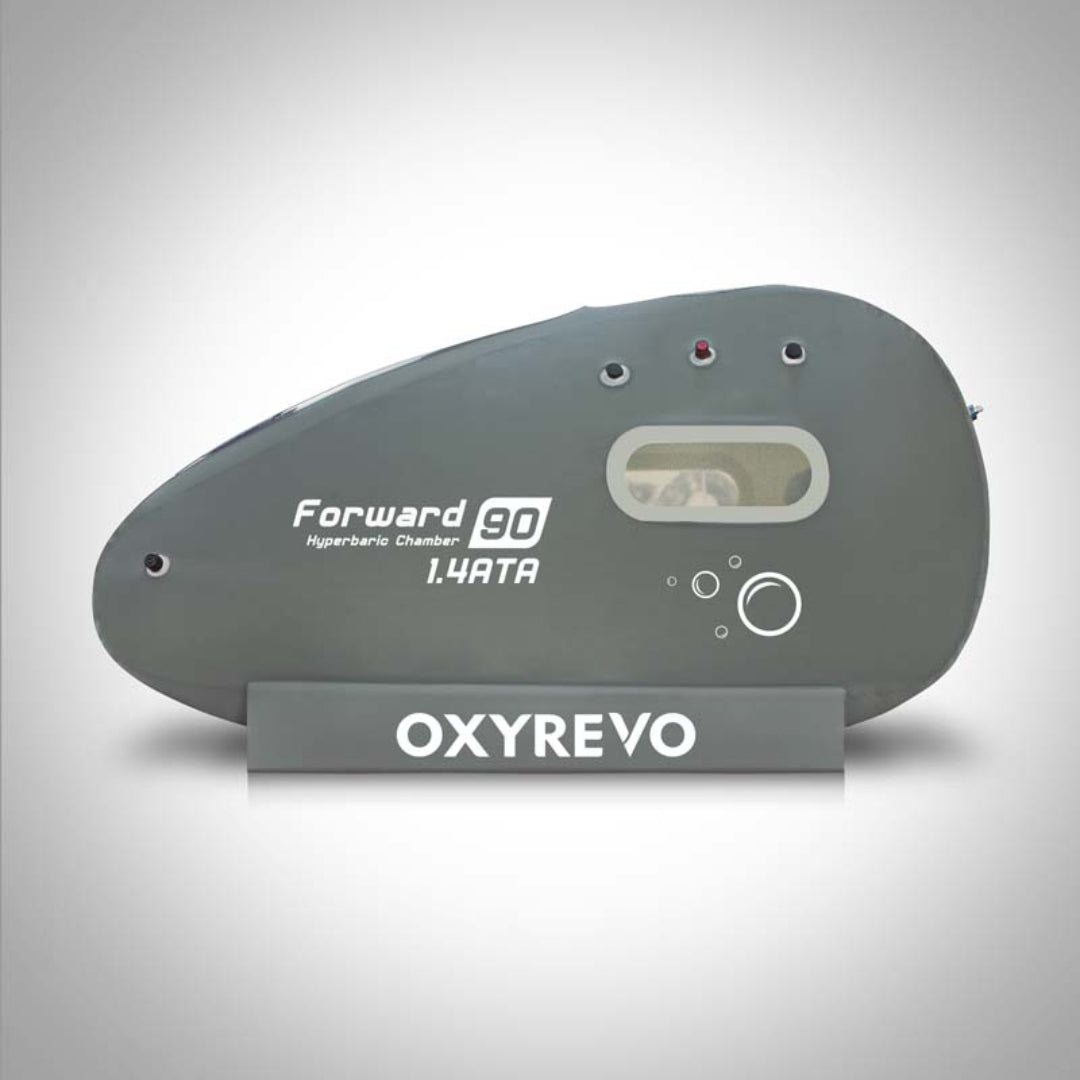

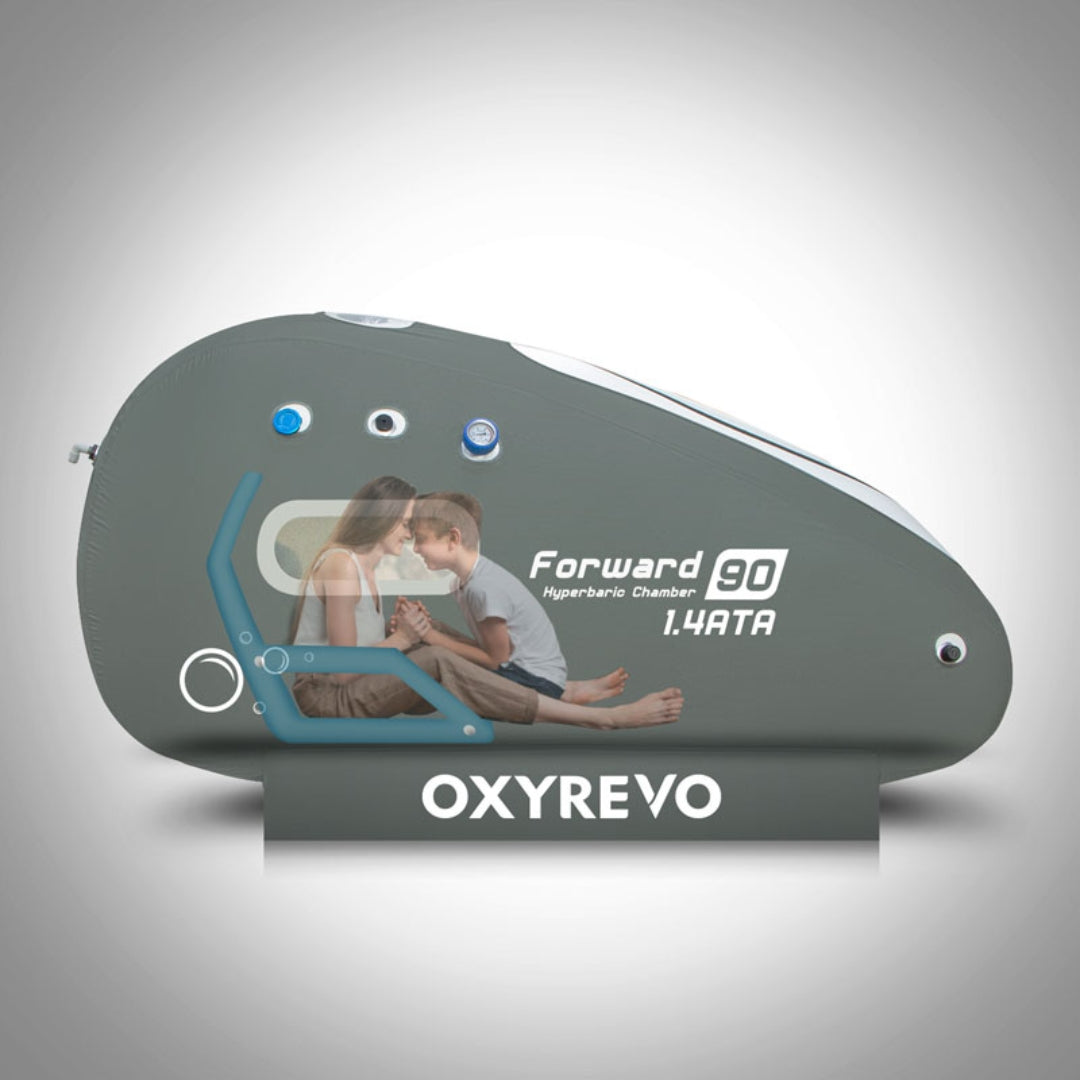

OXYREVO Forward 90 Portable Sitting Hyperbaric Chamber

The OXYREVO Forward 90 is a portable soft-shell hyperbaric oxygen chamber designed for sitting, reclining, or laying down.
Operating at 1.4 ATA or 1.5 ATA, it delivers pressurized, oxygen-rich air for recovery, performance, and wellness — all in a compact, home- and clinic-friendly design.

Still feeling sore, tired, or stuck in your recovery?

Hard training. Long hours. Chronic inflammation. Fatigue that won’t quit. You push your body, but it doesn’t always bounce back the way you need it to.

Enter the Forward 90— the sitting-style hyperbaric chamber that boosts recovery, reduces soreness, enhances performance, and helps you feel more alive, all from the comfort of your home or facility.

How Oxygen Can Supercharge Your Recovery

Step 1: You sit comfortably inside the Forward 90 as it pressurizes.
Step 2: The chamber fills with clean, oxygen-rich air.
Step 3: Pressurized oxygen saturates your blood, muscles, and tissues.
Result: Your body's natural recovery and healing processes thrive.

100% natural. Drug-free. Backed by decades of clinical science.

Why Athletes, Trainers & Wellness Pros Love the Forward 90

✅ Faster Muscle & Tissue Recovery

✅ Reduced Inflammation & Pain

✅ Enhanced Endurance & Blood Flow

✅ Deeper Sleep & Cellular Healing

✅ Relaxed, Upright Sitting Position

This is a great product!

04/29/2025

★★★★★

Verified Buyer

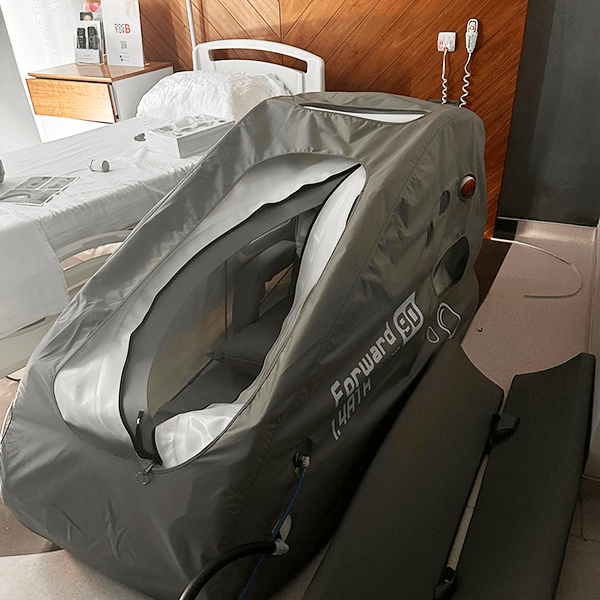

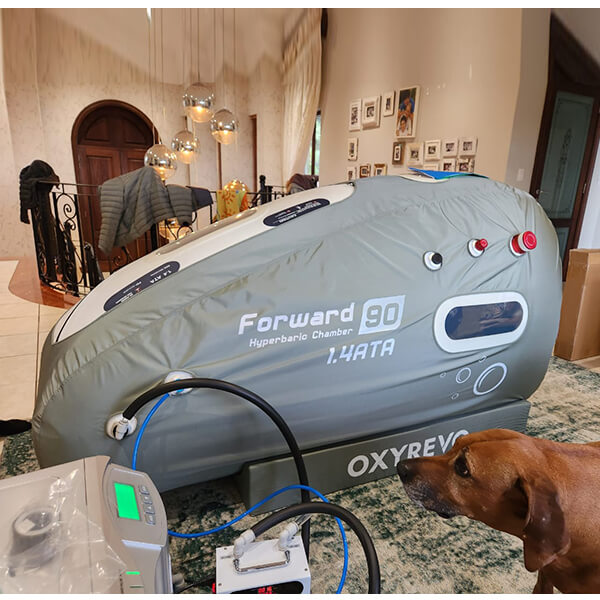

We are so glad we purchased the OxyRevo Forward90. We have been impressed with the quality and the service we received. After reviewing the different units, we chose the Forward90 because it allows us to sit upright or lay down. We feel we are benefiting from the health aspects of HBOT. We have experienced a number of concussions as well as other serious health issues, so using the HBOT is a big part of our health regime. We feel more energy after using our OxyRevo unit. RH

- Rebekah H

Forward 90: Methods Behind The Magic

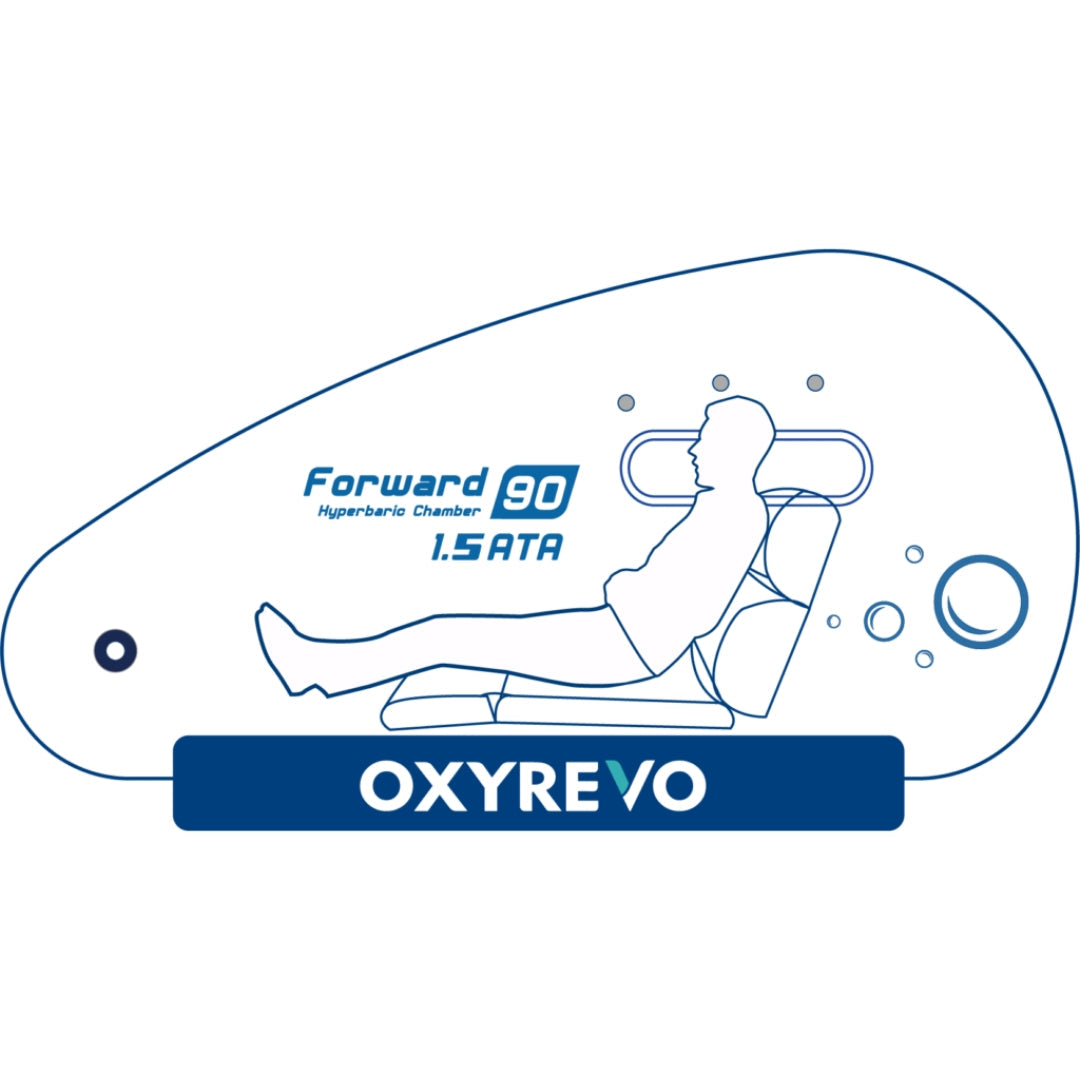

3 Comfortable Sitting Positions During Use

Choose Your Forward 90 Configuration

Each Available in 1.4 ATA or 1.5 ATA Pressure Settings.

Standard

• 3 separate operating units (oxygen concentrator, cooler, compressor)
• Lower cost option

Pro

• All-in-one machine + optional Nano Ion Disinfection
• Compact, quieter, easier setup

What's Included:

Here’s everything that comes with the OXYREVO Forward 90:

Chamber Features:

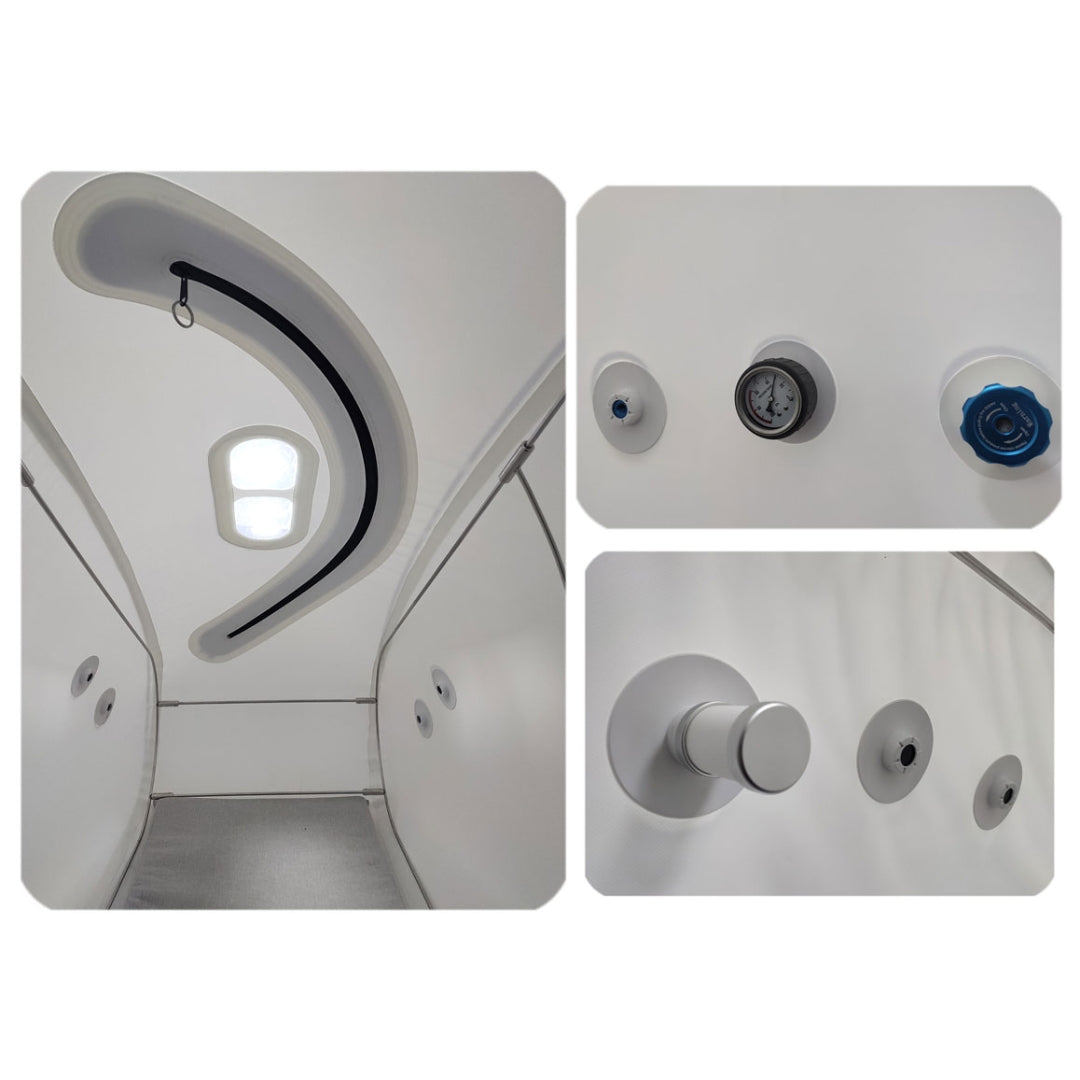

• Internal & external pressure gauges for real-time monitoring
• Pressure deflate valves for controlled decompression
• User-friendly control panels & display screen
• Built-in communication system for seamless interaction
• Pressure relief valves for enhanced safety
• Integrated reading lights for added convenience

Operating Unit:

• Oil-free air compressor for efficient airflow
• 10L oxygen concentrator for a steady oxygen supply
• Cooling machines to maintain optimal temperature
• Anion air purifier for cleaner air circulation
• Air sterilizer & filter for maximum hygiene
• Humidity water container to regulate moisture levels

Included Accessories:

• Oxygen mask
• Spare filters
• Fuses
• Air/oxygen tubes
• Power cable

OXYREVO Forward 90 Specifications

Chamber/Shell:

• Working Pressure: 1.4 ATA / 1.5 ATA

• Chamber Type: Portable soft-shell sitting hyperbaric chamber

• User Positions: Sitting, reclining, or laying down

• Chamber Weight: 15 kg (30 lbs)

• User Weight Capacity: Up to 100 kg (220 lbs)

• Dimensions: 90" L × 47" W × 47" H

• Windows: 4 large, multi-layered transparent windows

• Noise Level: ≤ 50 dB

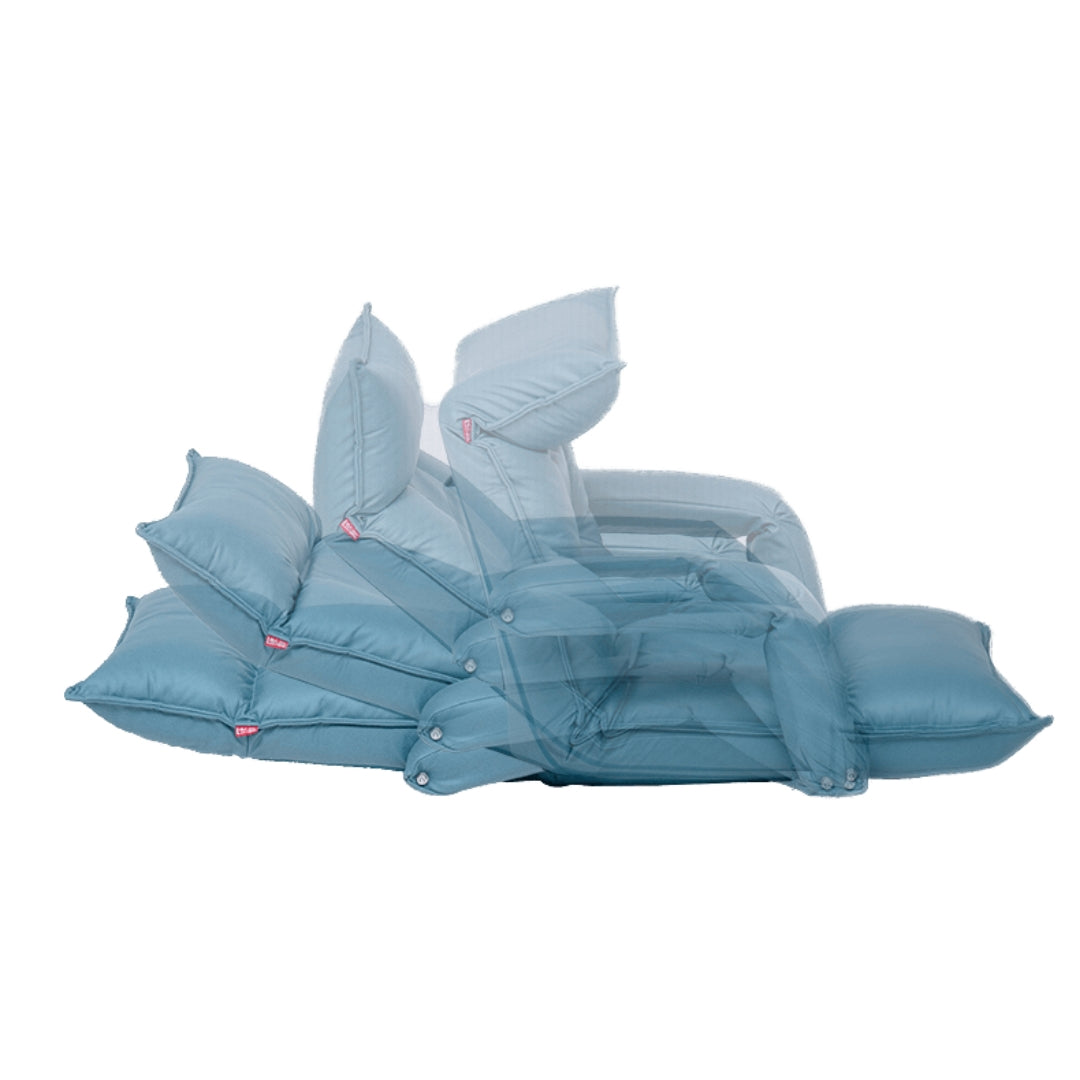

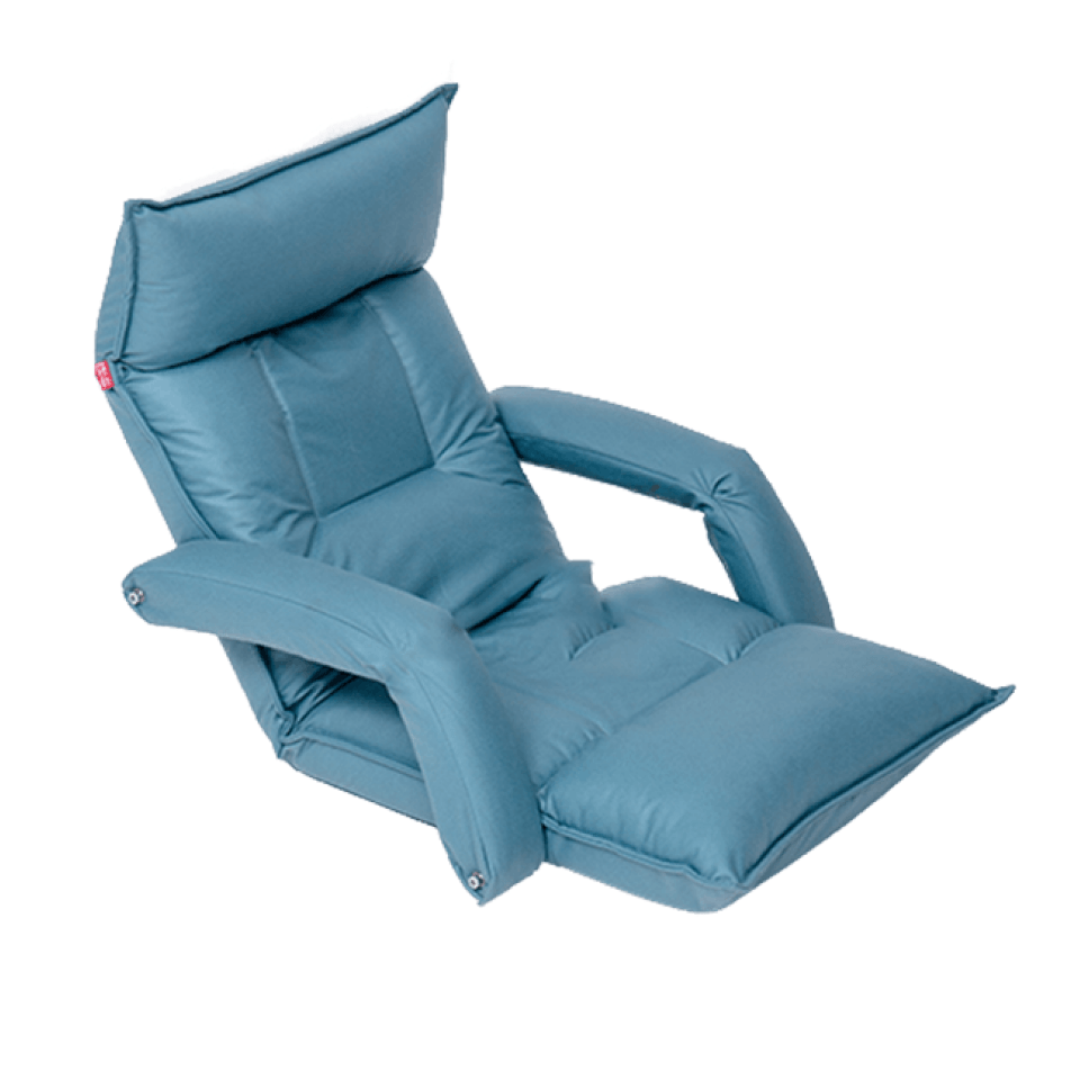

• Folding Chair: Adjustable (sitting & reclining positions)

• Frame Structure: Internal steel support frame

• Materials: Non-toxic, heat-welded, medical-grade construction

• Cover Color: Grey (OEM colors available)

• Emergency Pressure Release Valve: Yes

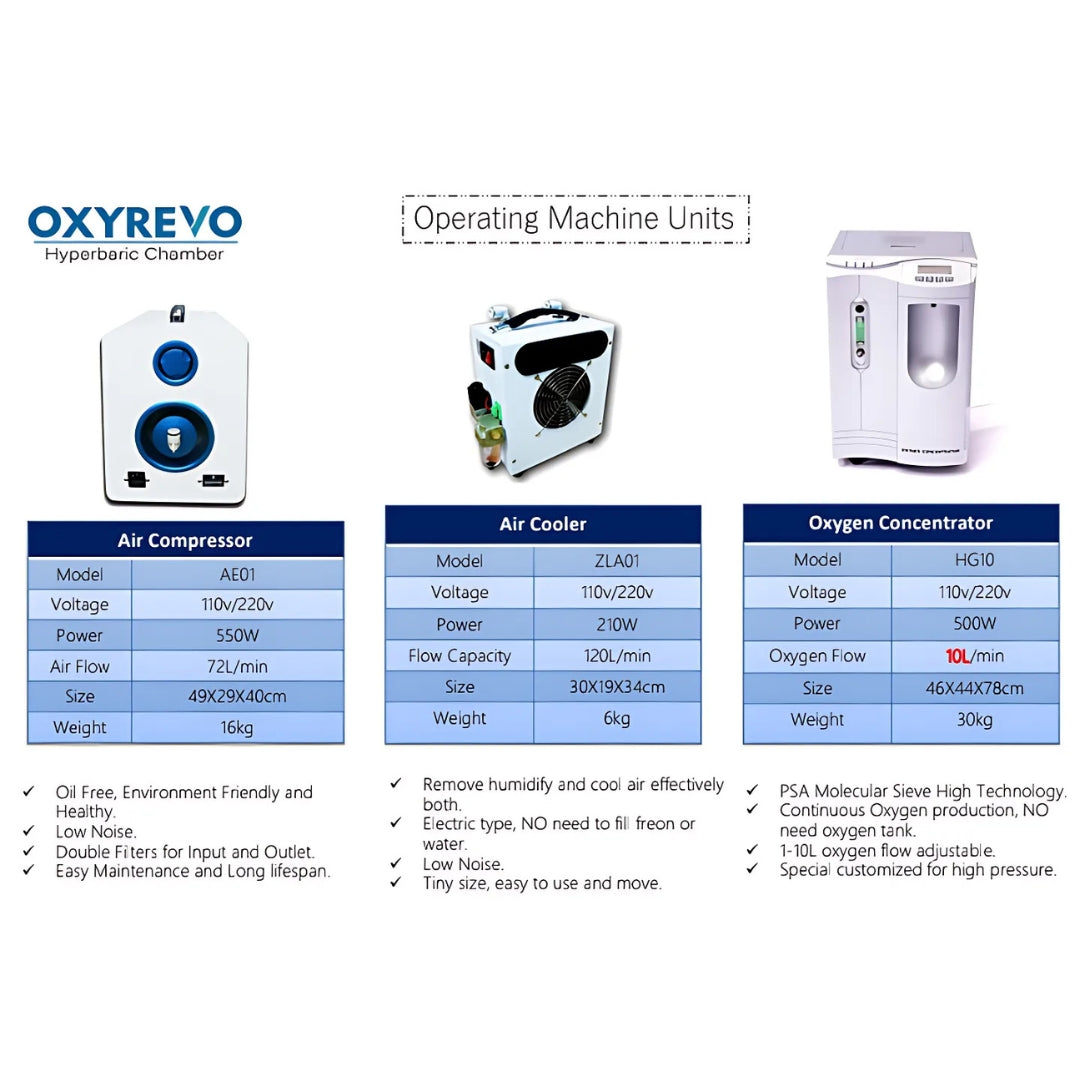

Standard Version – Operating Units:

Air Compressor:

• Type: Oil-free air compressor

• Voltage: 110V / 220V

• Power Consumption: 550W

• Airflow: 72 L/min

• Dimensions: 19.29" L × 11.42" W × 15.75" H

• Weight: 35 lbs

Air Cooler:

• Voltage: 110V / 220V

• Power Consumption: 210W

• Airflow: 120 L/min

• Dimensions: 11.81" L × 7.48" W × 13.39" H

• Weight: 13 lbs

Oxygen Concentrator:

• Oxygen Output: 10 L/min

• Oxygen Purity: Up to 90–97%

• Voltage: 110V / 220V

• Power Consumption: 500W

• Dimensions: 18.11" L × 17.32" W × 30.71" H

• Weight: 66 lbs

Operation Style:

• Separate operating units

• Manual control

• Lightweight and economical for transport

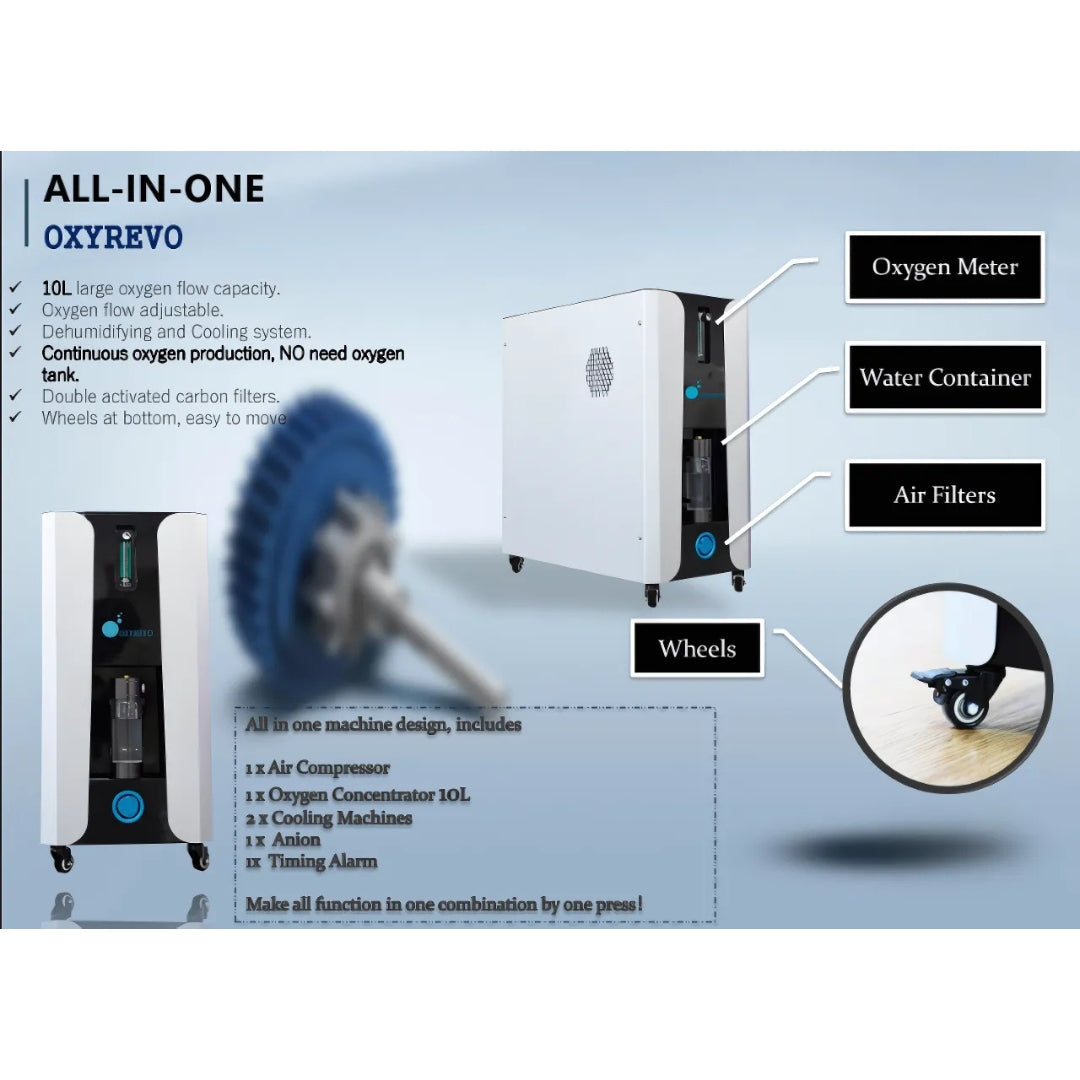

Pro Version – All-in-One Operating Unit:

• Integrated Components:

  • Air compressor

  • 10L oxygen concentrator

  • Dual cooling systems

  • Anion air purifier

  • Timing alarm

  • Oxygen concentration meter

  • Water container

  • Multi-stage air filtration

• Voltage: 110V / 220V

• Dimensions: 27.56" L × 13.78" W × 29.53" H

• Weight: 176.37 lbs

• Operation: One-touch activation with integrated control panel

• System Benefits:

  • Enhanced dehumidification and cooling

  • Continuous oxygen delivery

  • Quieter, more compact setup

• Optional Feature:

  • Nano Ion Disinfection technology

Optional Add-Ons (CONTACT US TO ORDER)

Red Light Therapy Panel (CUSTOM MADE TO ORDER)

• Red Light Wavelength: 660 nm

• Near Infrared Wavelength: 850 nm

• Power Supply: DC 24V

• Power Rating: 120W

• LED Count: 40 LEDs

• Panel Dimensions: 9.45" × 5.51" × 1.18"

Water Chiller AC System (CUSTOM MADE TO ORDER)

• Input Power: AC 220V / 50Hz

• Total Power: 230W – 900W (model dependent)

• Cooling Capacity: 1,875 BTU – 6,480 BTU

• Tank Capacity: 4–5 L (≈ 1.0 – 1.3 gal)

• Temperature Control Range: 14°F to –40°F (model dependent)

• Accuracy: ±1.8°F (±1°C)

• Display Resolution: 0.1°F (0.1°C)

• Flow Rate: 2.6 – 4.0 gal/min (10 – 15 L/min)

• Lift Height: 10 – 23 ft (3 – 7 m)

• Net Weight: 66 – 121 lbs (model dependent)

• Dimensions:

  • Small models: ~15.7" × 11" × 21"

  • Larger models: up to 18.5" × 14.5" × 26.8"

Durability Ratings

• Soft Chamber Capsule: 10,000 hours

• Air Compressor: 10,000 hours

• Cooling System: 10,000 hours

• Oxygen Concentrator: 5,000 hours

Warranty & Support

• Warranty Coverage:

  • 2-year comprehensive warranty

• Technical Support: Lifetime support included

• Warranty Service:

  • Free replacement parts with guided repair support

  • Full unit replacement if issue cannot be resolved
