Harvia Xenio Digital Sauna Heater Control Kit w/ WiFi Capability

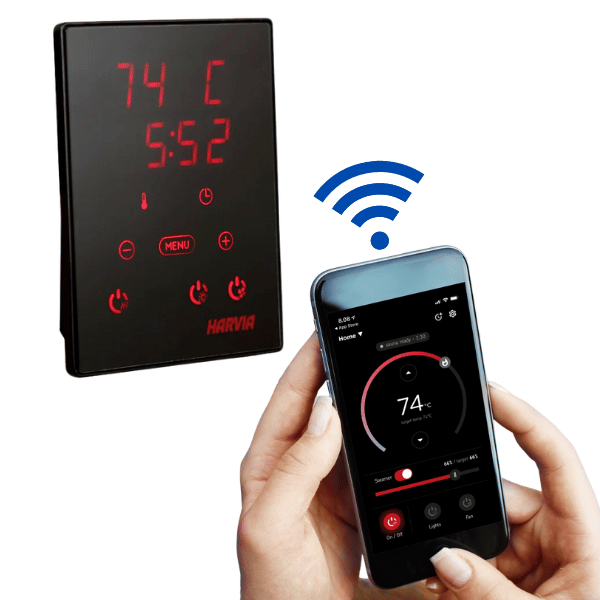

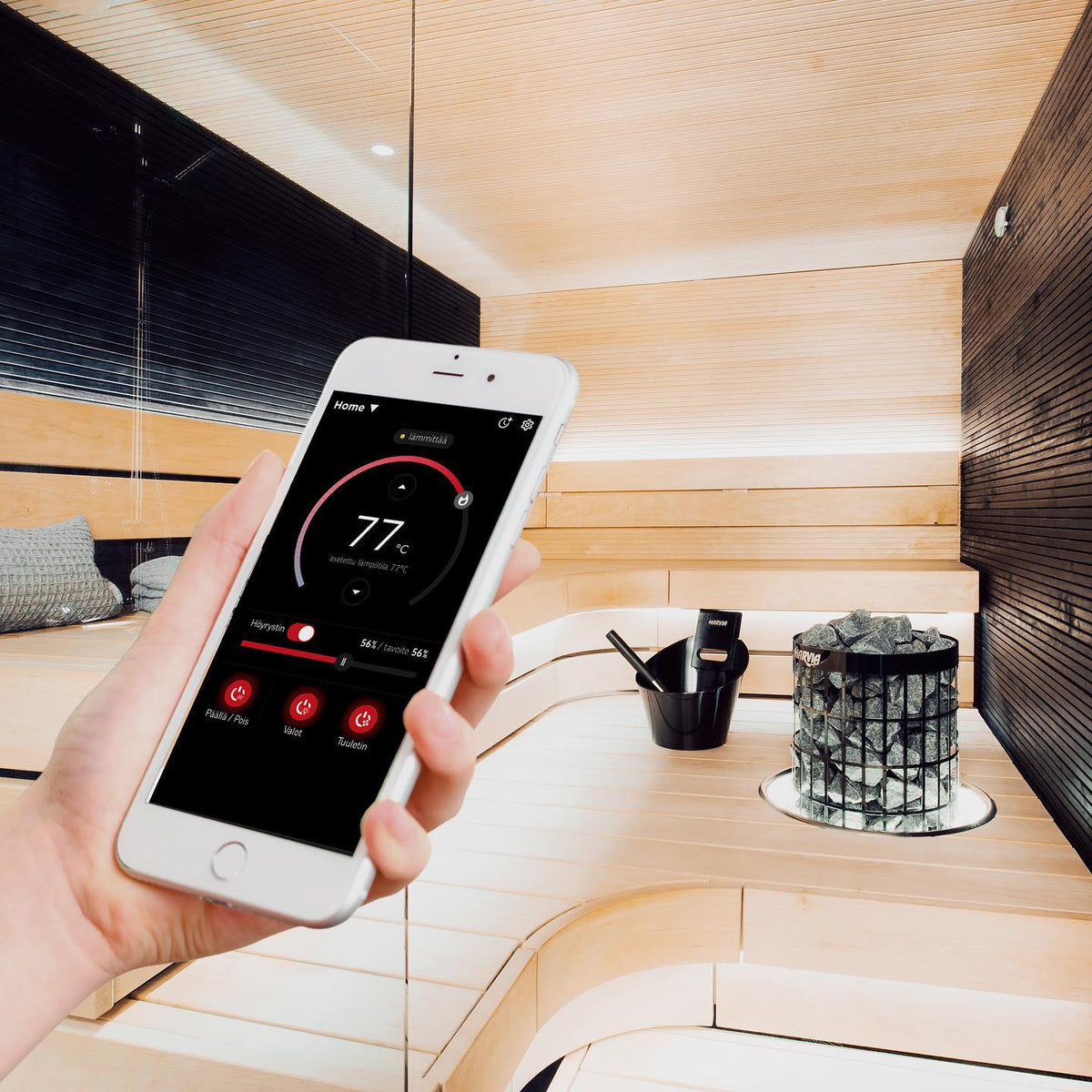

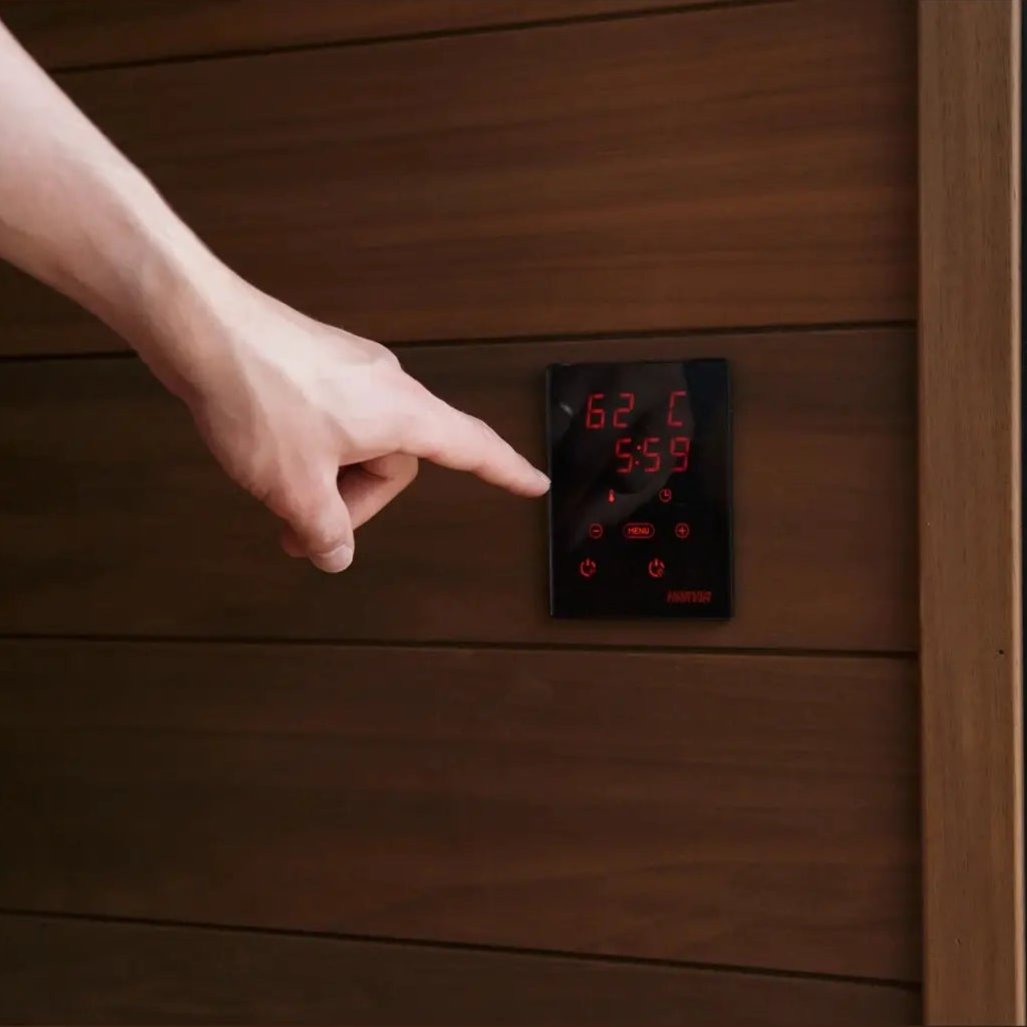

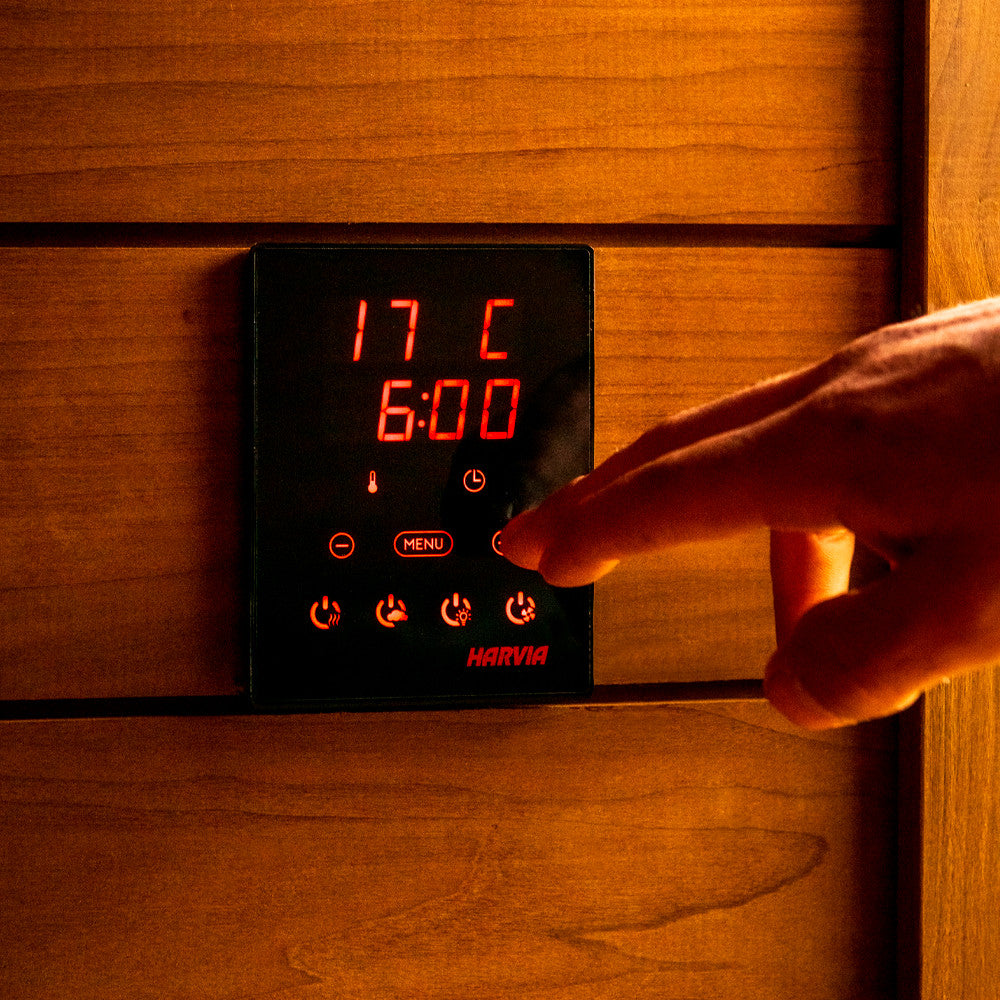

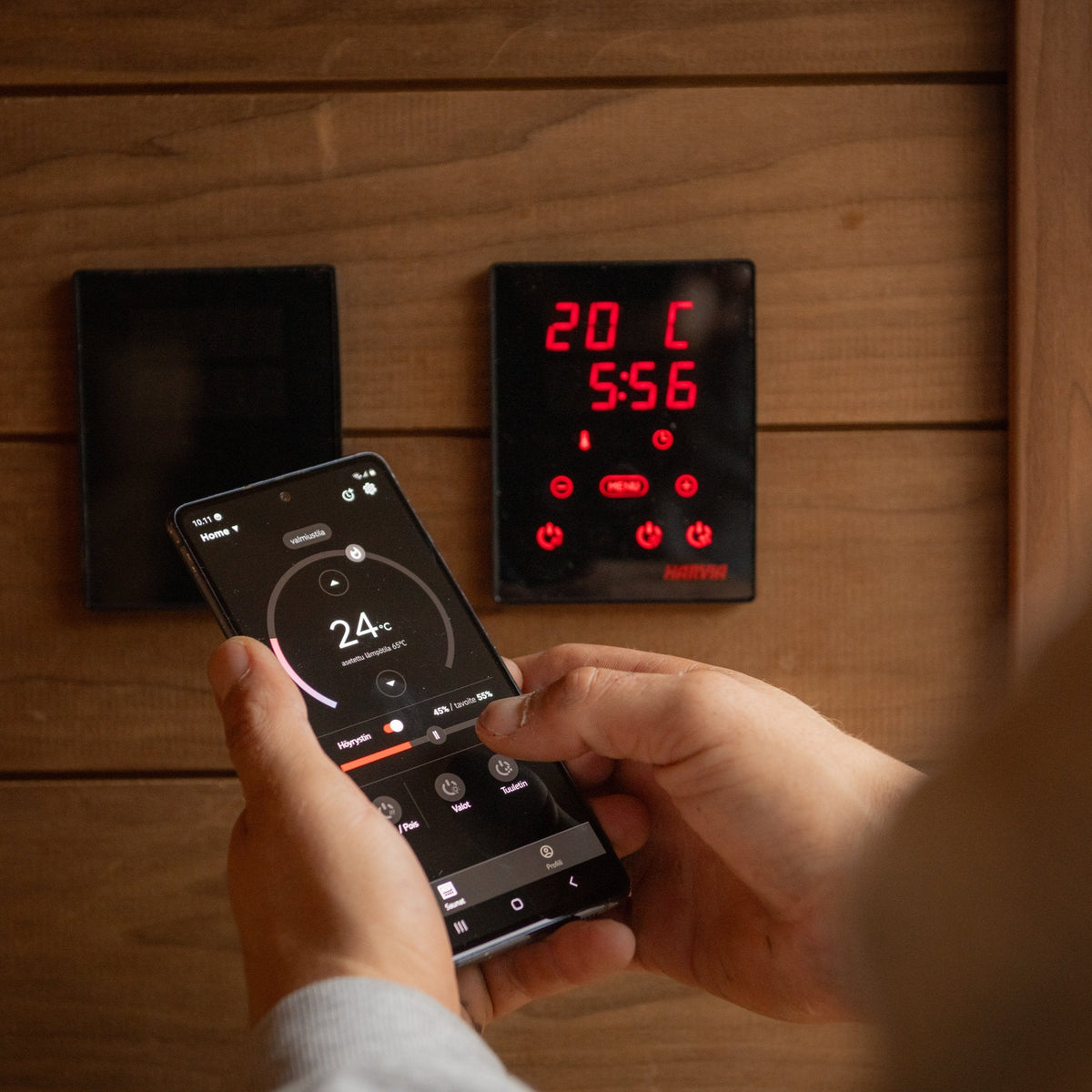

This WiFi sauna control panel allows you to control & monitor your electric sauna heater from anywhere via your mobile phone once you connect it to your WiFi network and install the MyHarvia mobile app. The stylishly small yet clear touch control panel is easy to install where you want it: in the sauna, the shower room, the dressing room, or even the living room. The control panel lets you see with just one look when your sauna is at the right temperature.
Features:
- Connects to your WiFi network and allows you to control sauna from your mobile phone with the MyHarvia app
- Turn on/off your sauna from anywhere

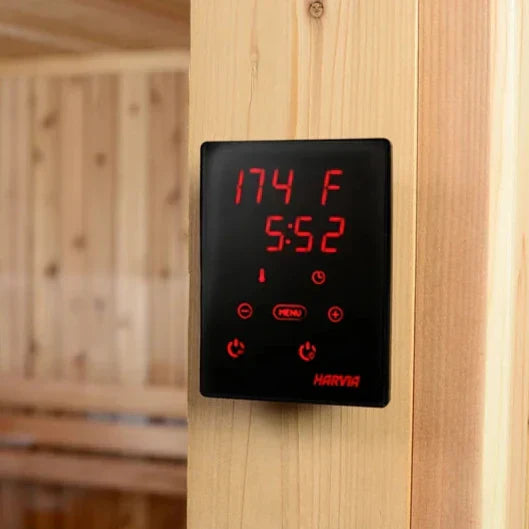

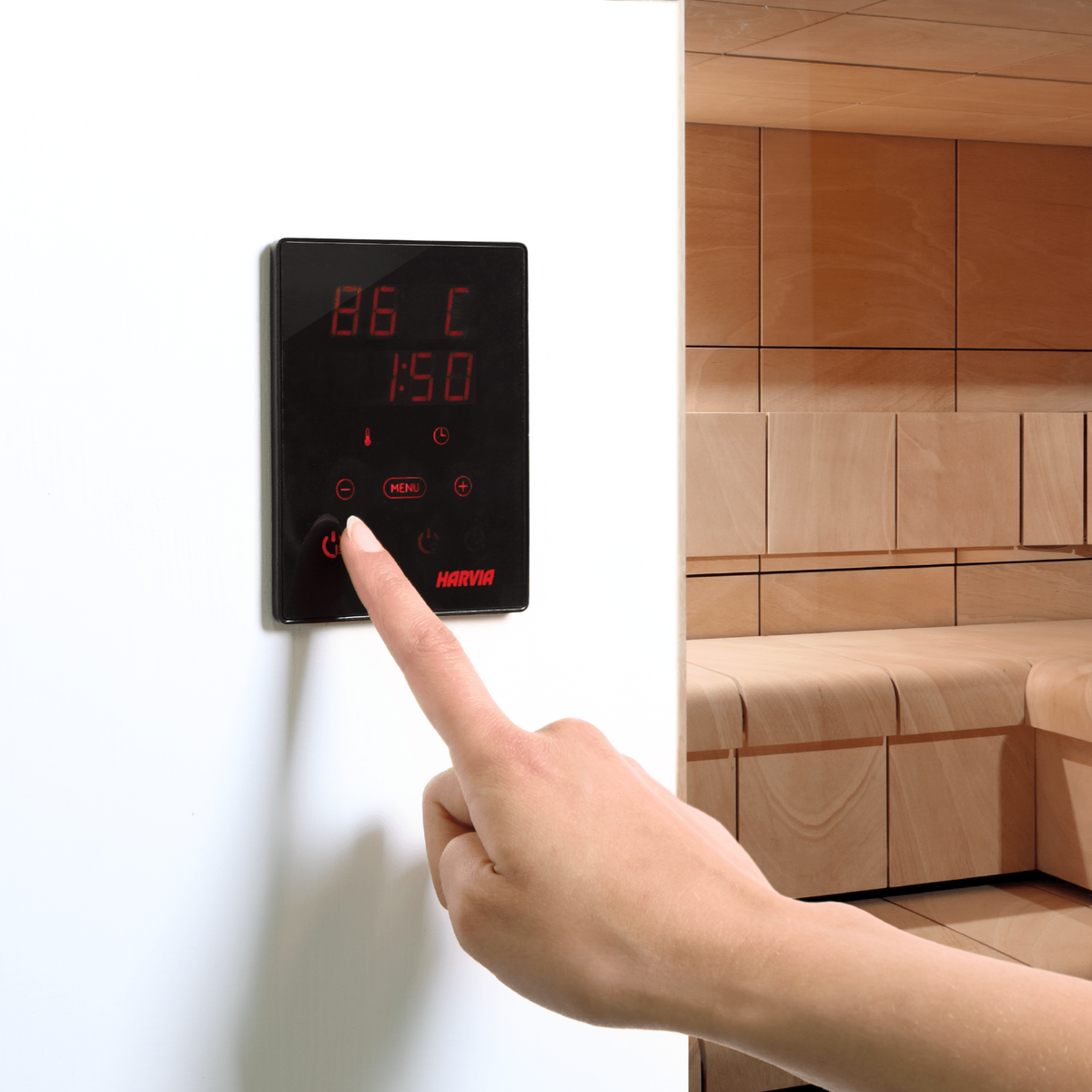

- Sleek digital panel that installs on wall
- Controls temp/humidity/lighting/fan (if available in your sauna)
- On-time feature
- Delayed start feature
- Week Clock
- Can be connected to unlimited amount of mobile devices
- 5 year service warranty
Specifications
Specifications
Harvia Xenio KIP Sauna Heater Control Kit
- Includes: CX170 + WiFi Upgrade (CX004WIFI)
- Voltage: 400 V
- Maximum output: 17kW
- Temperature adjustment range: 104-194F
- Pre-setting time adjustment range: 0-12 Hours
- Dimensions: 3.3"W x 4.3"H x 0.9"D
Harvia Xenio Club/Spirit/Cilindro/Virta Sauna Heater Control Kit
- Includes: CX30-U1-U3 + WiFi Upgrade (CX004WIFI)
- For the following heaters: 6kW Spirit/Virta/Cilindro & 10kW Club Sauna Heaters
- Includes: CX45-U1-U3 + WiFi Upgrade (CX004WIFI)
- For the following heaters: 8kW Spirit & 8/9/10.5kW Cilindro & 8/9/10.5/16/20kW Virta & 12.5/15kW Club Sauna Heaters
- Maximum output: 10.5 kW
- Temperature adjustment range: 104-194F
- Pre-setting time adjustment range: 0-12 Hours
- Dimensions: 3.3"W x 4.3"H x 0.9"D
Harvia Xenio Virta Combi Sauna Heater Control Kit
- Includes: CX30-U1-U3 + WiFi Upgrade (CX004WIFI)
- Power unit supply voltage: 240V/1PH
- Maximum output: 10.8kW
- Temperature adjustment range: 104-194F
- Pre-setting time adjustment range: 0-12 Hours
- Dimensions: 3.3"W x 4.3"H x 0.9"D
Xenio WiFi Upgrade Control Specs:
- SKU: CX004WIFI
- Dimensions: 3.34"W x 0.9"D x 4.3"H
- Power Consumption: Peak 2W, average 600mW
- Wifi Frequency Band: 2.4 GHz
- Supply: 12-24VDC
Installation Overview & Wiring Connections

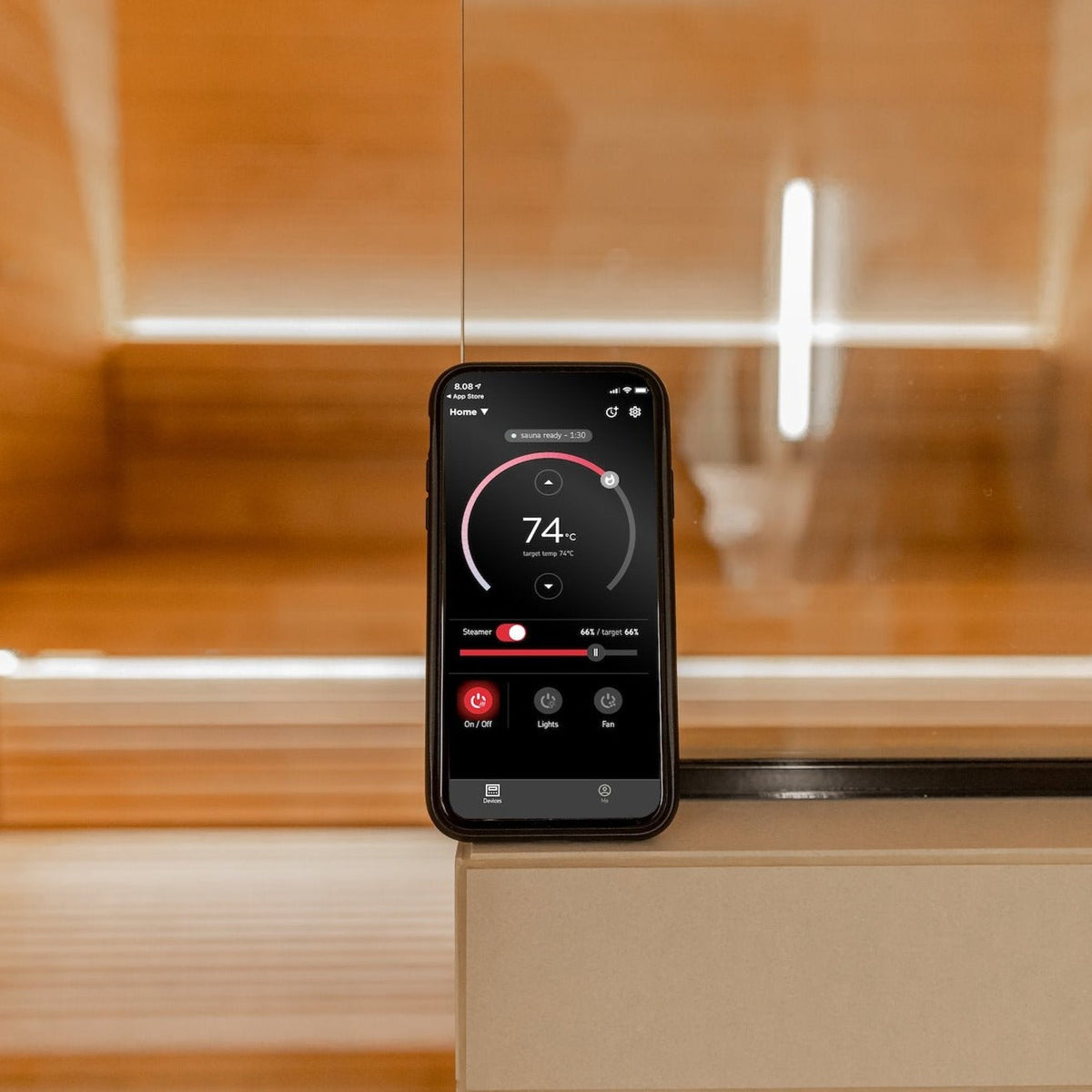

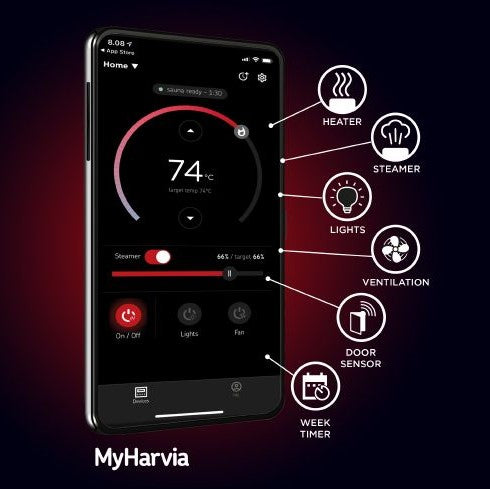

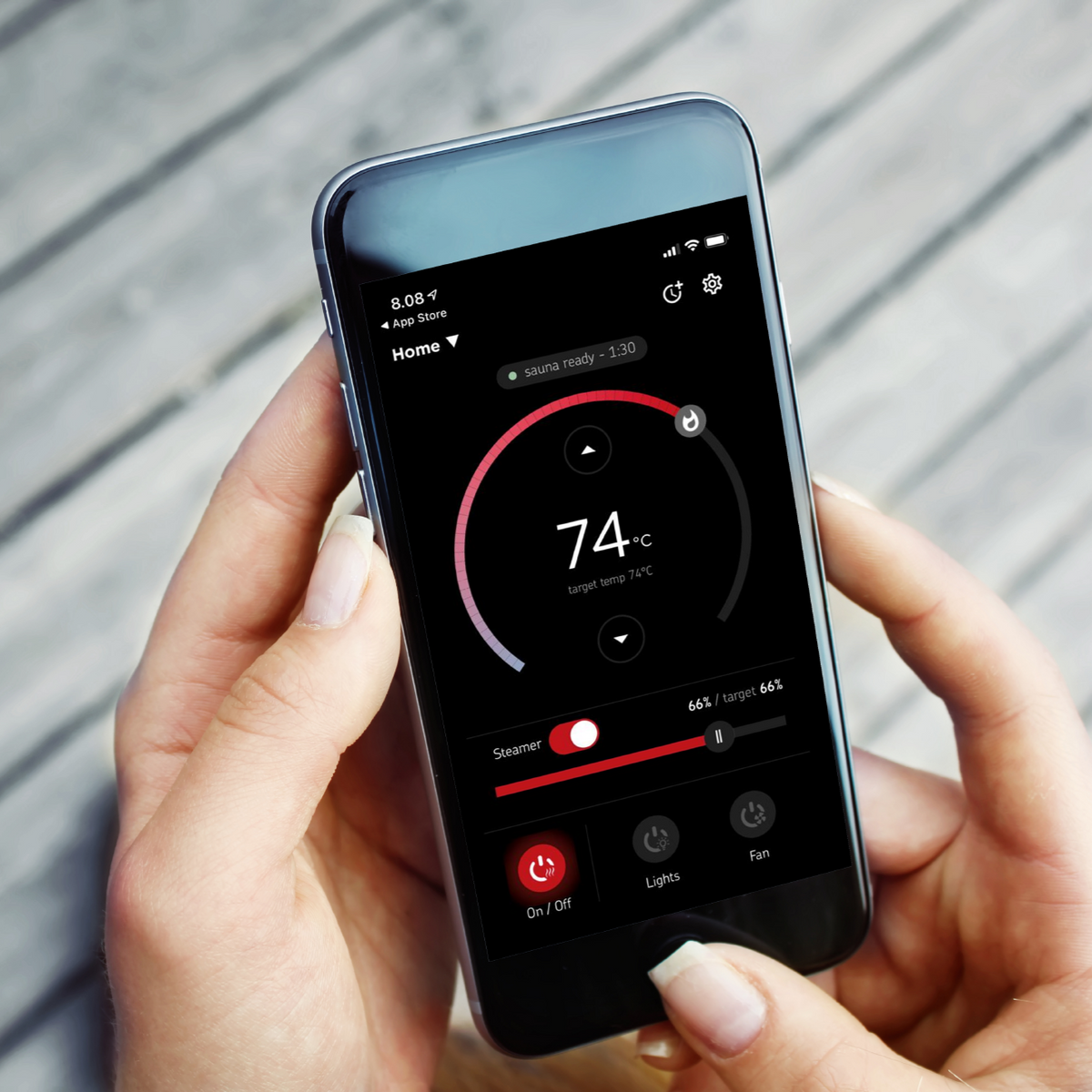

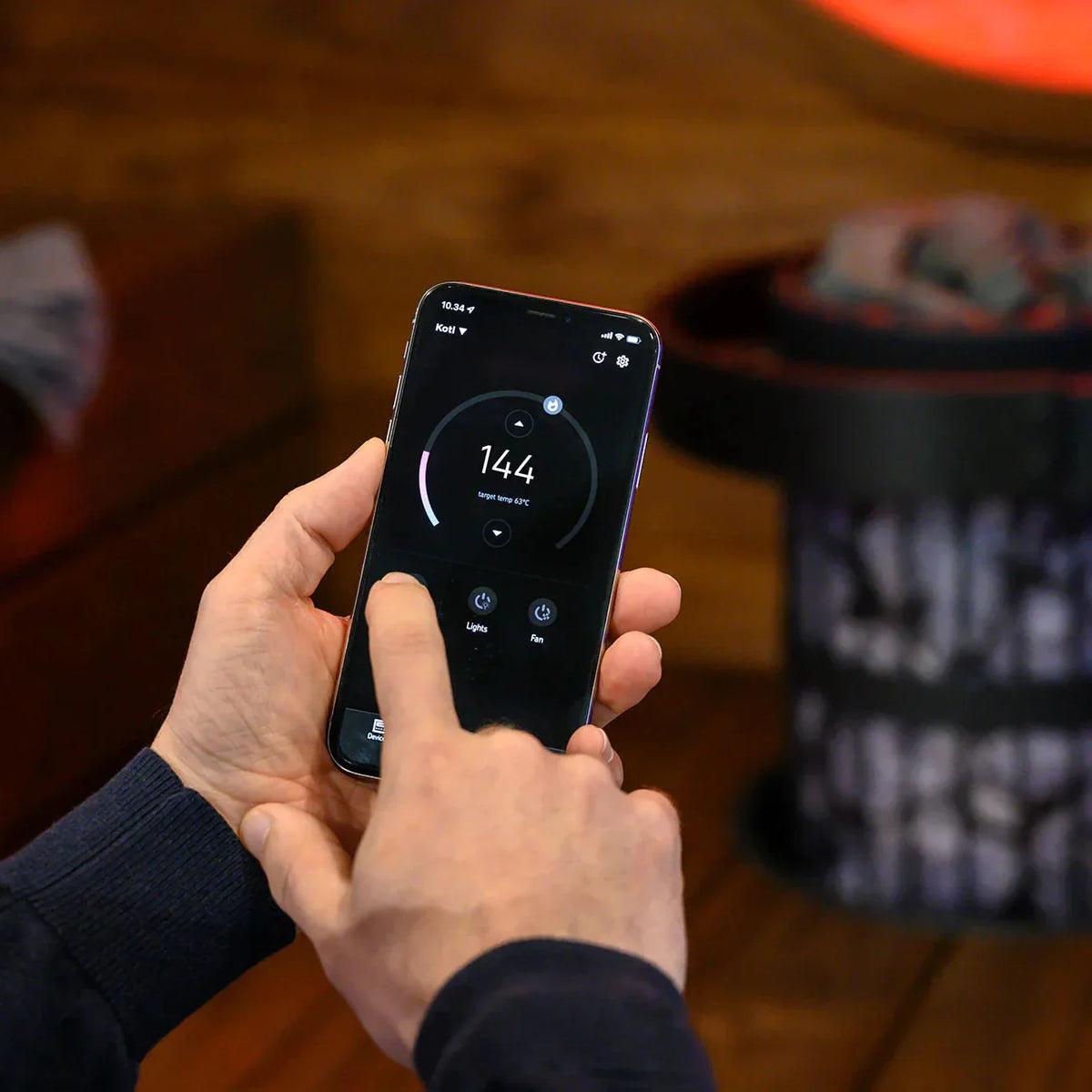

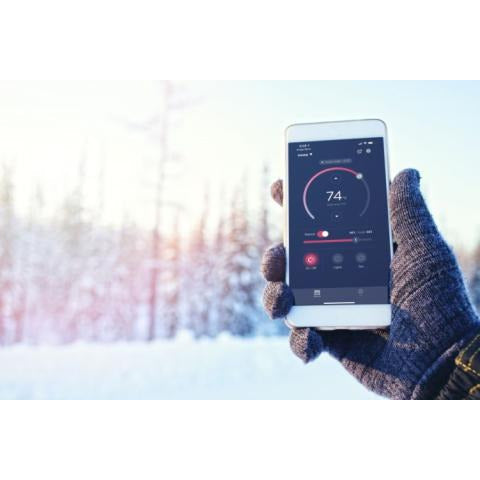

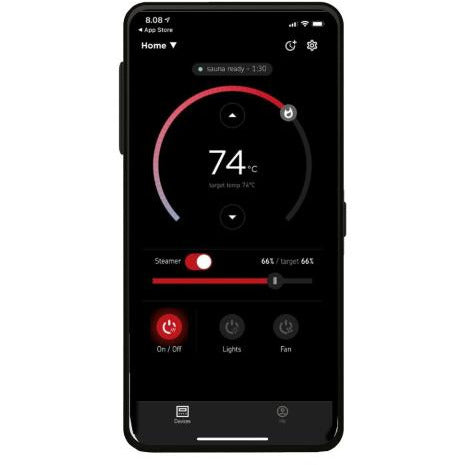

My Harvia Application
- Complete app guide can be found here
- Temperature adjustment range: 104-194F
- Humidity adjustment range: 20-80rH
- On timer: 1 hour duration
- Also Controls: Lighting/Fan
- Delayed Start Time: 0-12hr (For one heating or based on calendar)
- Weekly clock: Max 8 programs
Includes
- Xenio Digital Control Touch Screen Panel w/ WiFi Upgrade (see specifications tab for breakdown on each variant)
- Power Unit (to make electrical connections)
- Data Cable
- Temperature Sensor
- Installation and Operation Manual
- Limited Warranty
Manuals
KIP Control Manual | CX170
Club/Spirit/Cilindro/Virta Control Manual | CX30-U1-U3/CX45-U1-U3
Virta Combi Control Manual | CX30-U1-U3
Xenio WiFi Upgrade Manual | CX004WIFI
