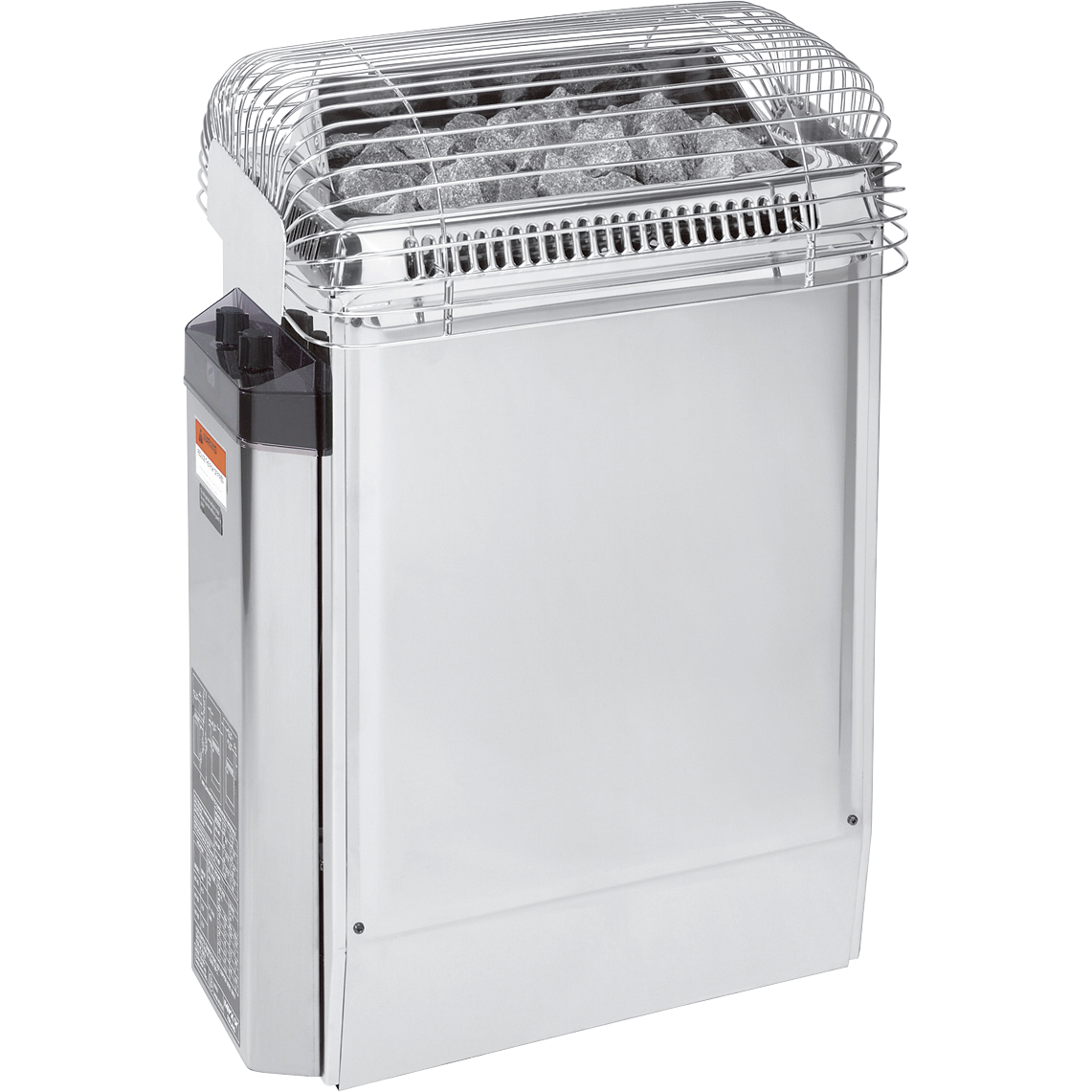

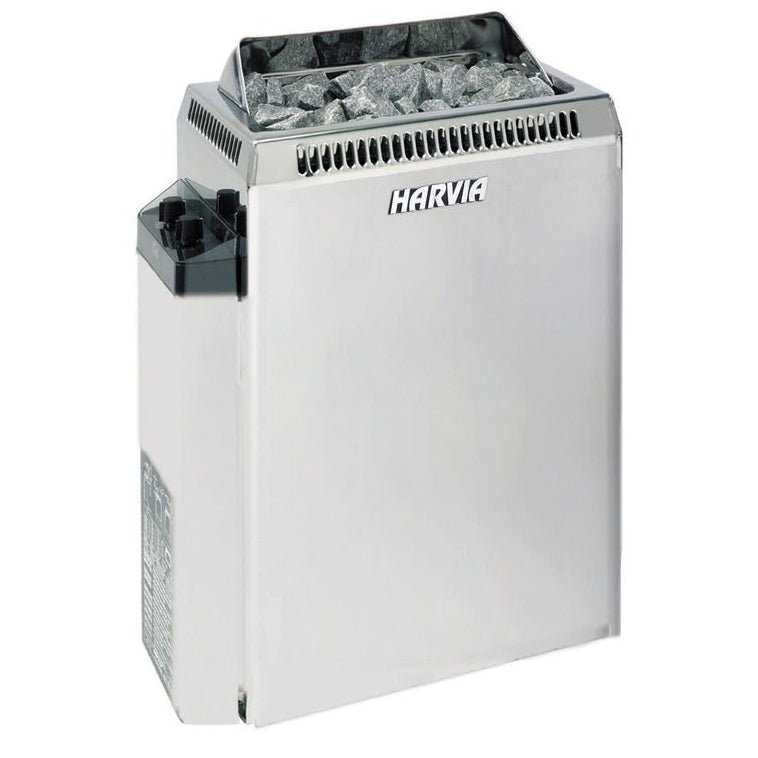

Harvia TopClass 4.5/6/8kW 240V Electric Sauna Heater w/ Built-in Controls
Harvia TopClass 4.5/6/8kW Electric Sauna Heater w/ Built-in Controls | JKV452401/JKV602401/JKV802401

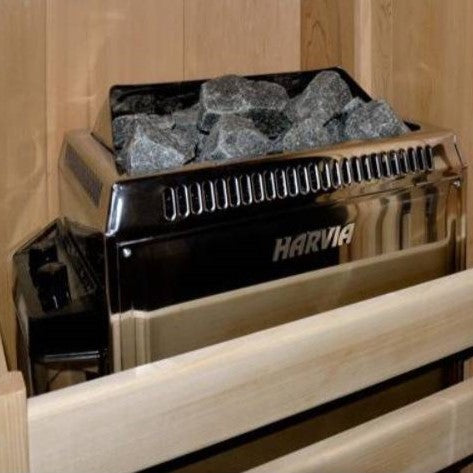

This is a user-friendly heater built out of durable and corrosion-resistant stainless steel. The illuminated control panel can be placed on either the right or left side of the heater towards the top section, which makes it easy to access the switches even in the dim lighting of a sauna room. It comes in three ratings which are capable of heating up to 425 cubic feet.
Features:
- For sauna rooms from 100 to 425 cu. ft.
- Temperature Range: 104F - 194F
- 3 ratings: 4.5/6.0/8.0 kW
- Wall-mounted design
- Stainless Steel construction
- Built-in controls mounted on left or right side
- Illuminated control panel
- 8-Hour delayed start timer
- 60-minute shutoff timer
- Designed, engineered, and made in Finland
Includes
Included:
- Sauna Heater
- Installation and Operation Manual
- 2-Year Warranty (Consumer use)
Add-Ons
The following options should be considered with your purchase:
- Sauna stones: 45 lbs (1 Box-AC3000)
Specifications
Specification:
- Dimensions: 17"W (431mm) x 11"D (279mm) x 24"H (609mm)
- Voltage/Phase: 240V/1PH
- Heater Weight: 50 lbs
TopClass-4.5kW
- ROOM VOLUME: 100 - 210 CU. FT.
- AMPS: 18.8
- Wire Size: 10
TopClass-6.0kW
- ROOM VOLUME: 170 - 300 CU. FT.
- AMPS: 25
- Wire Size: 10
TopClass-8.0kW
- ROOM VOLUME: 250 - 425 CU. FT.
- AMPS: 33.3
- Wire Size: 8
Safety Clearances
4.5kW Model: KV45
- Safety Distance A (side panel): 1.38 inches
- Safety Distance B (lower bench): 0.20 inches
- Safety Distance C (side panel): 4.72 inches
- Safety Distance D (lower bench): 1.18 inches
- Safety Distance E (upper bench): 3.15 inches
- Safety Distance F (ceiling): 43.31 inches
- Safety Distance G (floor): 5.91 inches
6kW Model: KV60
- Safety Distance A (side panel): 1.97 inches
- Safety Distance B (lower bench): 0.20 inches
- Safety Distance C (side panel): 4.72 inches
- Safety Distance D (lower bench): 1.18 inches
- Safety Distance E (upper bench): 4.72 inches
- Safety Distance F (ceiling): 43.31 inches
- Safety Distance G (floor): 5.91 inches
8kW Model: KV80
- Safety Distance A (side panel): 3.94 inches
- Safety Distance B (lower bench): 0.20 inches
- Safety Distance C (side panel): 4.72 inches
- Safety Distance D (lower bench): 1.18 inches
- Safety Distance E (upper bench): 5.91 inches
- Safety Distance F (ceiling): 43.31 inches
- Safety Distance G (floor): 5.91 inches
