Harvia PRO 20 24kW Wood Burning Stove Package w/ Chimney Kit, Protective Bedding, Sheath, Stones

Harvia PRO 20 24kW Wood Burning Stove Package w/ Chimney Kit, Protective Bedding, Sheath, Stones

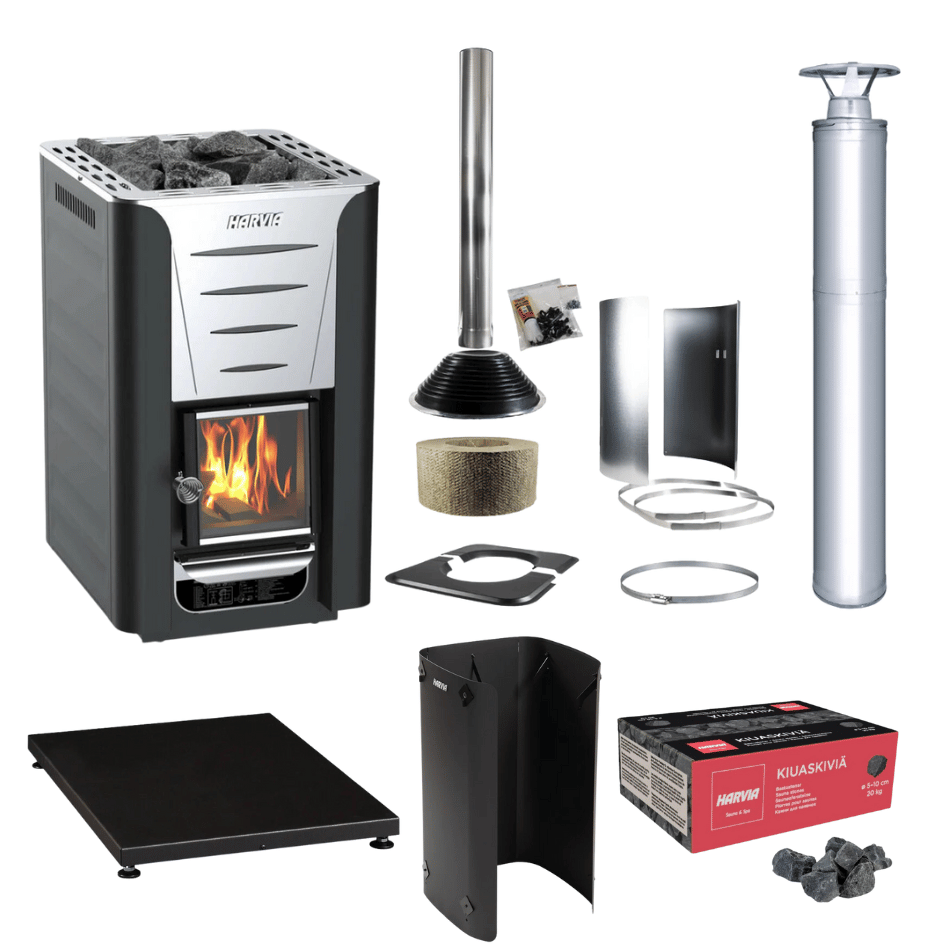

This carefully crafted package contains the Harvia PRO 20 Stove, Protective Bedding, Protective Sheath, Stainless Steel Chimney Kit, and Sauna Stones. The Harvia 20 Pro stove is designed for medium-sized saunas. Thanks to the large stone compartment of the stove, the steam is as pleasant and hearty as you can hope for. The fire glowing behind the cast-iron-framed glass door adds to the atmosphere of the sauna. The wood-burning heater features a cast-iron glass door and an air-flow spoiler made of stainless steel. The adjustable legs make the wood-burning heater easy to place in the sauna.

Features:

• For sauna rooms from 353 to 706 cu. ft.
• 24kW
• 88 pound stone capacity
• Steel construction
• Cast-iron-framed glass door
• Floor Installation with adjustable feet

• Ash Box
• Flue connections on top and rear
• Designed, engineered, and made in Finland
• Dimensions: 17" W (430mm) x 20" D (510mm) x 30" H (760mm)
• 2-year warranty

Specification

Stove Specifications:

Kilowatt Rating: 24 kW
Primary Fuel: Wood
Cubic Feet Capacity:

• Minimum: 283
• Maximum: 706

Firewood Specifications:

• Maximum Length: 15" (390mm)
• Diameter Range: 3-5" (80-150mm)

Stove Weight:

• Heater Weight: 127 lbs
• Shipping Weight (with Sauna Stones): 215 lbs

Stove Dimensions:

• Width: 17" (430mm)
• Depth: 20" (510mm)
• Height: 30" (760mm)

Flue Connection Location: Back, Top
Minimum Room Height: 82.2" (2090mm)

Protective Bedding:

• Black aluminum-zinc coated steel
• Adjustable feet
• Dimensions: 17.7" W (450MM) X 26" D (665MM) X 2.4"-3" H (60-75MM)
• Weight: 23.5 lbs
• Can be installed on a sloping floor
• 2-year warranty

Protective Sheath:

• Reduces safety distance to combustible materials to 2.5"
• Stainless Steel with a black finish
• Weight: 17.5 lbs

• Dimensions: 19.6" W (497mm) x 22.4" D (568mm) x 32" H (812mm)
• 2-Year warranty

Chimney Kit:

• Exits stove vertically and extends through ceiling/roof

• Polished Stainless Steel

• Touch protection is not needed if installed in a sauna

• Sootfire resistant

• Freeze thaw resistant

• Easily extended by purchasing either single-wall "smoke pipe" or insulated, double-wall "chimney" extensions

• Total height: 7 3/4 ft + rain cap

• Made in Finland

• 2 year warranty (Consumer use)

• Weight: 49 lbs

These extensions can be used to extend the length of the chimney:

• Harvia 3.3ft Sauna Stove Chimney Extension Stainless Steel | WHP1000
• Harvia 1.64ft Sauna Stove Chimney Extension Stainless Steel | WHP500
• Harvia 3.3ft Smoke Pipe 4.5" diameter-Stainless Steel | WZ115100
• Harvia 1.64ft Smoke Pipe 4.5" diameter-Stainless Steel | WZ115050

Sauna Stones:

• 2 boxes (88 lbs)
• Olivine diabase sauna stones
• Subvolcanic rock mined in Western Finland
• Split-Face
• Durable with high-heat capacity
• Stones range from 4" to 6" (10-15 cm)

Safety Distances:

Includes

Includes:

• Pro 20 Sauna Stove
• 2 boxes of Harvia stones 88 lbs
• Protective Bedding (to protect combustible floor material)
• Protective Sheath Panel (reduces safety distance to combustible materials)
• Chimney Kit (everything you need to safely exhaust)
• 3.1ft (1m) + 1.55 ft (0.5m) Double-wall, insulated Chimney pipe riveted together
• 3.1ft (1m) Single-wall, non-insulated Smoke Pipe that can be cut to desired length
• Rain Cap
• Rubber Rain Flange to seal off to outer roof surface
• Lead-through insulation and protector shield
• Lead-through flange to cover the interior ceiling opening
• Clamps
• Installation and operation manual

• 2 year warranty
