Harvia M3 16.5kW Wood Burning Stove Package w/ Chimney Kit, Protective Bedding, Sheath, Stones

Harvia M3 16.5kW Wood Burning Stove Package w/ Chimney Kit, Protective Bedding, Sheath, Stones

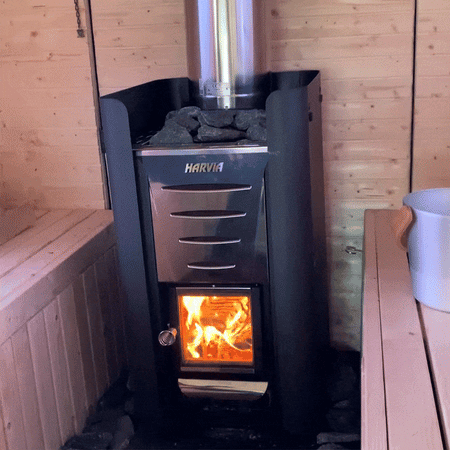

Sit back, relax and revel in the white-hot crackling fire taking your sauna up to over 200º F. Primitive in concept with modern design cues, the M3 Wood Burning Sauna Stove washes away your stress while you stare into the fire, creating a level of serenity and calm you can't achieve with any other type of sauna stove. It truly takes your outdoor sauna to the next level.

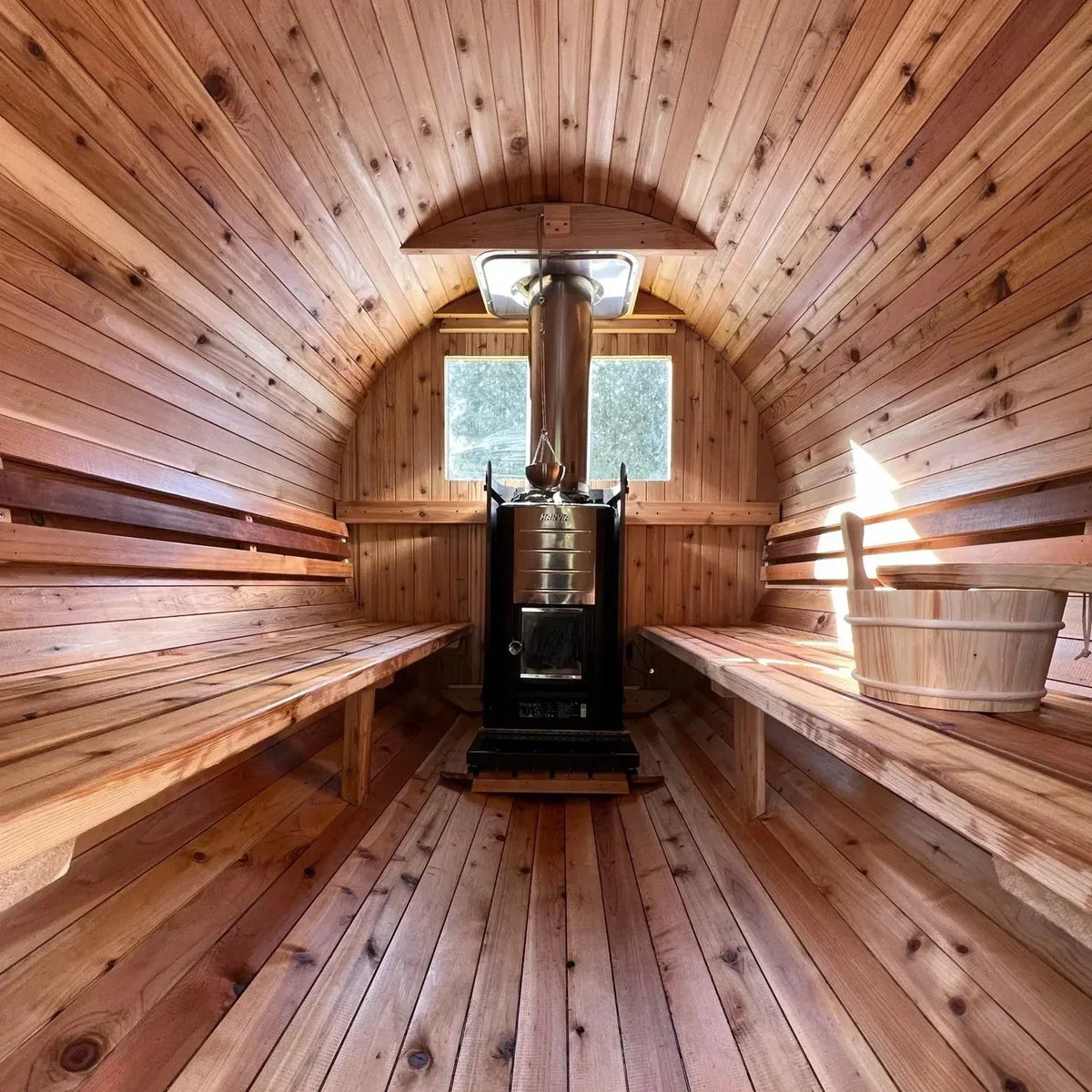

The Harvia M3 wood-burning heater has a classic design and is suitable for small-medium saunas up to 459 cubic feet. The even heat and efficient air circulation guarantees a relaxing and comfortable sauna session.

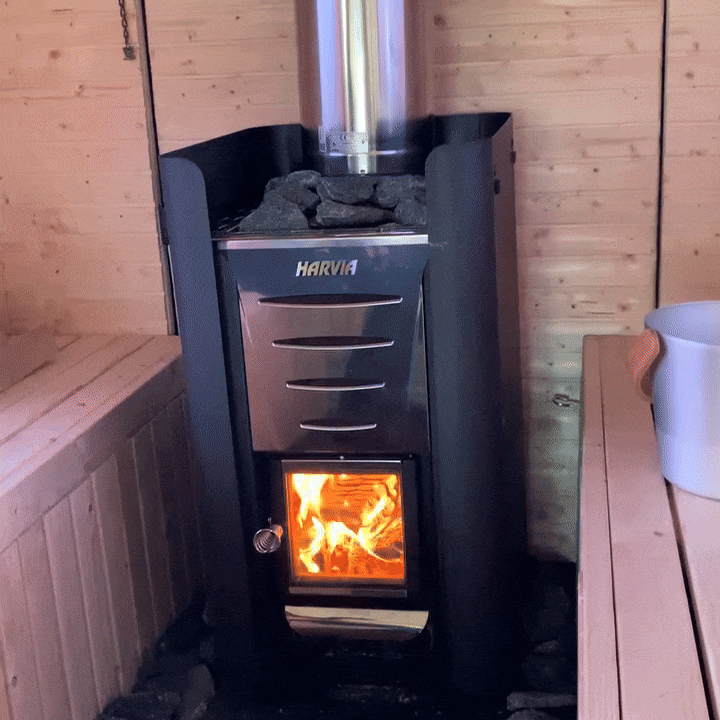

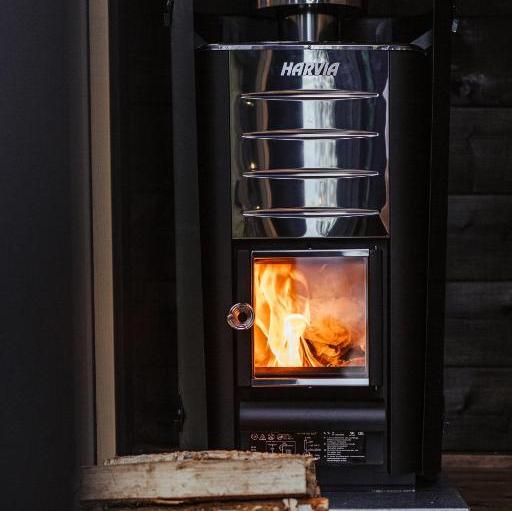

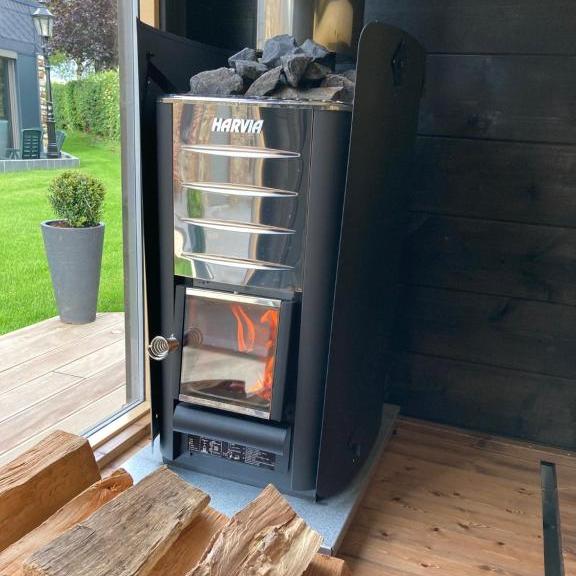

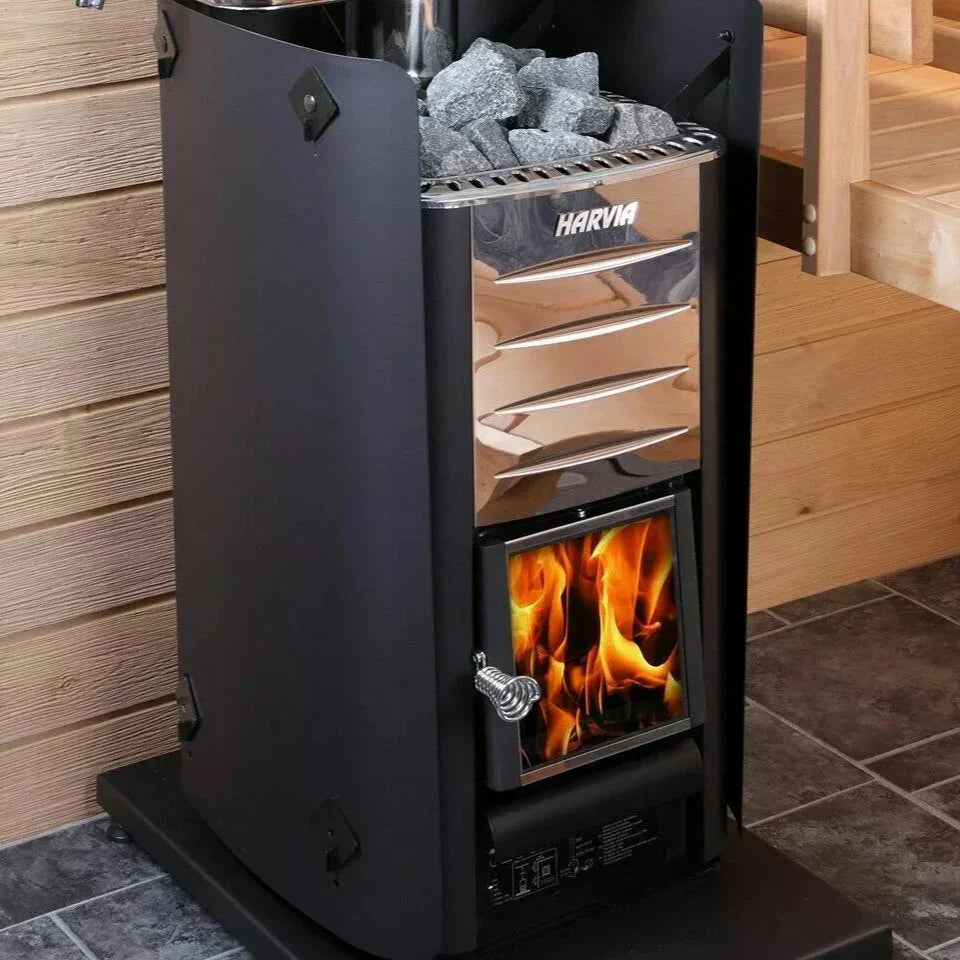

The Harvia M3 is equipped with a glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The color of the wood-burning heater is elegant graphite black and it has a stainless steel air-flow spoiler.

This kit includes a stove, a protective heat shield for the wall, benches and floor, a chimney for out the roof, and sauna stones.

Features:

• For sauna rooms from 212 to 459 cu. ft.
• 16.5 kW

• 66 pound stone capacity
• Stainless steel housing

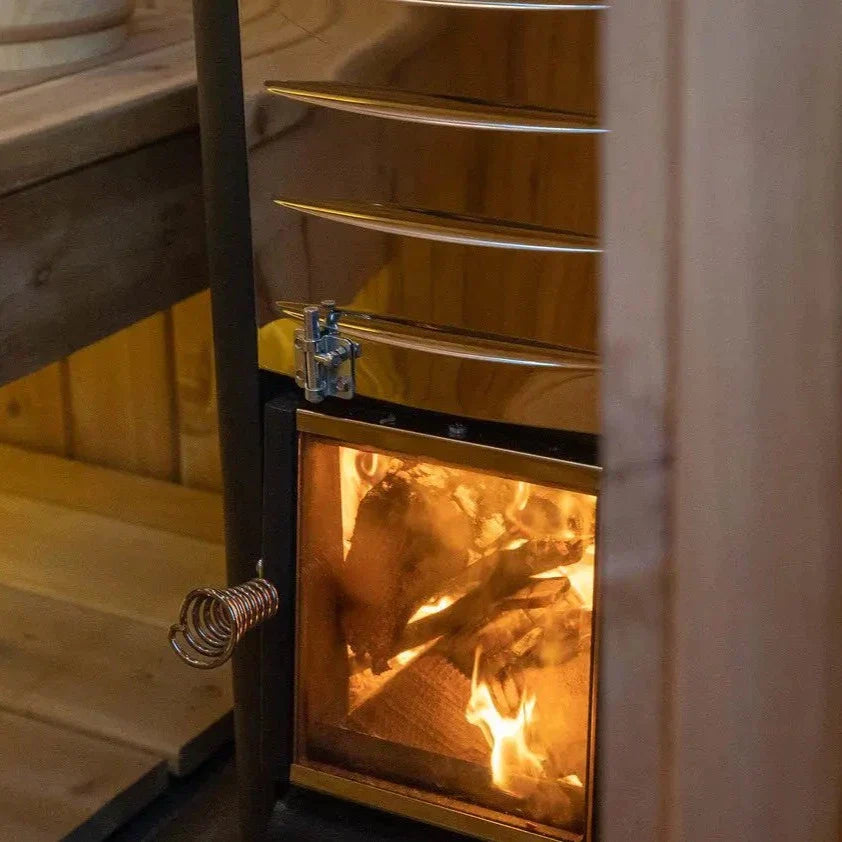

• Cast-iron-framed glass door
• Floor Installation with adjustable feet
• Ash Box

• Designed, engineered, and made in Finland
• 2-year manufacturers warranty

Specifications

Stove Specifications:

Kilowatt Rating: 16.5 KW
Primary Fuel: Wood

Firewood Specifications:

• Maximum Length: 13.7" (350mm)
• Diameter Range: 3 - 6" (80 - 150mm)

Cubic Feet Capacity:

• Minimum: 212 CF
• Maximum: 459 CF

Minimum Room Height: 75.4" (1915mm)

Stove Weight:

• Heater Weight: 99 lbs (44.2 kg)
• Shipping Weight (with Sauna Stones): 164 lbs (74.2 kg)

Stove Dimensions:

• Width: 15.3" (390mm)
• Depth: 17.7" (450mm)
• Height: 28" (715mm)

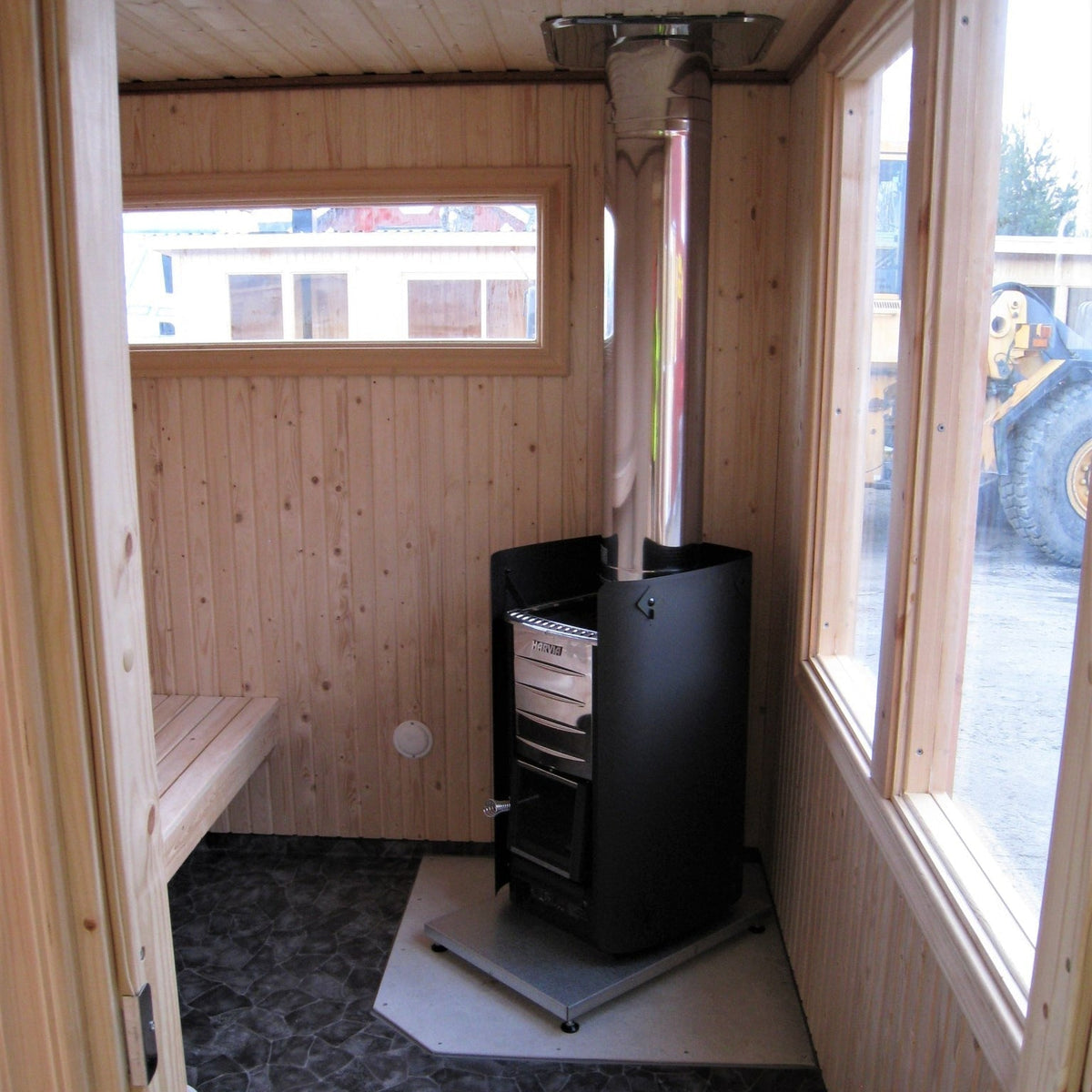

Protective Bedding:

• Black aluminum-zinc coated steel
• Adjustable feet
• Dimensions: 17.7" W (450MM) X 26" D (665MM) X 2.4"-3" H (60-75MM)
• Weight: 23.5 lbs
• Can be installed on a sloping floor
• 2-year warranty

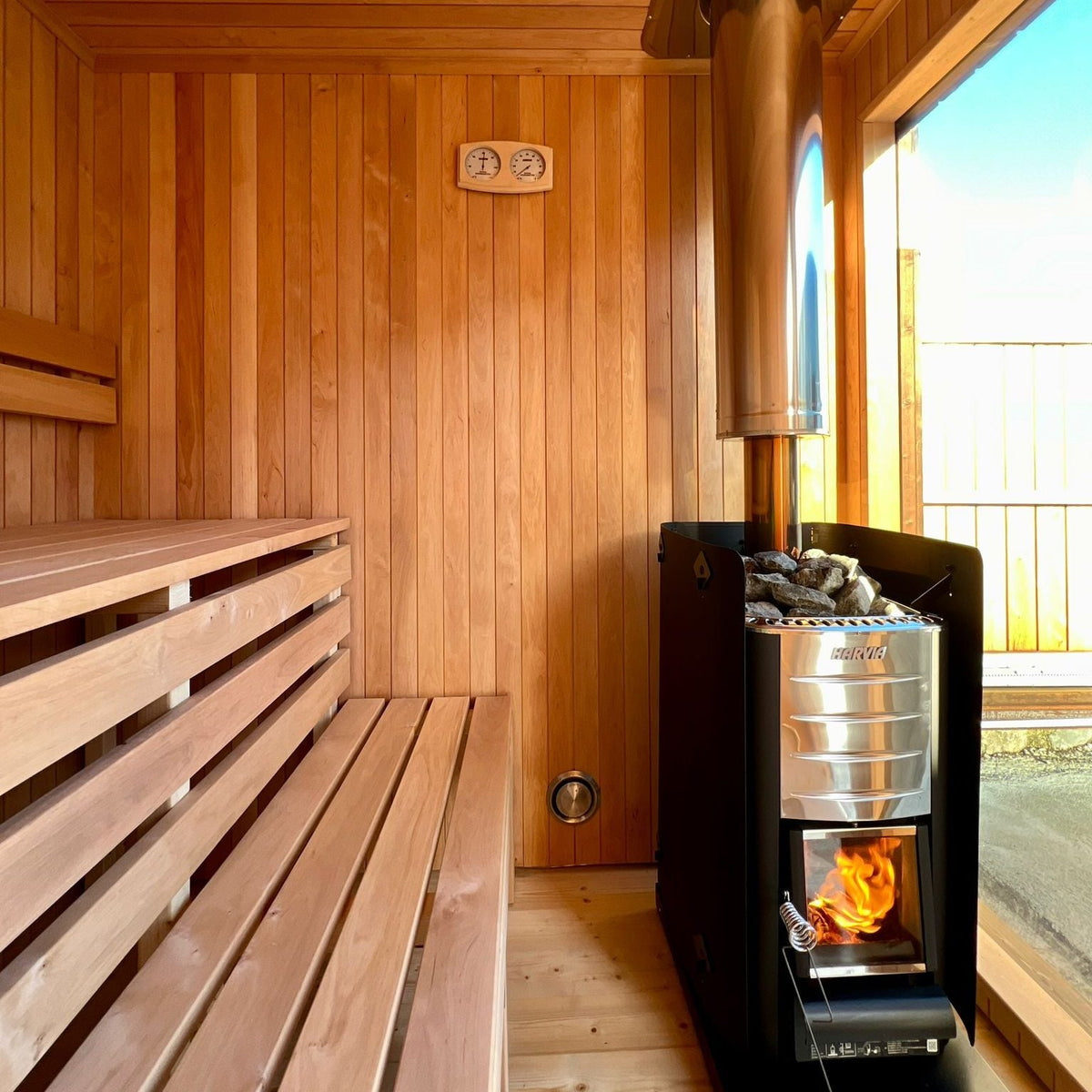

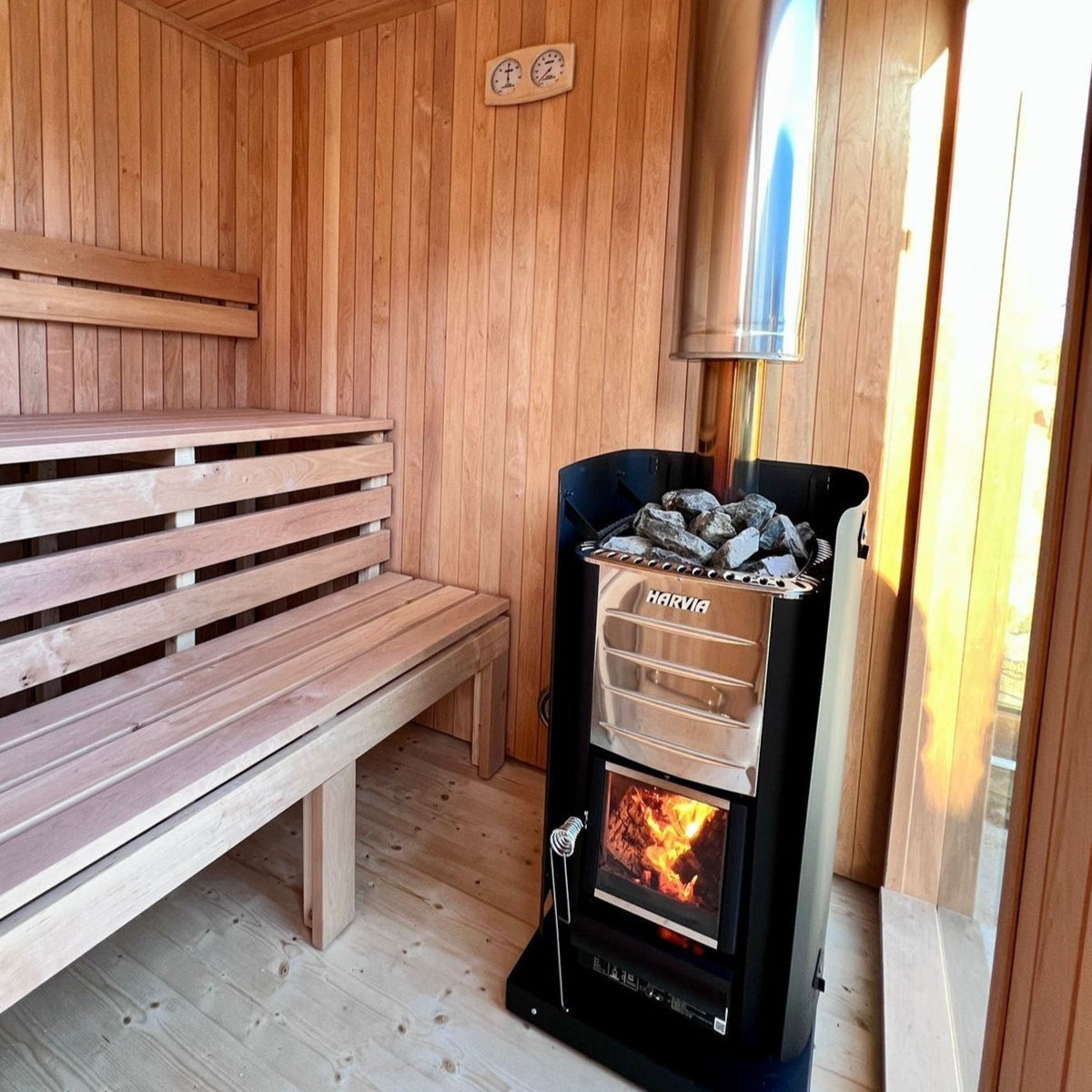

Protective Sheath:

• Reduces safety distance to combustible materials to 2"
• Stainless Steel with a black finish
• Weight: 14 lbs

• Dimensions: 17.9"W (454mm) x 18.9"D (480mm) x 31.5"H (800mm)
• 2-Year warranty

Chimney Kit:

• Exits stove vertically and extends through ceiling/roof

• Polished Stainless Steel

• Touch protection is not needed if installed in a sauna

• Sootfire resistant

• Freeze thaw resistant

• Easily extended by purchasing either single-wall "smoke pipe" or insulated, double-wall "chimney" extensions

• Total height: 7 3/4 ft + rain cap

• Made in Finland

• 2 year warranty (Consumer use)

• Weight: 49 lbs

These extensions can be used to extend the length of the chimney:

• Harvia 3.3ft Sauna Stove Chimney Extension Stainless Steel | WHP1000
• Harvia 1.64ft Sauna Stove Chimney Extension Stainless Steel | WHP500
• Harvia 3.3ft Smoke Pipe 4.5" diameter-Stainless Steel | WZ115100
• Harvia 1.64ft Smoke Pipe 4.5" diameter-Stainless Steel | WZ115050

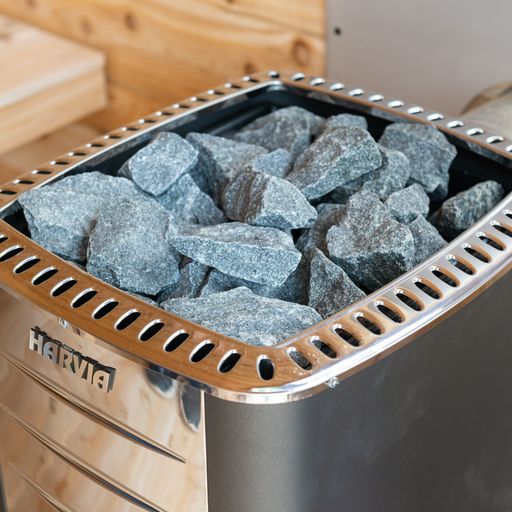

Sauna Stones:

• 2 boxes (88 lbs)
• Olivine diabase sauna stones
• Subvolcanic rock mined in Western Finland
• Split-Face
• Durable with high-heat capacity
• Stones range from 4" to 6" (10-15 cm)

Safety Distances:

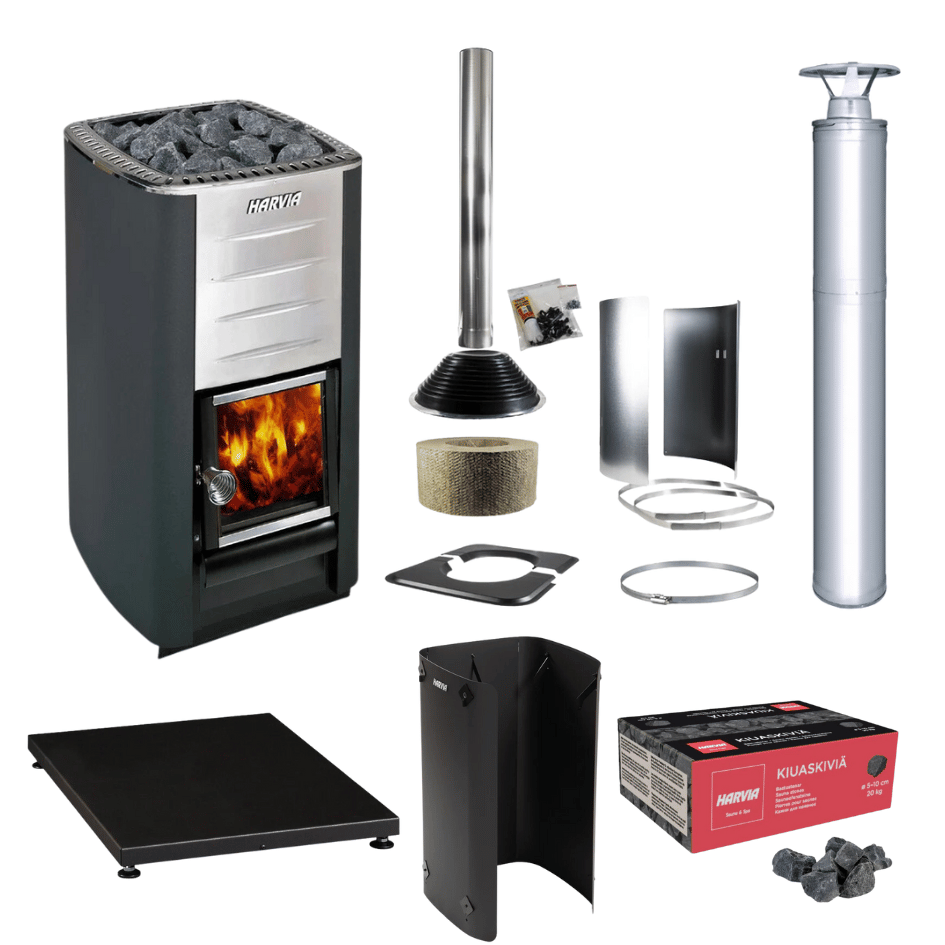

Includes

Included:

• Sauna Stove
• 2 boxes of Harvia stones 66 lbs
• Protective Bedding (to protect combustible floor material)

• Protective Sheath Panel (reduces safety distance to combustible materials)
• Chimney Kit (everything you need to safely exhaust)
• 3.1ft (1m) + 1.55 ft (0.5m) Double-wall, insulated Chimney pipe riveted together
• 3.1ft (1m) Single-wall, non-insulated Smoke Pipe that can be cut to desired length
• Rain Cap
• Rubber Rain Flange to seal off to outer roof surface
• Lead-through insulation and protector shield
• Lead-through flange to cover the interior ceiling opening
• Clamps
• Installation and operation manual
• 2 year manufacturers warranty
