Harvia Legend 300 Duo 23.5kW Wood Burning Stove Package w/ Chimney Kit, Rock Cage, Protective Bedding, Protective Sheath, Stones

Harvia Legend 300 Duo 23.5kW Wood Burning Stove Package w/ Chimney Kit, Rock Cage, Protective Bedding, Protective Sheath, Stones

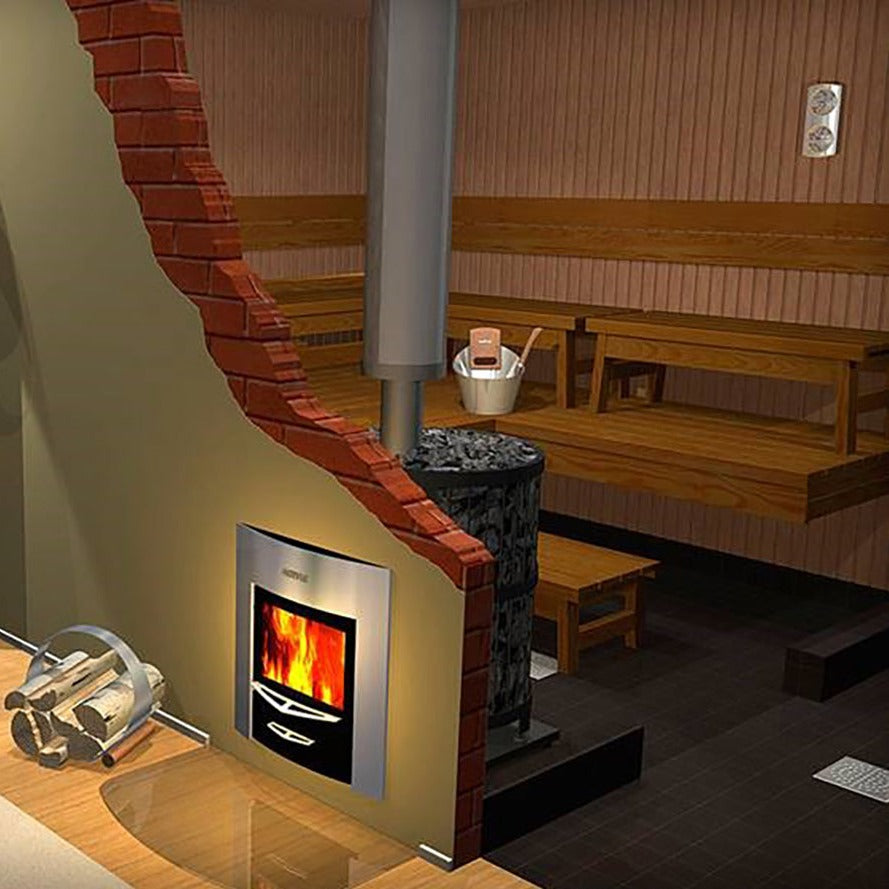

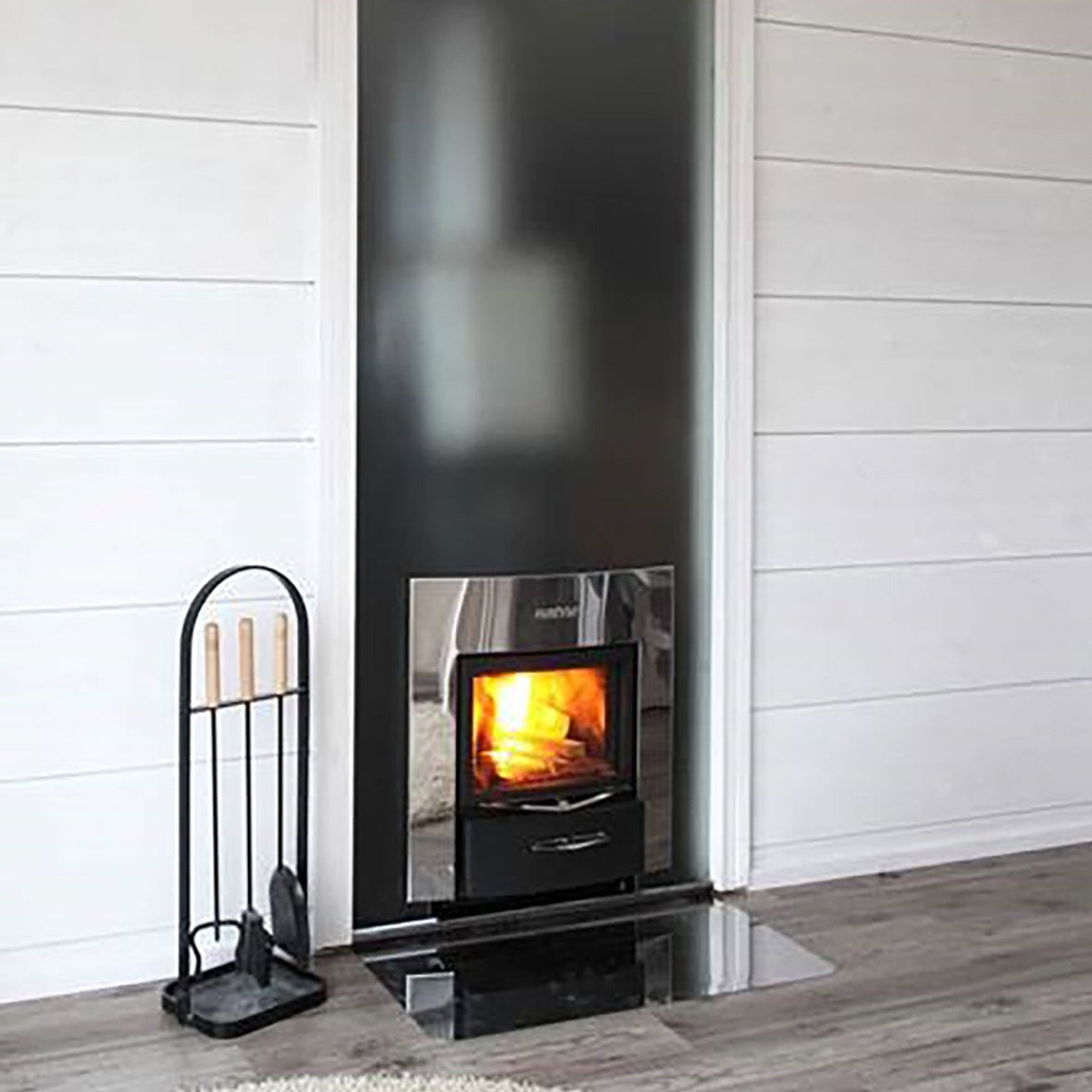

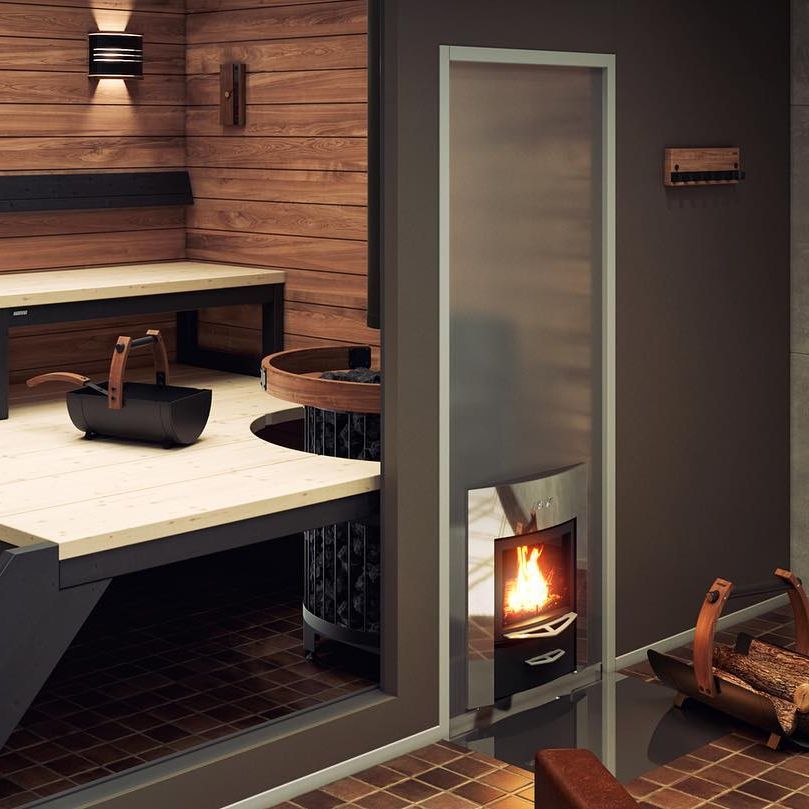

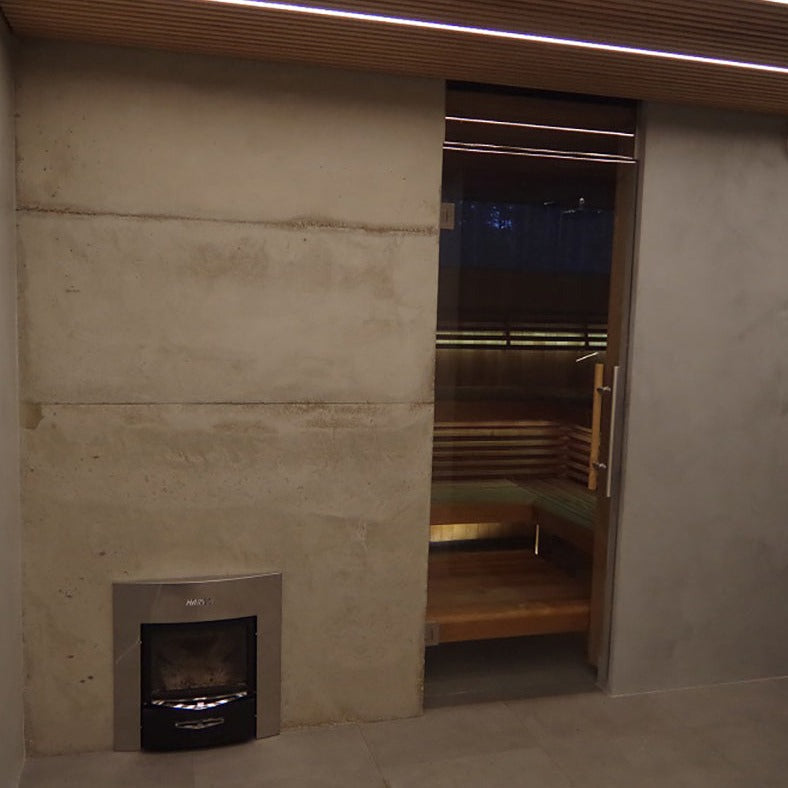

This carefully crafted package contains the Harvia Legend 300 Duo Stove, Protective Bedding, Sheath, Stainless Steel Chimney Kit, Rock Cage For Chimney, and Sauna Stones. This is the right choice for people who want to conveniently heat their sauna from another room or outside the building. The Harvia Legend wood burning heaters give you the ultimate sauna experience. The black steel frame has a mighty amount of stones inside, and as they heat up, you get a magnificent sauna bath even at a lower temperature. The large number of stones ensures good heat, even if the fire dies down in between.

The fire chamber of Legend wood burning heaters has a modern grate structure that separates the combustion air. Part of the air is directed to the upper part of the fire chamber. This way the burning is cleaner and more efficient. This grate structure also gives the wood burning heater a longer lifespan. The smaller than usual safety distances from the side and back surfaces to burning materials enable you to locate the benches more freely.

The direction of the door opening can be changed along with the adjustable legs making this wood burning heater easy to place in your sauna.

Features:

• For sauna rooms from 529 to 1059 cu. ft.
• Heats two rooms
• Cleaner and efficient burning
• 23.5 kW
• 617 pound stone capacity
• Free-standing with adjustable feet
• Upper & Rear opening for chimney connection
• Designed, engineered, and made in Finland

Specification

Stove Specifications:

Kilowatt Rating: 23.5 KW
Primary Fuel: Wood

Cubic Feet Capacity:

• Minimum: 529 CF
• Maximum: 1059 CF

Stove Weight:

• Heater Weight: 214 lbs
• Shipping Weight (with Sauna Stones): 874 lbs

Stove Dimensions:

• Width: 23.6"
• Depth: 30.7"
• Height: 40.9"

Protective Sheath:

• Stainless Steel with a black finish
• Weight: 15 lbs

• Dimensions: 20"W (520MM) x 5"D (125MM) x 39"H (1000mm)
• Reduces safety distance to combustible materials
• 2-Year warranty

Protective Bedding:

• Aluminum-zinc coated steel
• Adjustable feet
• Dimensions: 17.7" W (450MM) X 26" D (665MM) X 2.4"-3" (60-75MM)
• Weight: 23.5 lbs
• Can be installed on a sloping floor
• 2-year warranty

Chimney Kit:

• Exits stove vertically and extends through ceiling/roof

• Polished Stainless Steel

• Touch protection is not needed if installed in a sauna

• Sootfire resistant

• Freeze thaw resistant

• Easily extended by purchasing either single-wall "smoke pipe" or insulated, double-wall "chimney" extensions

• Total height: 7 3/4 ft + rain cap

• Made in Finland

• 2 year warranty (Consumer use)

• Weight: 49 lbs

These extensions can be used to extend the length of the chimney:

• Harvia 3.3ft Sauna Stove Chimney Extension Stainless Steel | WHP1000
• Harvia 1.64ft Sauna Stove Chimney Extension Stainless Steel | WHP500
• Harvia 3.3ft Smoke Pipe 4.5" diameter-Stainless Steel | WZ115100
• Harvia 1.64ft Smoke Pipe 4.5" diameter-Stainless Steel | WZ115050

Rock Cage for Chimney Pipe:

• Reduces safety clearance to wall
• Larger stone area to retain more heat
• Provides more rock surface area for steam generation
• Black Stainless Steel
• Stylish design
• Weight: 10 lbs
• Dimensions: 22" D (560mm) x 11.8"H (300mm)

Sauna Stones:

• 14 boxes (617 lbs)
• Olivine diabase sauna stones
• Subvolcanic rock mined in Western Finland
• Split-Face
• Durable with high-heat capacity
• Stones range from 4" to 6" (10-15 cm)

Safety Distances:

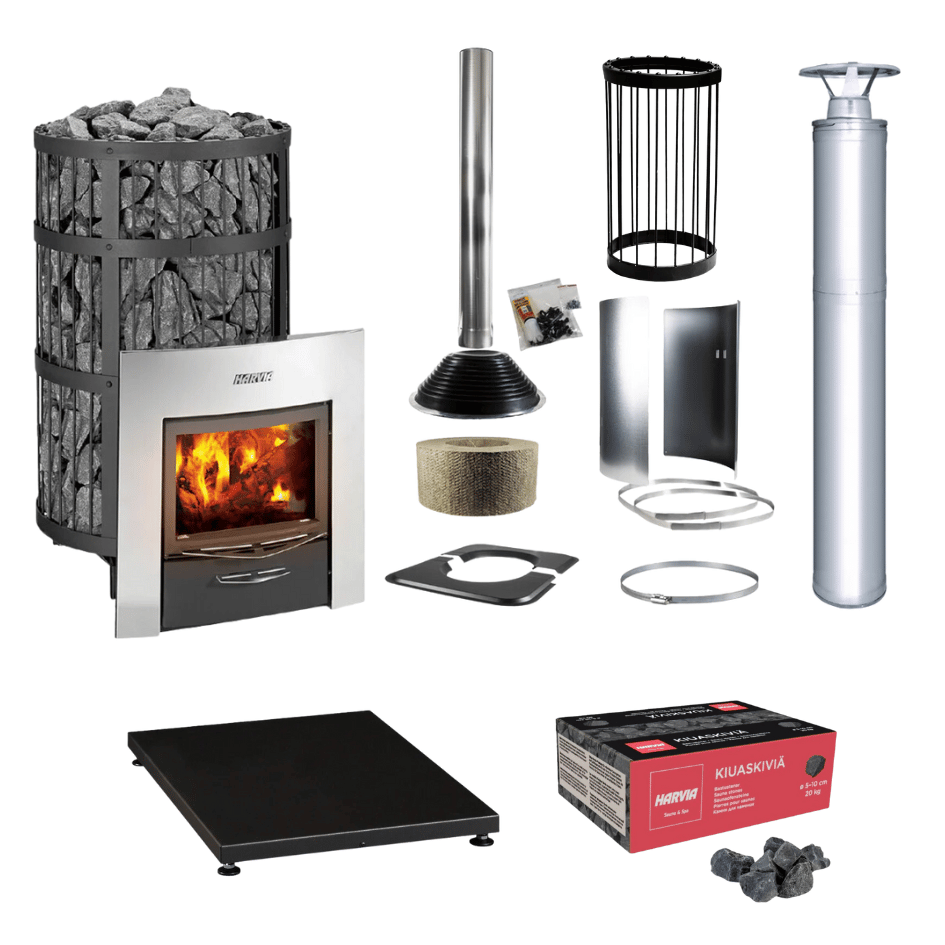

Includes

Included:

• Sauna Stove
• 14 boxes of Harvia stones 617 lbs
• Protective Bedding (to protect combustible floor material)
• Protective Sheath Panel (reduces safety distance to combustible materials) -WL200
• Chimney Mounted Rock Cage Smoke Pipe Guard (Reduces safety distance to the smoke pipe) -WL300
• Chimney Kit (everything you need to safely exhaust) - WHP1500
• 3.1ft (1m) + 1.55 ft (0.5m) Double-wall, insulated Chimney pipe riveted together
• 3.1ft (1m) Single-wall, non-insulated Smoke Pipe that can be cut to desired length
• Rain Cap
• Rubber Rain Flange to seal off to outer roof surface
• Lead-through insulation and protector shield
• Lead-through flange to cover the interior ceiling opening
• Clamps
• Installation and operation manual

• 2 year warranty
