Harvia Legend 300 23.5kW Wood Burning Stove Package w/ Chimney Kit, Rock Cage, Protective Bedding, Sheath, Stones

Harvia Legend 300 23.5kW Wood Burning Stove Package w/ Chimney Kit, Rock Cage, Protective Bedding, Sheath, Stones

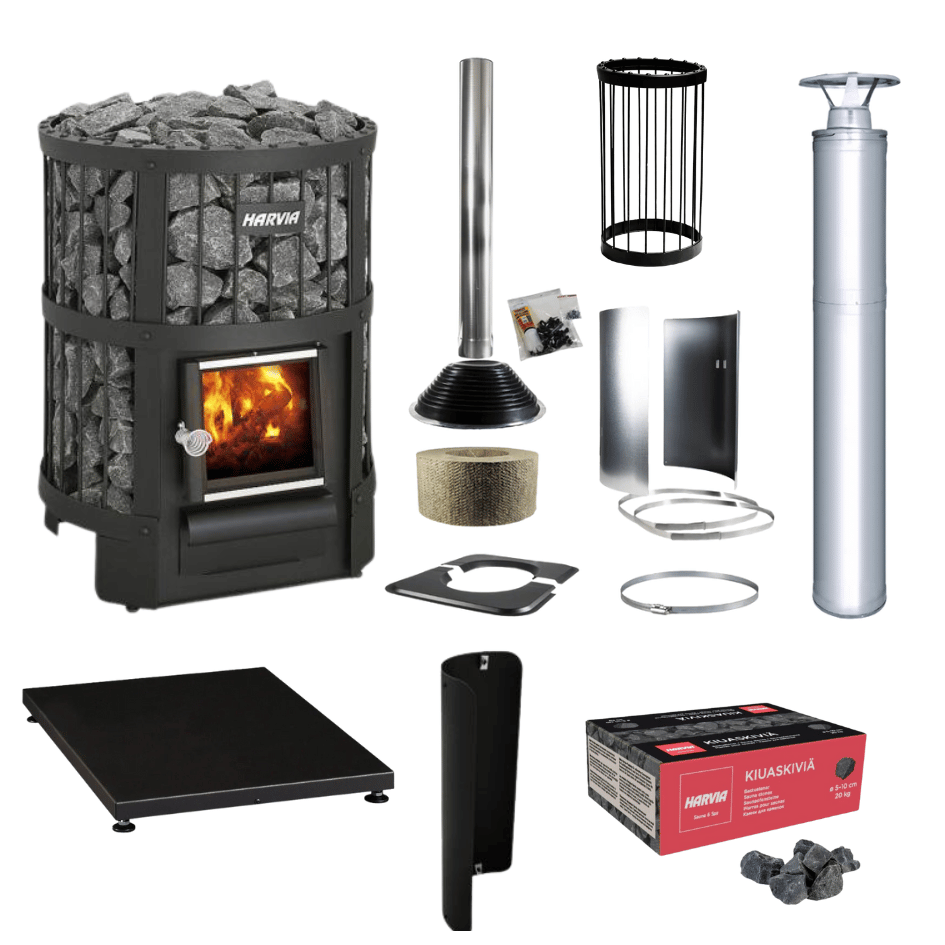

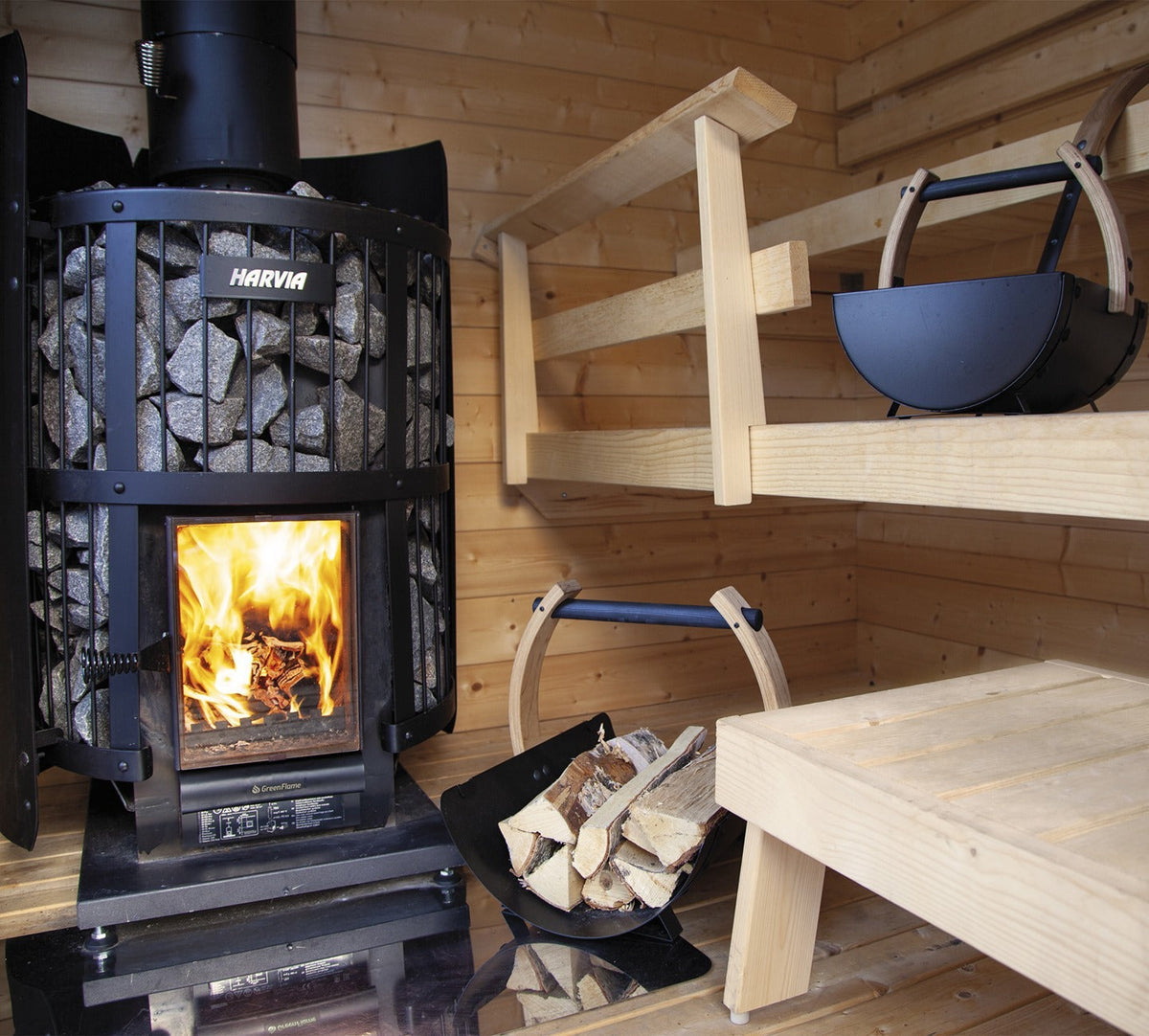

This carefully crafted package contains the Harvia Legend 300 Stove, Protective Bedding, Protective Sheath, Stainless Steel Chimney Kit, Rock Cage For Chimney, and Sauna Stones. The Harvia Legend 300 is equipped with a cast-iron glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The adjustable legs make the wood-burning heater easy to place in the sauna.

Features:

• For sauna rooms from 494-988 cu. ft.
• Clean and efficient burning
• 23.5 kW
• 617 pound stone capacity
• Free-standing with adjustable feet
• Upper & Rear opening for chimney connection
• Designed, engineered, and made in Finland
• 2-year warranty (Consumer use)

Specification

Stove Specifications:

Kilowatt Rating: 23.5 KW
Primary Fuel: Wood
Cubic Feet Capacity:

• Minimum: 494 CF
• Maximum: 988 CF

Stove Weight:

• Heater Weight: 201 lbs
• Shipping Weight (with Sauna Stones): 817 lbs

Stove Dimensions:

• Width: 23" (600mm)
• Depth: 25.98" (660mm)
• Height: 40.94" (1040mm)

Firewood Specifications:

• Maximum Length: 15" (39cm)
• Diameter Range: 3-5.9" (8-15cm)

Flue Connection Location: Back, Top
Minimum Room Height: 69" (1750mm)

Protective Bedding:

• Aluminum-zinc coated steel
• Adjustable feet
• Dimensions: 17.7" W (450MM) X 26" D (665MM) X 2.4"-3" (60-75MM)
• Weight: 23.5 lbs
• Can be installed on a sloping floor
• 2-year warranty

Protective Sheath:

• Stainless Steel with a black finish
• Weight: 15 lbs

• Dimensions: 20"W (520MM) x 5"D (125MM) x 39"H (1000mm)
• Reduces safety distance to combustible materials
• 2-Year warranty

Minimum safety distances with various protection options in millimeters (divide by 25.4 to convert to inches):

Chimney Kit:

• Exits stove vertically and extends through ceiling/roof

• Polished Stainless Steel

• Touch protection is not needed if installed in a sauna

• Sootfire resistant

• Freeze thaw resistant

• Easily extended by purchasing either single-wall "smoke pipe" or insulated, double-wall "chimney" extensions

• Total height: 7 3/4 ft + rain cap

• Made in Finland

• 2 year warranty (Consumer use)

• Weight: 49 lbs

These extensions can be used to extend the length of the chimney:

• Harvia 3.3ft Sauna Stove Chimney Extension Stainless Steel | WHP1000
• Harvia 1.64ft Sauna Stove Chimney Extension Stainless Steel | WHP500
• Harvia 3.3ft Smoke Pipe 4.5" diameter-Stainless Steel | WZ115100
• Harvia 1.64ft Smoke Pipe 4.5" diameter-Stainless Steel | WZ115050

Rock Cage for Chimney Pipe:

• Reduces safety clearance to wall
• Larger stone area to retain more heat
• Provides more rock surface area for steam generation
• Black Stainless Steel
• Stylish design
• Weight: 10 lbs
• Dimensions: 22" D (560mm) x 11.8"H (300mm)

Sauna Stones:

• 14 boxes (617 lbs)
• Olivine diabase sauna stones
• Subvolcanic rock mined in Western Finland
• Split-Face
• Durable with high-heat capacity
• Stones range from 4" to 6" (10-15 cm)

Safety Distances:

Includes

Included:

• Sauna Stove
• 14 boxes of Harvia stones 617 lbs
• Protective Bedding (to protect combustible floor material)
• Protective Sheath Panel (reduces safety distance to combustible materials) -WL200
• Chimney Mounted Rock Cage Smoke Pipe Guard (Reduces safety distance to the smoke pipe) -WL300

• Chimney Kit (everything you need to safely exhaust) - WHP1500
• 3.1ft (1m) + 1.55 ft (0.5m) Double-wall, insulated Chimney pipe riveted together
• 3.1ft (1m) Single-wall, non-insulated Smoke Pipe that can be cut to desired length
• Rain Cap
• Rubber Rain Flange to seal off to outer roof surface
• Lead-through insulation and protector shield
• Lead-through flange to cover the interior ceiling opening
• Clamps
• Installation and operation manual
• 2 year warranty

Manual
