Harvia Legend 150 16kW Wood Burning Stove Package w/ Chimney Kit, Rock Cage, Protective Bedding, Sheath, Stones

Harvia Legend 150 16kW Wood Burning Stove Package w/ Chimney Kit, Rock Cage, Protective Bedding, Sheath, Stones

Sit back, relax and revel in the white-hot crackling fire taking your sauna up to over 200º F. Primitive in concept with modern design cues, the Legend 150 Wood Burning Sauna Stove washes away your stress while you stare into the fire, creating a level of serenity and calm you can't achieve with any other type of sauna stove. It truly takes your outdoor sauna to the next level.

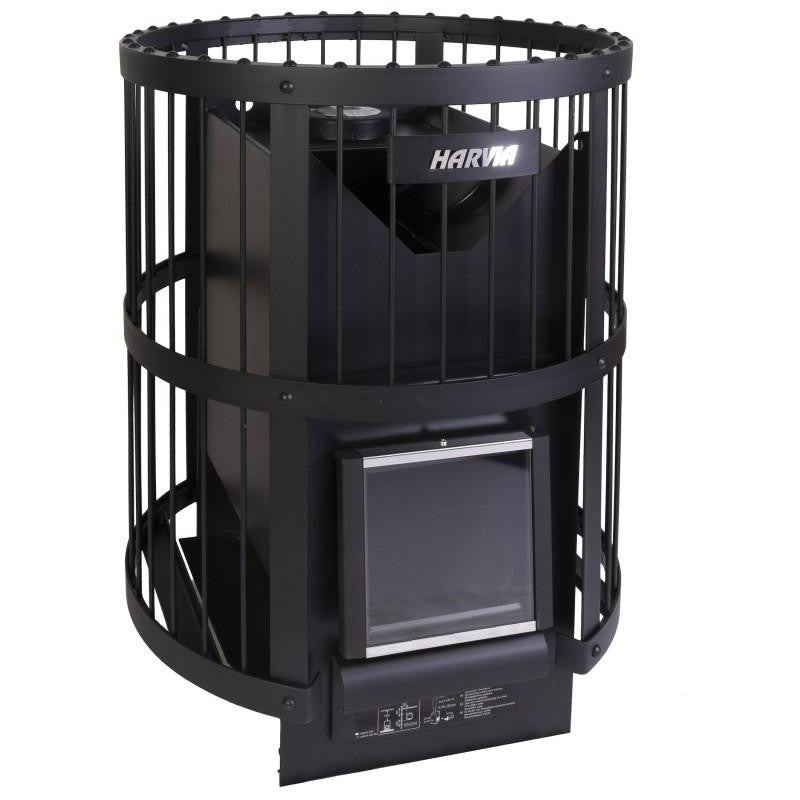

The Harvia Legend 150 is equipped with a cast-iron glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The black steel frame has a mighty amount of stones inside, and as they heat up, you get a soft comfortable heat. The large number of stones ensures good heat, even if the fire dies down in between.

The fire chamber of Legend wood burning heaters has a modern grate structure that separates the combustion air. Part of the air is directed to the upper part of the fire chamber. This way the burning is cleaner and more efficient. This grate structure also gives the wood-burning heater a longer lifespan. The smaller-than-usual safety distances from the side and back surfaces to burning materials enable you to locate the benches more freely.

Features:

• For sauna rooms from 212-459 cu. ft.
• 16kW
• 308 lbs stone capacity
• Cleaner and efficient burning
• Black steel frame
• Cast-iron-framed glass door
• Free-standing with adjustable feet
• Ash Box
• Designed, engineered, and made in Finland
• 2-year warranty

Specifications

Stove Specifications:

Kilowatt Rating: 16kW
Primary Fuel: Wood

Firewood Specifications:

• Maximum Length: 15" (39cm)
• Diameter Range: 3-5.9" (8-15cm)

Stove Cubic Feet Capacity:

• Minimum: 212 CF
• Maximum: 459 CF

Minimum Room Height: 69" (1750mm)
Flue Connection Location: Back, Top

Stove Weight:

• Heater Weight: 135 lbs
• Shipping Weight (with Sauna Stones): 443 lbs

Stove Dimensions:

• Width: 21" (530mm)
• Depth: 21" (530mm)
• Height: 30" (740mm)

Protective Bedding:

• Aluminum-zinc coated steel
• Adjustable feet
• Dimensions: 17.7" W (450MM) X 26" D (665MM) X 2.4"-3" (60-75MM)
• Weight: 23.5 lbs
• Can be installed on a sloping floor
• 2-year warranty

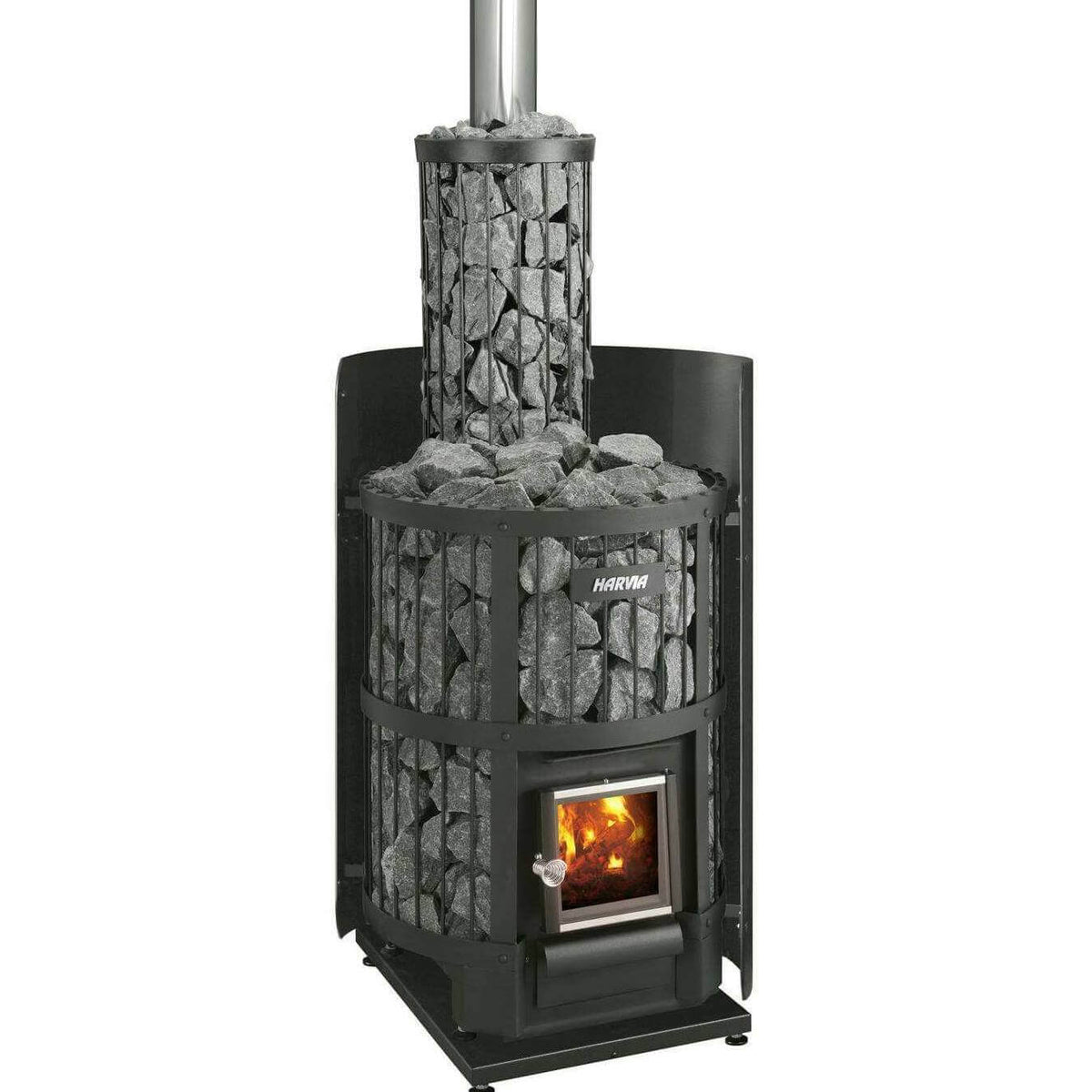

Protective Sheath:

• Stainless Steel with a black finish
• Weight: 15 lbs

• Dimensions: 20"W (520MM) x 5"D (125MM) x 39"H (1000mm)
• Reduces safety distance to combustible materials
• 2-Year warranty

Minimum safety distances with various protection options in millimeters (divide by 25.4 to convert to inches):

Chimney Kit:

• Exits stove vertically and extends through ceiling/roof

• Polished Stainless Steel

• Touch protection is not needed if installed in a sauna

• Sootfire resistant

• Freeze thaw resistant

• Easily extended by purchasing either single-wall "smoke pipe" or insulated, double-wall "chimney" extensions

• Total height: 7 3/4 ft + rain cap

• Made in Finland

• 2 year warranty (Consumer use)

• Weight: 49 lbs

These extensions can be used to extend the length of the chimney:

• Harvia 3.3ft Sauna Stove Chimney Extension Stainless Steel | WHP1000
• Harvia 1.64ft Sauna Stove Chimney Extension Stainless Steel | WHP500
• Harvia 3.3ft Smoke Pipe 4.5" diameter-Stainless Steel | WZ115100
• Harvia 1.64ft Smoke Pipe 4.5" diameter-Stainless Steel | WZ115050

Rock Cage for Chimney Pipe:

• Reduces safety clearance to wall
• Larger stone area to retain more heat
• Provides more rock surface area for steam generation
• Black Stainless Steel
• Stylish design
• Weight: 10 lbs
• Dimensions: 22" D (560mm) x 11.8"H (300mm)

Sauna Stones:

• 7 boxes (308 lbs)
• Olivine diabase sauna stones
• Subvolcanic rock mined in Western Finland
• Split-Face
• Durable with high-heat capacity
• Stones range from 4" to 6" (10-15 cm)

Safety Distances:

Includes

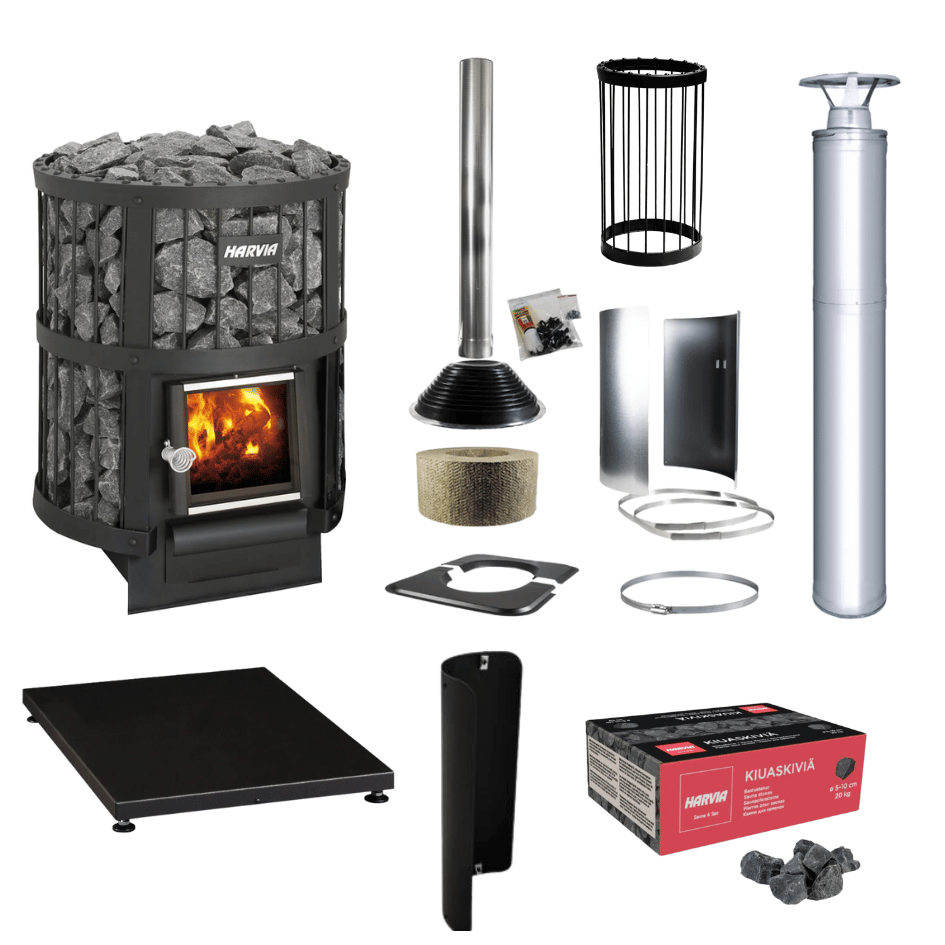

Package Contents:

• Harvia Legend 150 Sauna Stove
• Stainless Chimney Kit (everything you need to safely exhaust) - WHP1500
• 3.1ft (1m) + 1.55 ft (0.5m) Double-wall, insulated Chimney pipe riveted together
• 3.1ft (1m) Single-wall, non-insulated Smoke Pipe that can be cut to desired length
• Rain Cap
• Rubber Rain Flange to seal off to outer roof surface
• Lead-through insulation and protector shield
• Lead-through flange to cover the interior ceiling opening
• Clamps
• 7 boxes of Harvia stones 308 lbs

• Protective Bedding (to protect combustible floor material)

• Protective Sheath Panel (reduces safety distance to combustible materials) -WL200
• Chimney Mounted Rock Cage Smoke Pipe Guard (Reduces safety distance to the smoke pipe) -WL300
• Installation and Operation Manual
• 2-year Limited Warranty
