Harvia Cilindro Half Series 240V Electric Sauna Heater 6/8/9/10.5kW
Usually Ships Out: 2-4 Business Days
Once an order is processed, packed, and shipped, we will send tracking information.
Ask an expert

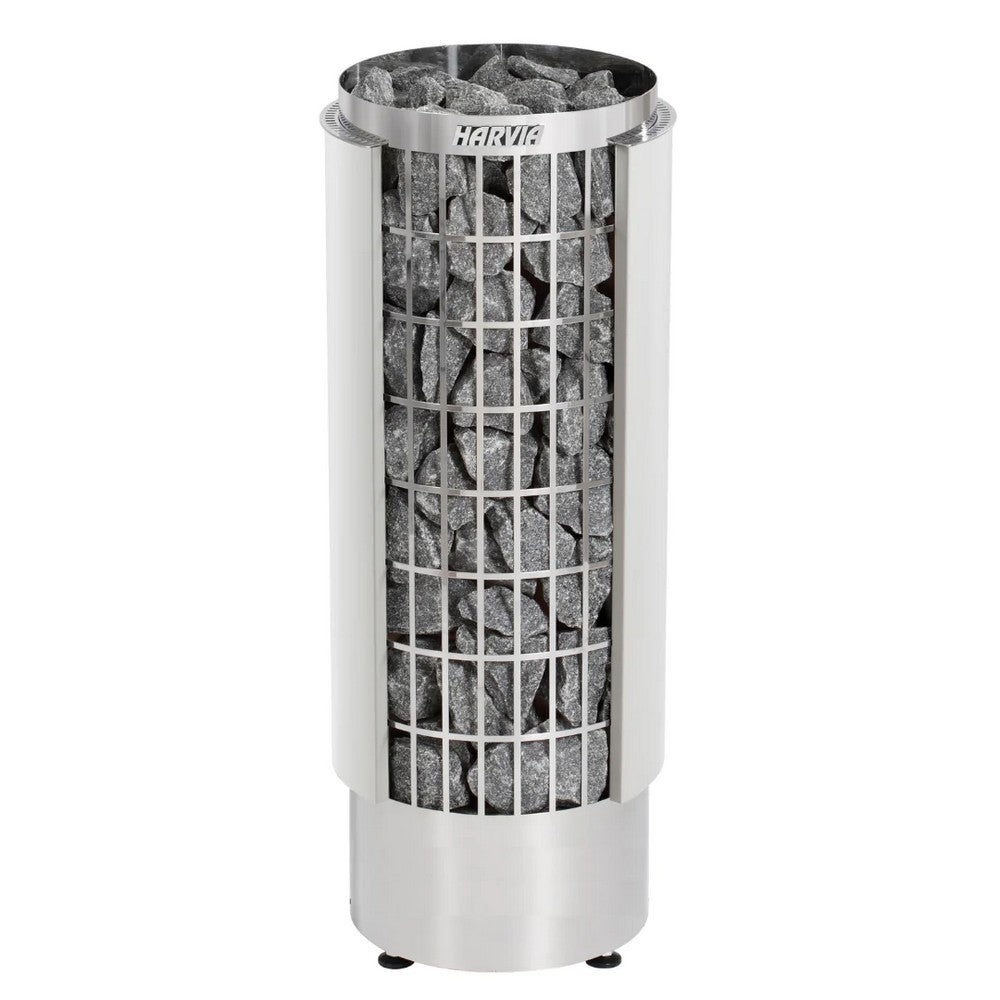

Harvia Cilindro Half Series Electric Heater PC60E/PC80E/PC90E/PC110E

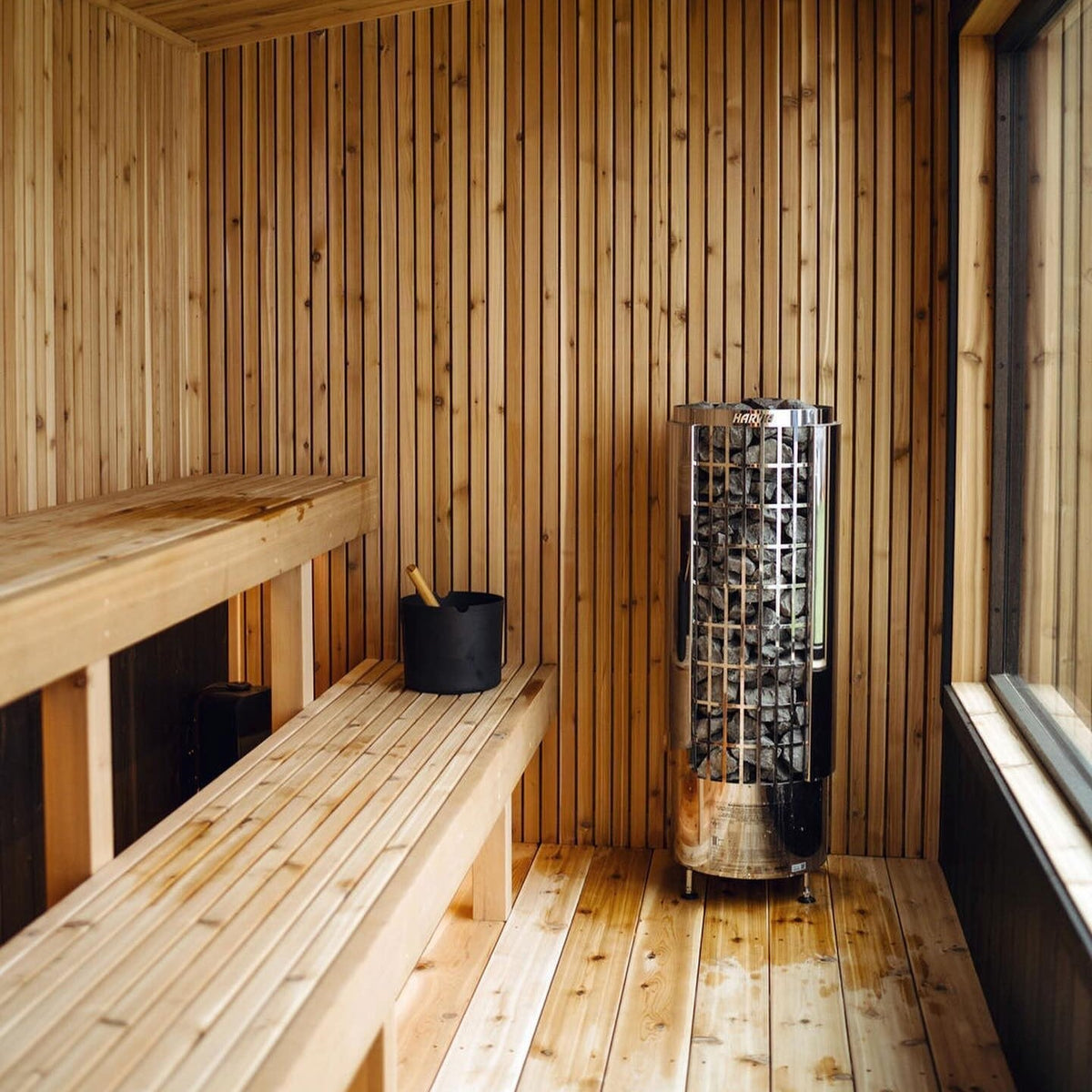

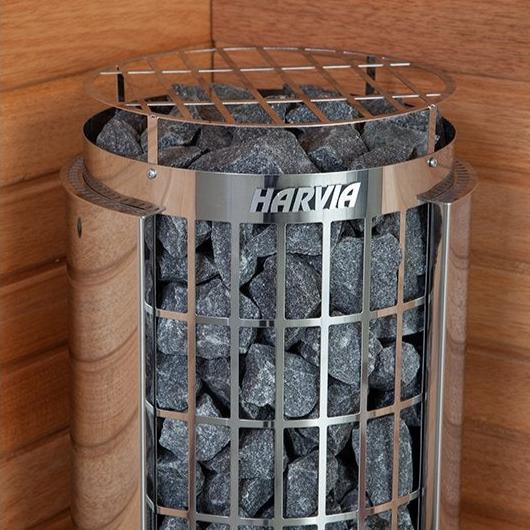

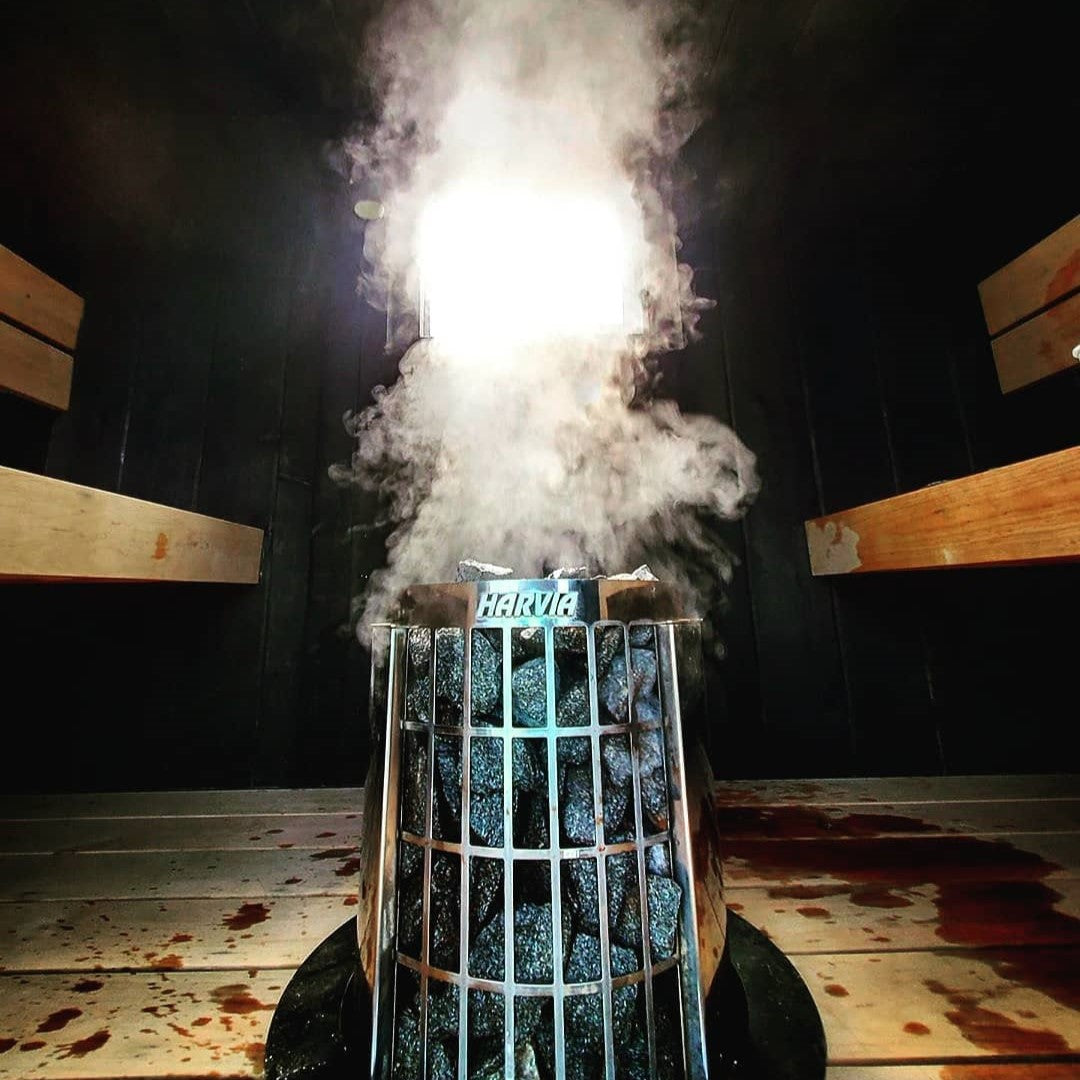

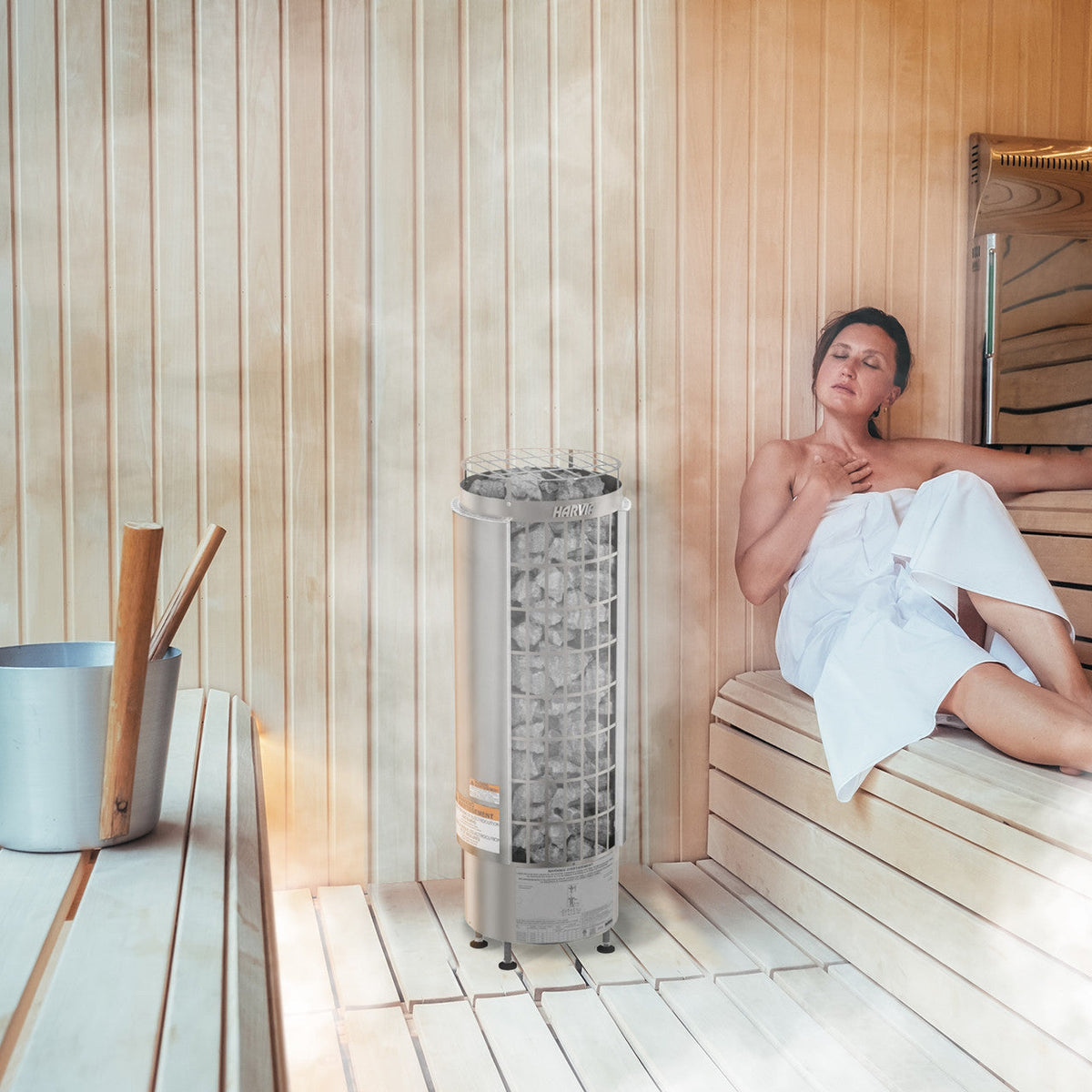

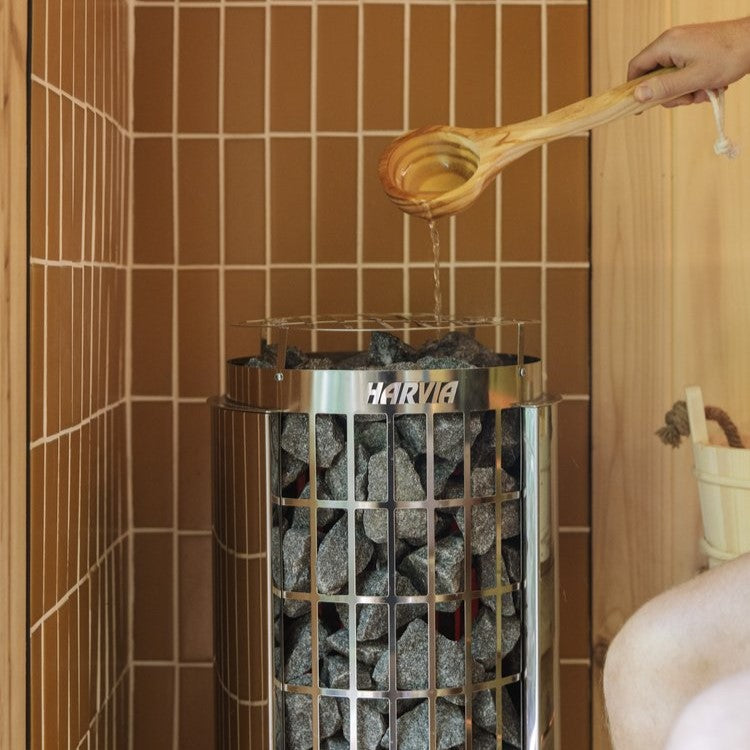

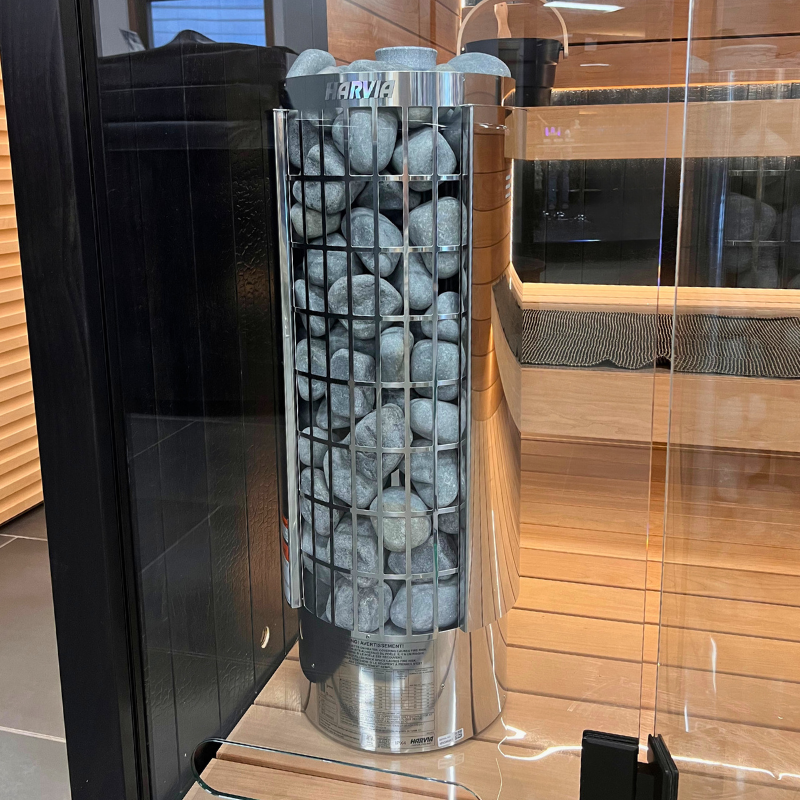

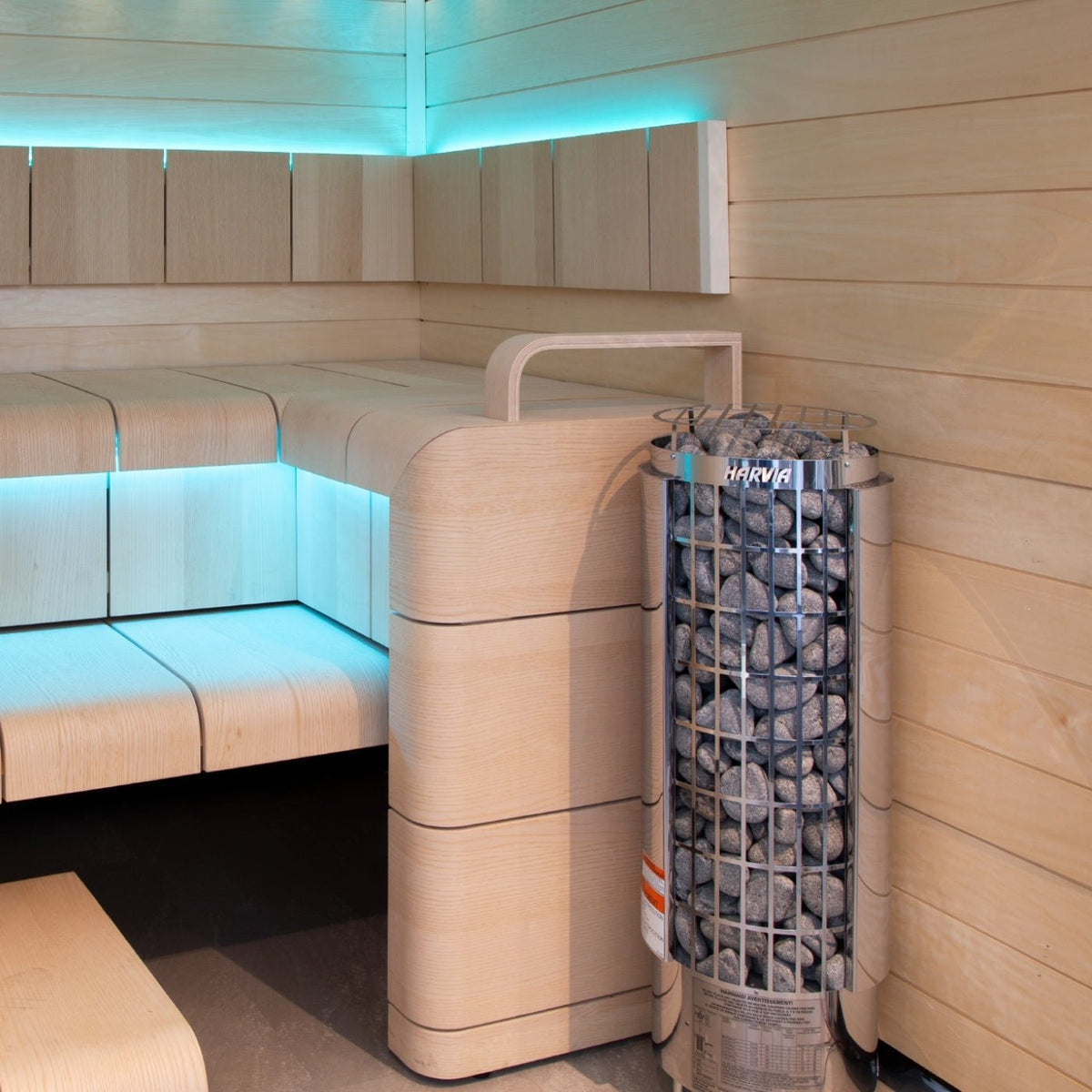

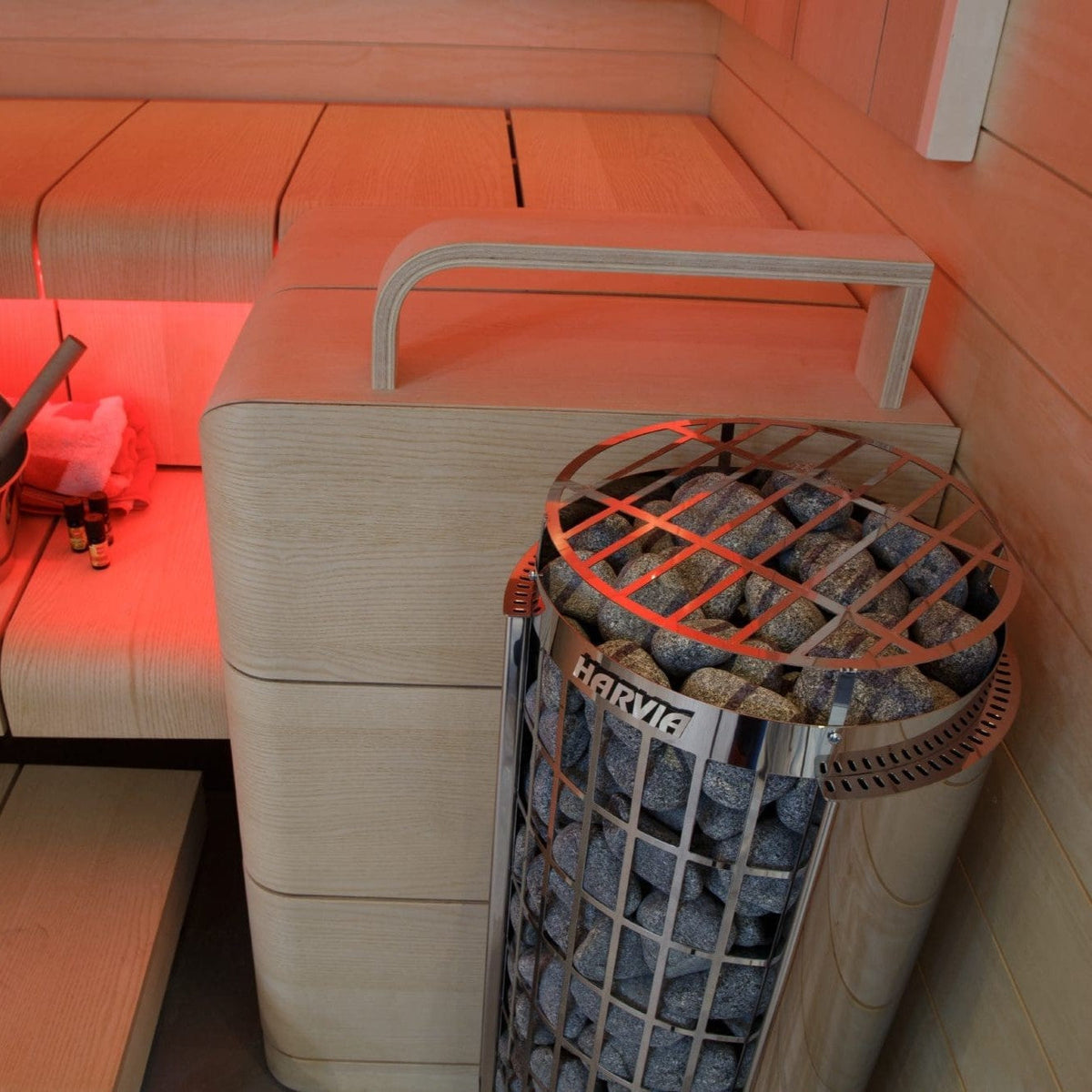

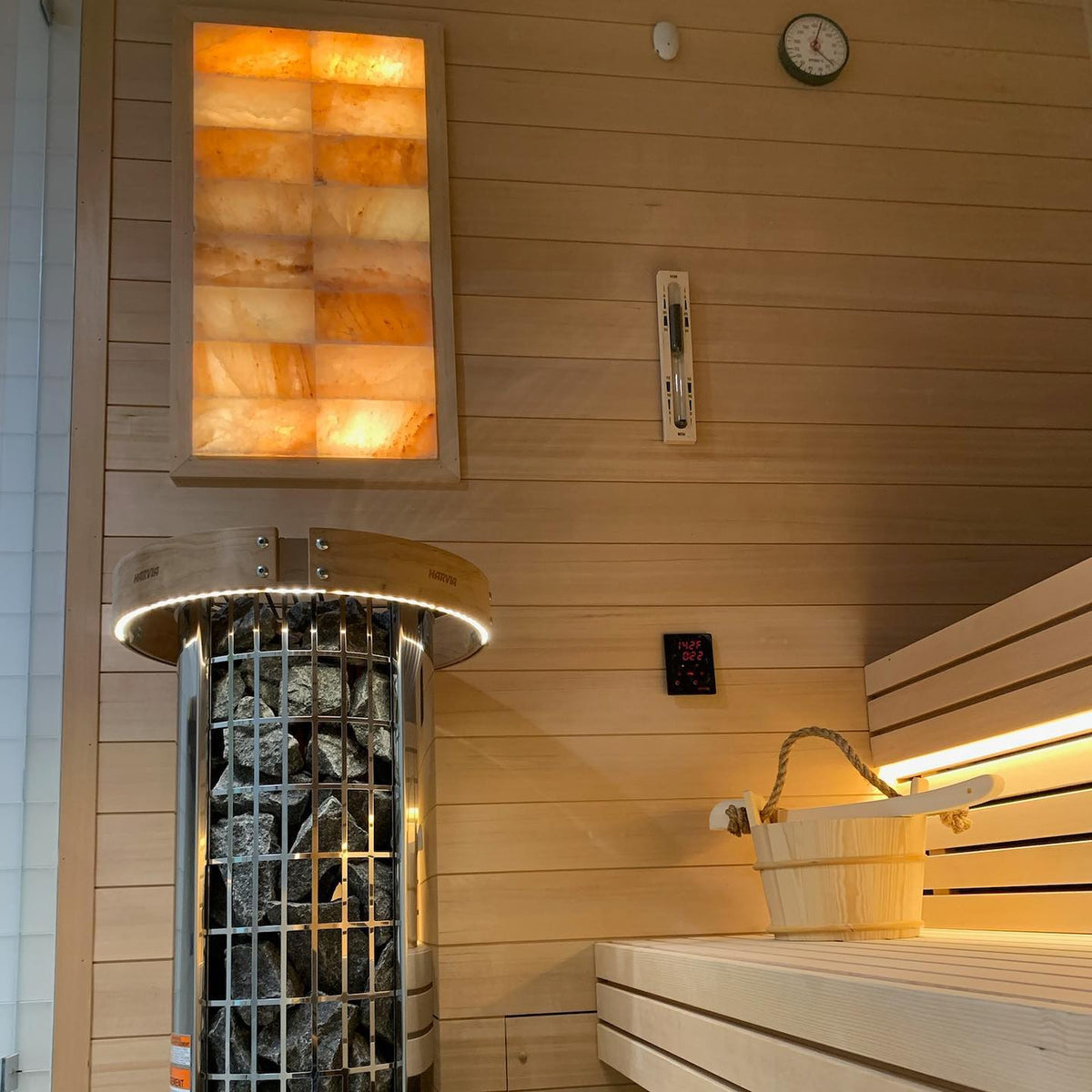

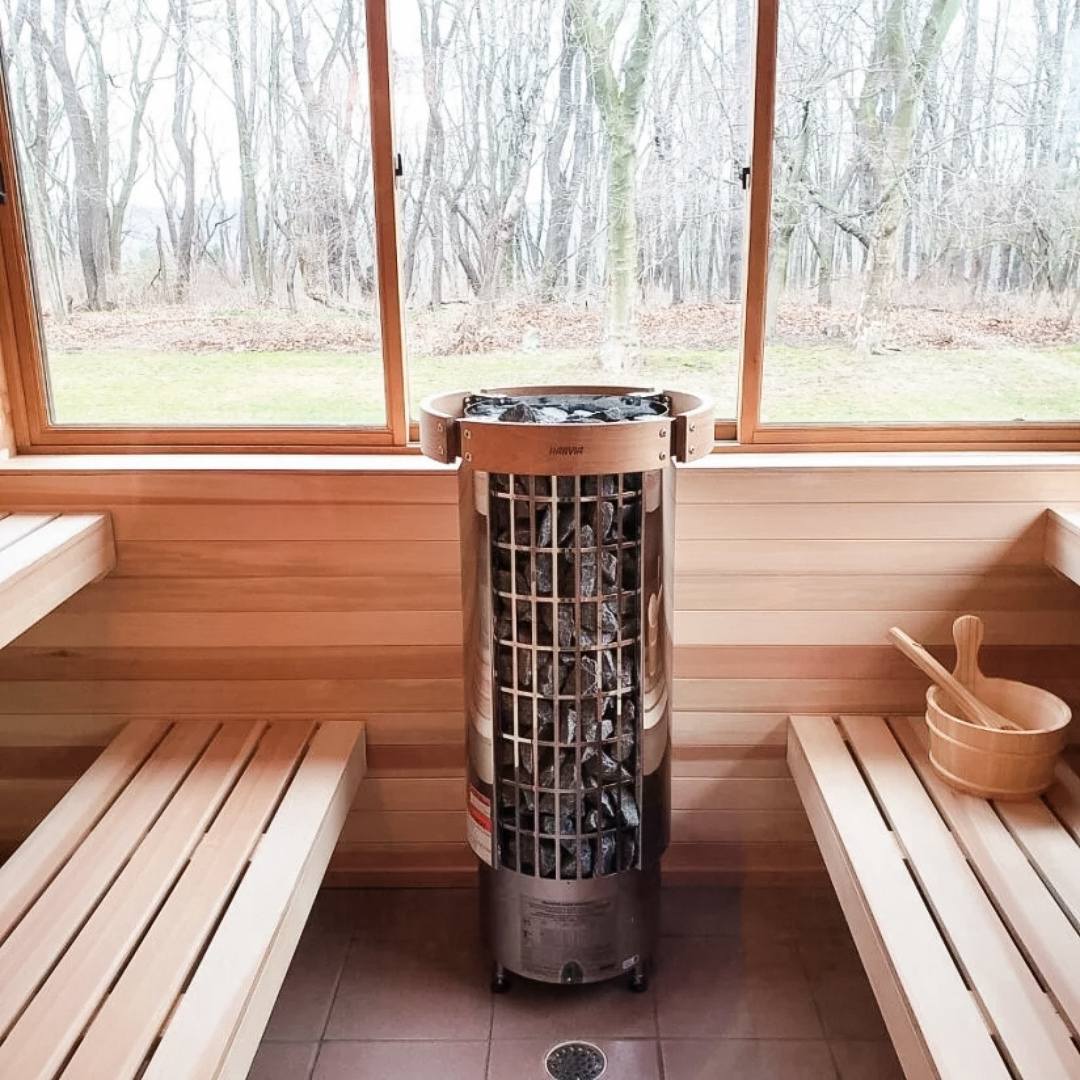

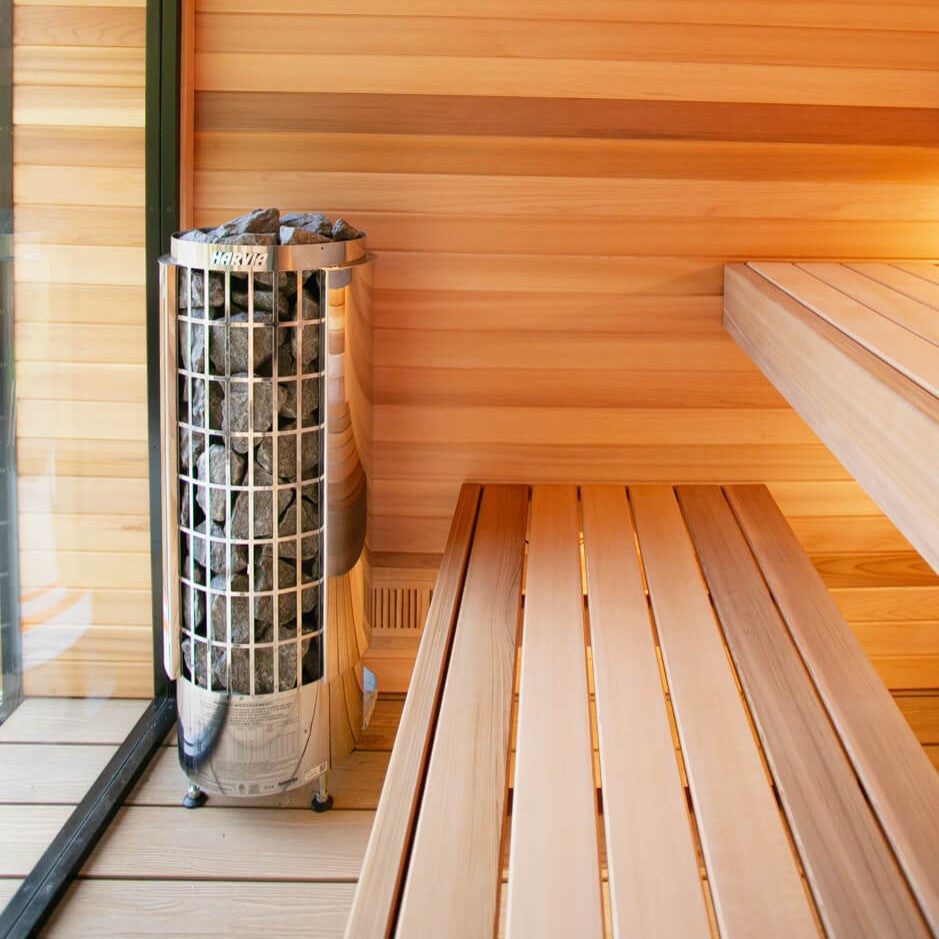

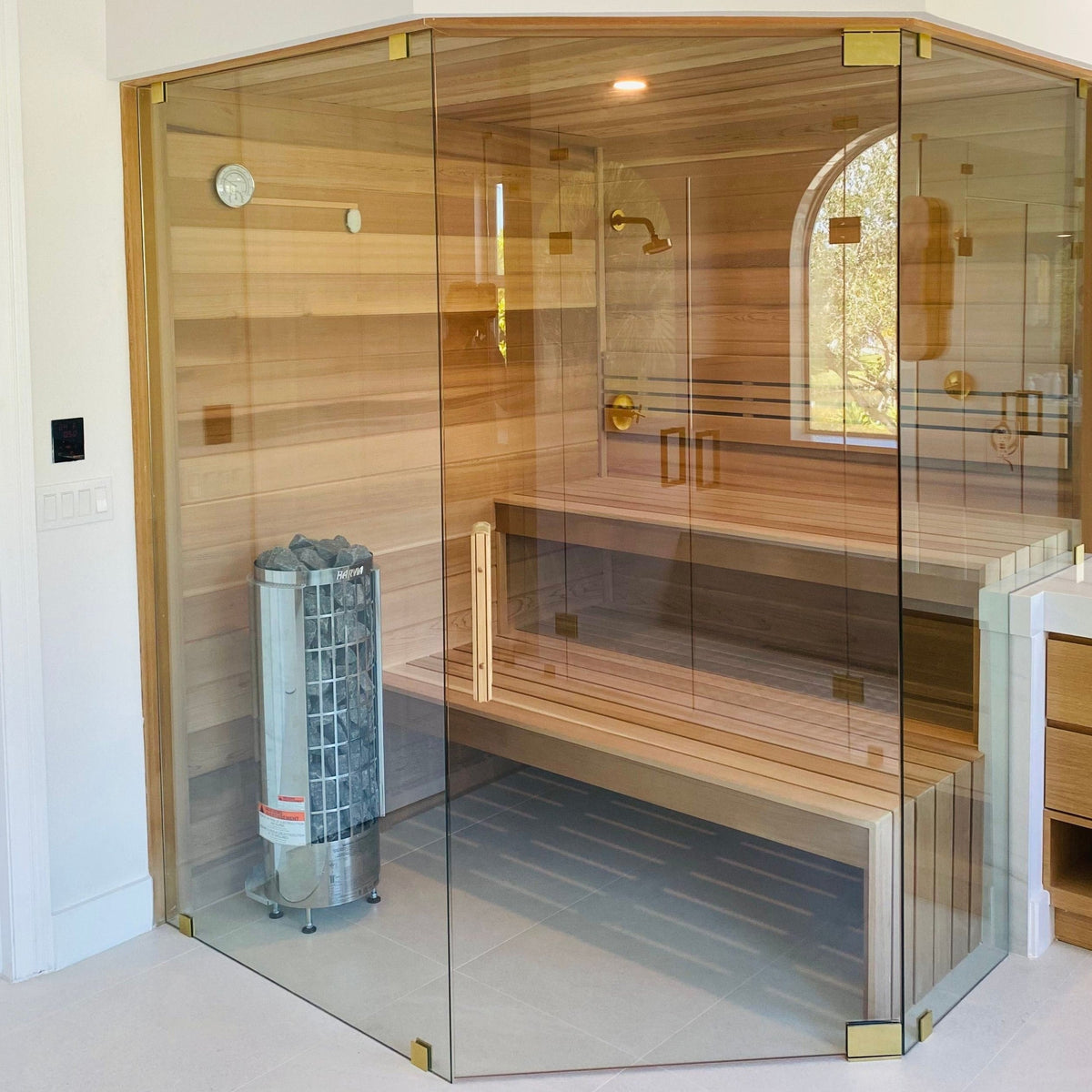

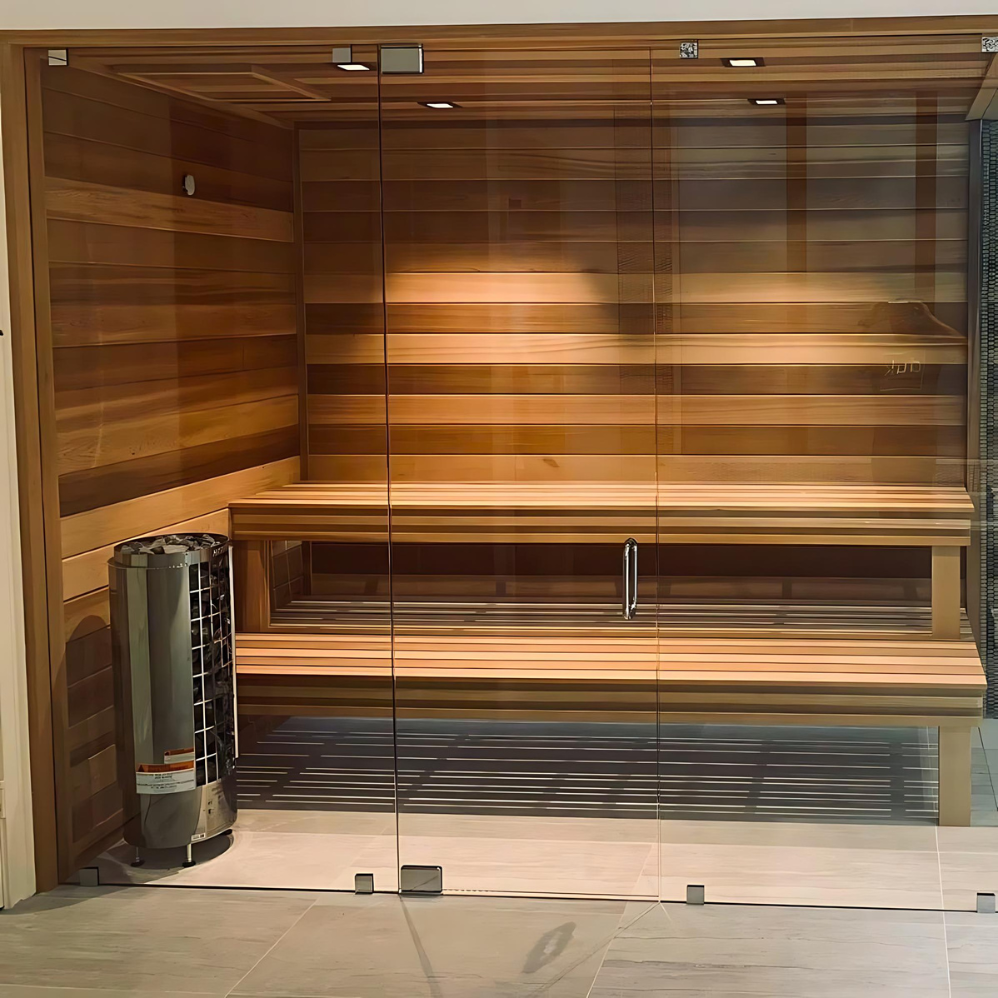

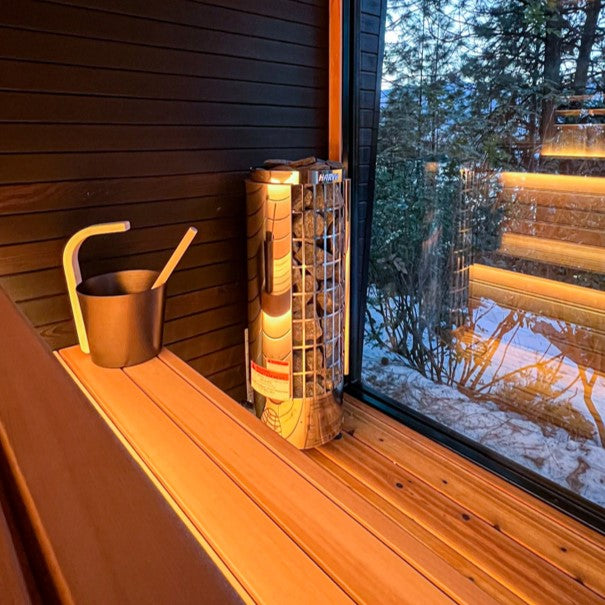

The Harvia Cilindro is a sleek pillar-type electric sauna heater that produces high-quality steam due to its large stone capacity. Its pillar design allows for flexibility in sauna layout, as the heater can be easily integrated into the bench or positioned in front of a glass wall for an attractive display. The heater has a partially open outer casing at the front, which enables users to benefit from a large stone surface and accommodate a large number of stones in a small space. With its grate-like outer shell, you can control the steam intensity: pouring water on the side produces a gentler steam, while pouring or dripping water directly on the top of the stones generates a more powerful steam.
Features
- For sauna sizes from 141-636 cu. ft.
- Voltage/Phase: 240V/1PH
- Temperature Range: 104F - 194F

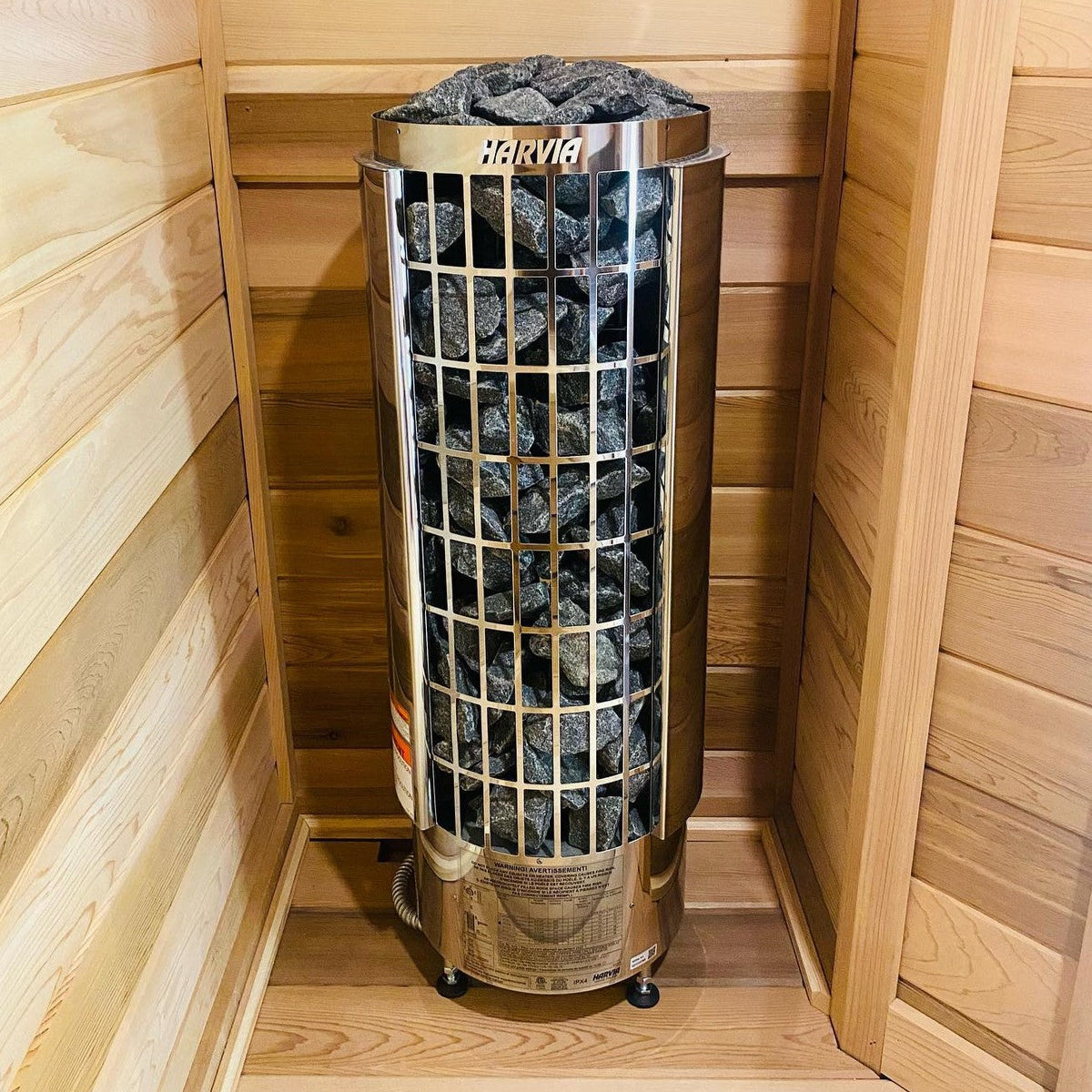

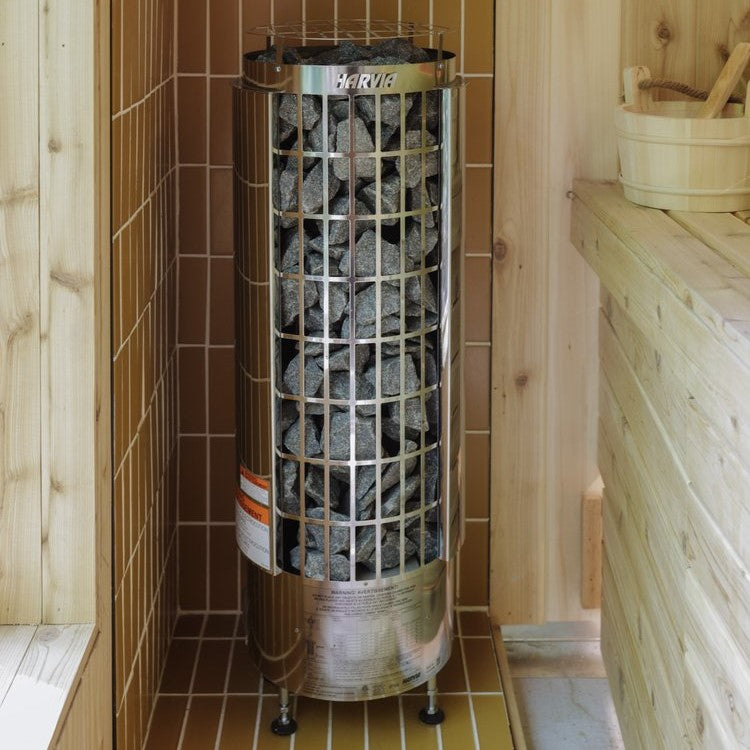

- Side-wall or corner of room install
- Stainless Steel housing and elements
- Industrial grade, serviceable heating elements
- Direct rock-to-heating element contact
- Large stone capacity for consistent steam
- Can pour water on stones for steam
- Designed, engineered, and made in Finland

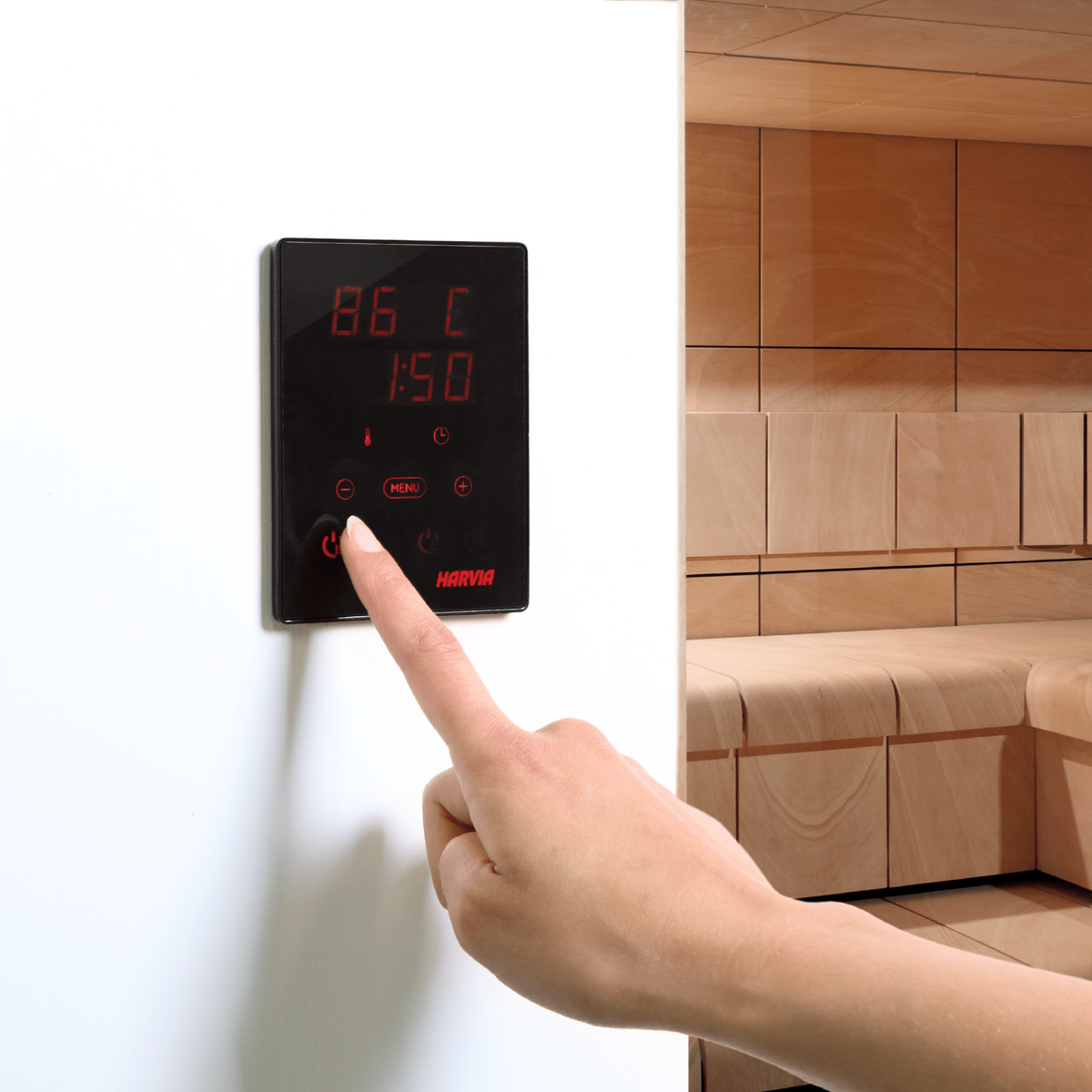

- Compatible with Xenio Digital Control (sold separately)
- Compatible with Xenio Digital Control Kit w/ WiFi Capability (sold separately)
Specifications
CILINDRO-6.0 kW
- Sauna Room Volume: 141-294 Cu. Ft.
- Amps: 25 A
- Wire Size: 12
- Dimensions: 14"W x 13"D x 40"H
- Stone Capacity: 200 lbs
CILINDRO-8.0 kW
- Sauna Room Volume: 141-431 Cu. Ft.
- Amps: 33.4 A
- Wire Size: 8
- Dimensions: 14"W x 13"D x 40"H
- Stone Capacity: 200 lbs
CILINDRO-9.0 kW
- Sauna Room Volume: 141-494 Cu. Ft.
- Amps: 37.5 A
- Wire Size: 8
- Dimensions: 14"W x 13"D x 40"H
- Stone Capacity: 200 lbs
CILINDRO-10.5 kW
- Sauna Room Volume: 141-636 Cu. Ft.
- Amps: 43.75 A
- Wire Size: 6
- Dimensions: 16"W x 15"D x 45"H
- Stone Capacity: 265 lbs
Minimum Safety Clearances
Includes
Included:
- Cilindro Sauna Heater
- Installation and Operation Manual
- 2-Year Warranty (Consumer Use)
Add-Ons
The following items are necessary to operate the heater:
-

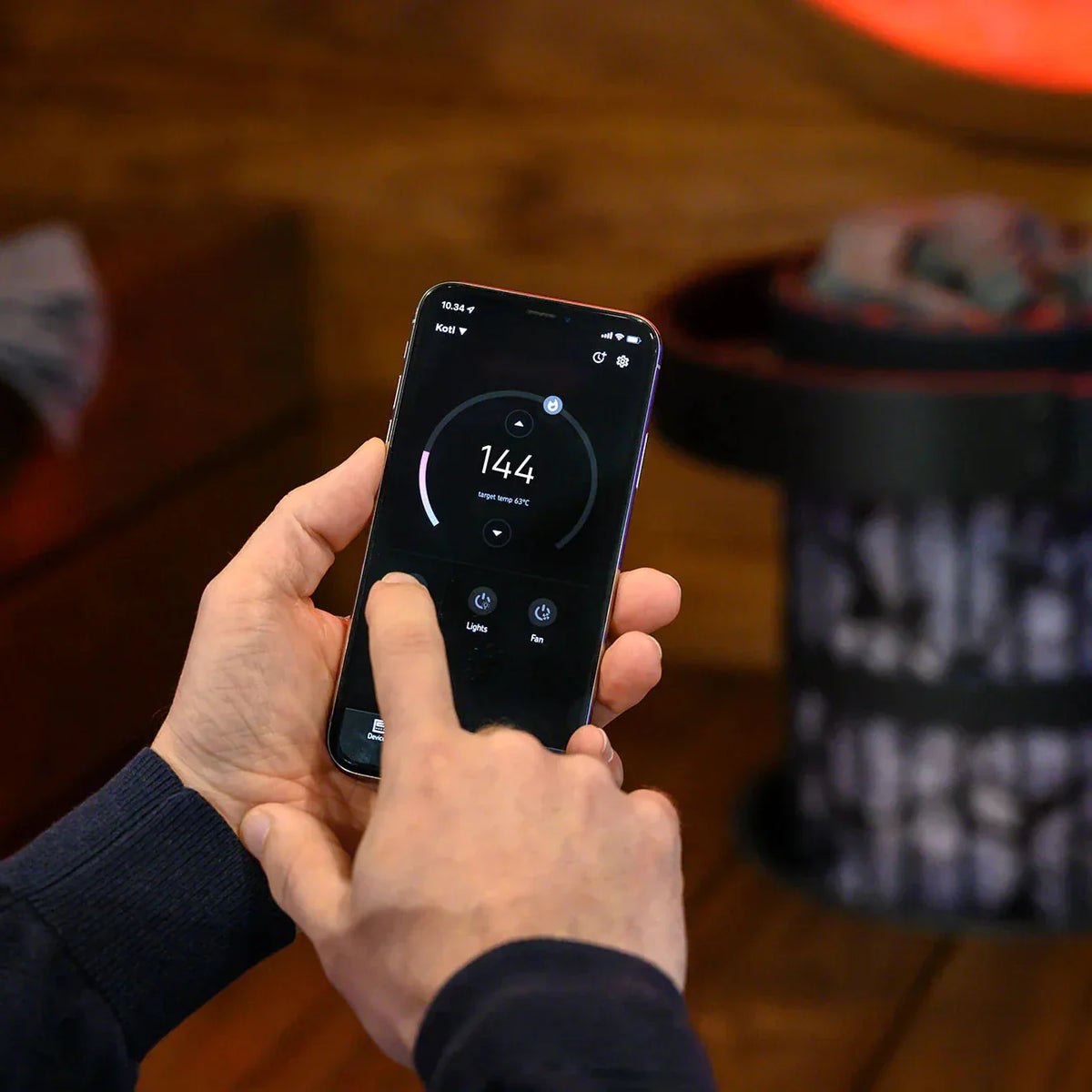

Xenio Digital Control Kit w/ WiFi Capability (Use the Harvia mobile app to control your sauna remotely)
- CX30-U1-U3 Xenio Digital Heater Control Kit w/ WiFi Capability (For 6kW Cilindro)
- CX45-U1-U3 Xenio Digital Heater Control Kit w/ WiFi Capability (For 8/9/10.5kW Cilindro)
- Sauna Stones - ~264 lbs (2-4" stones)
OR
These items are optional:

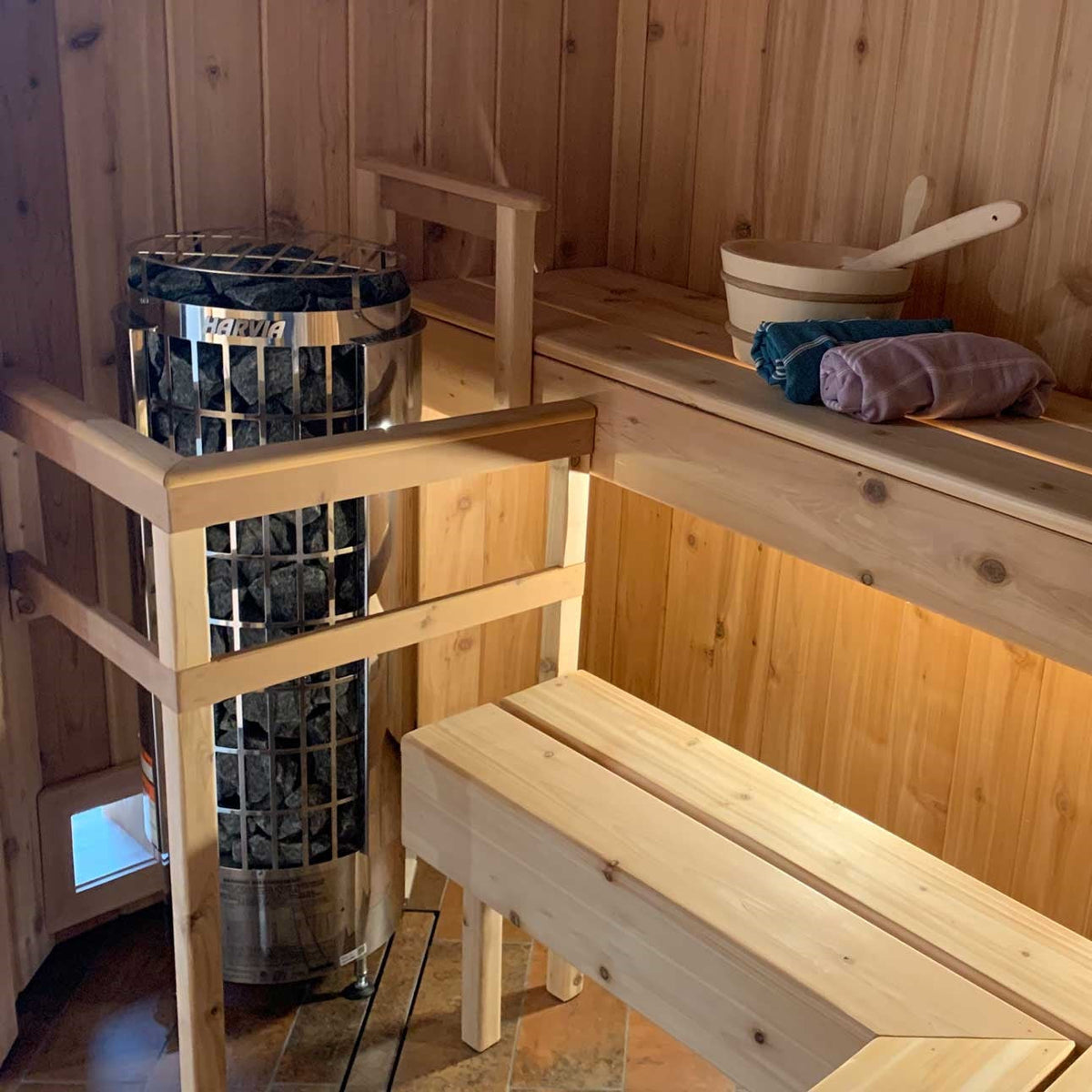

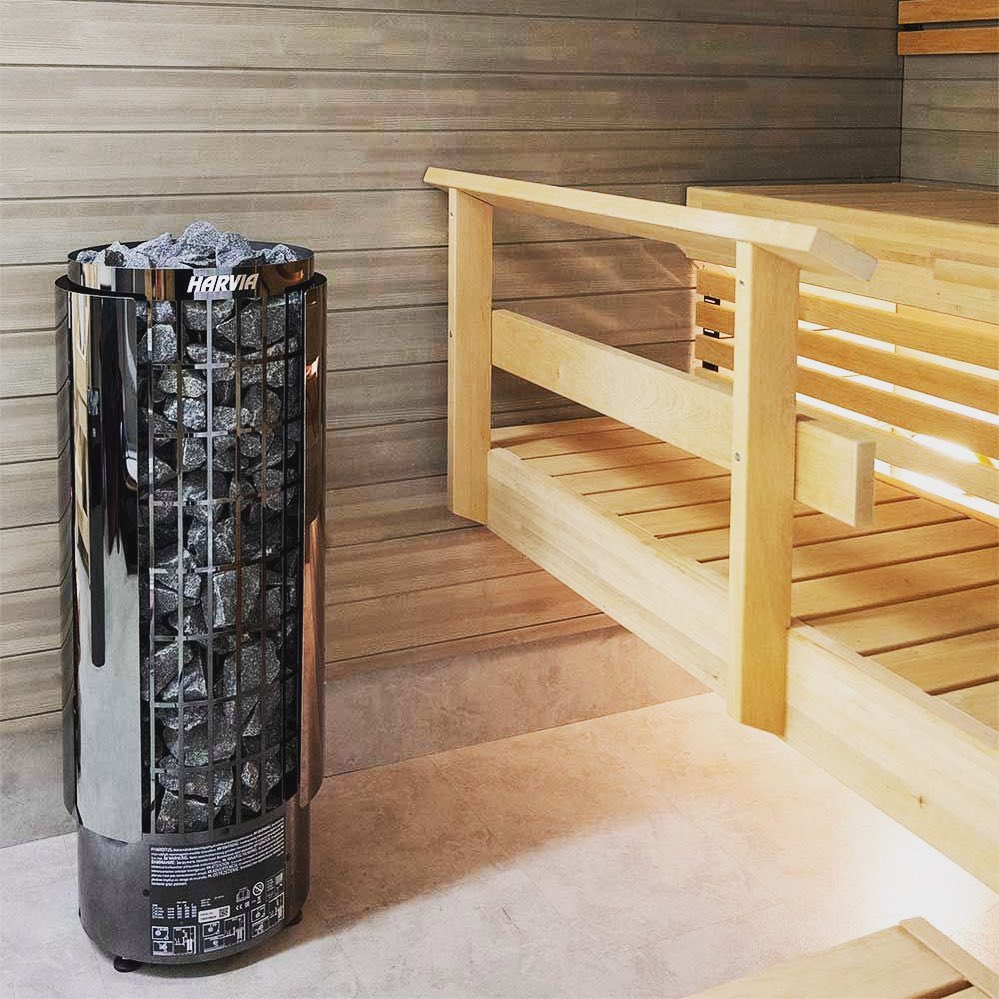

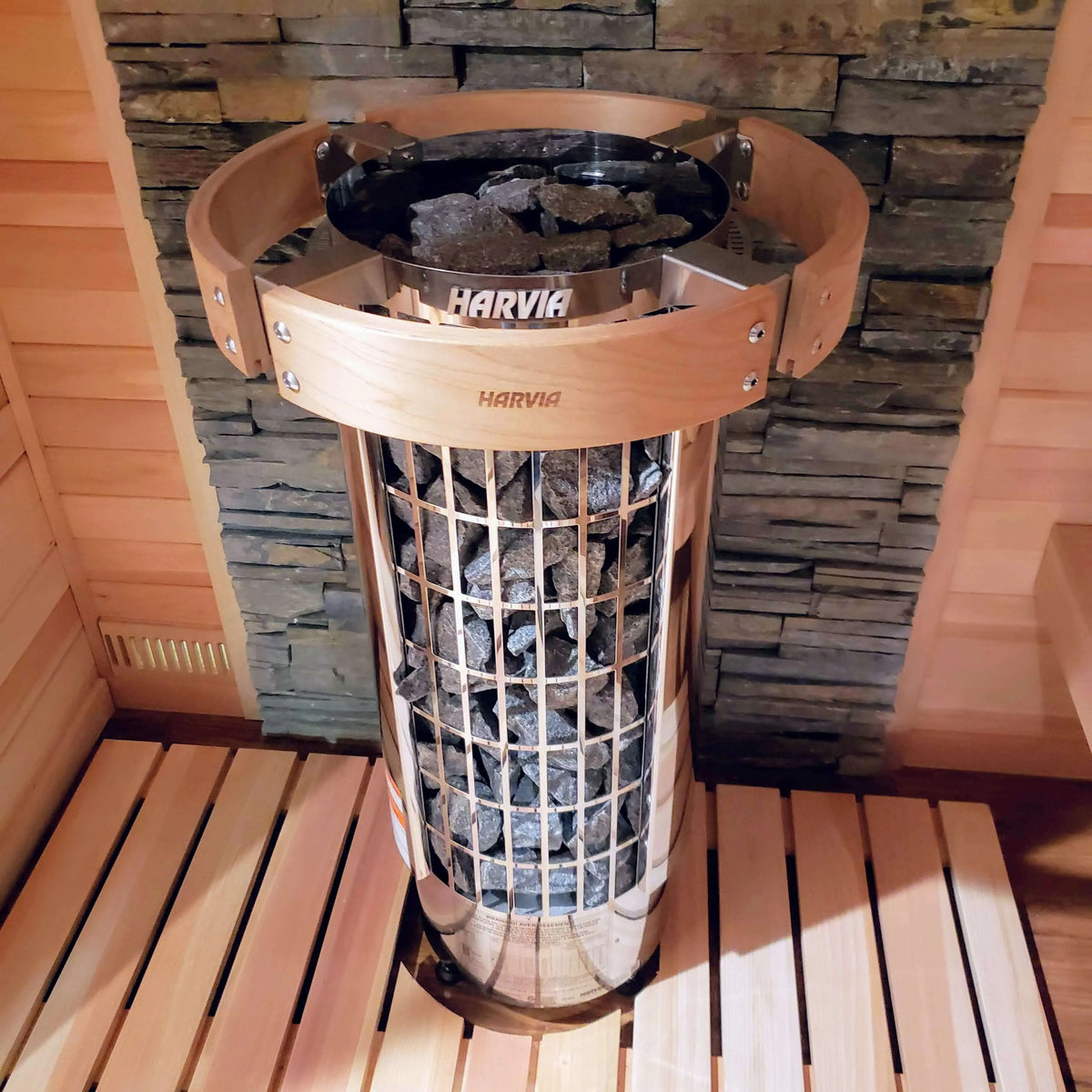

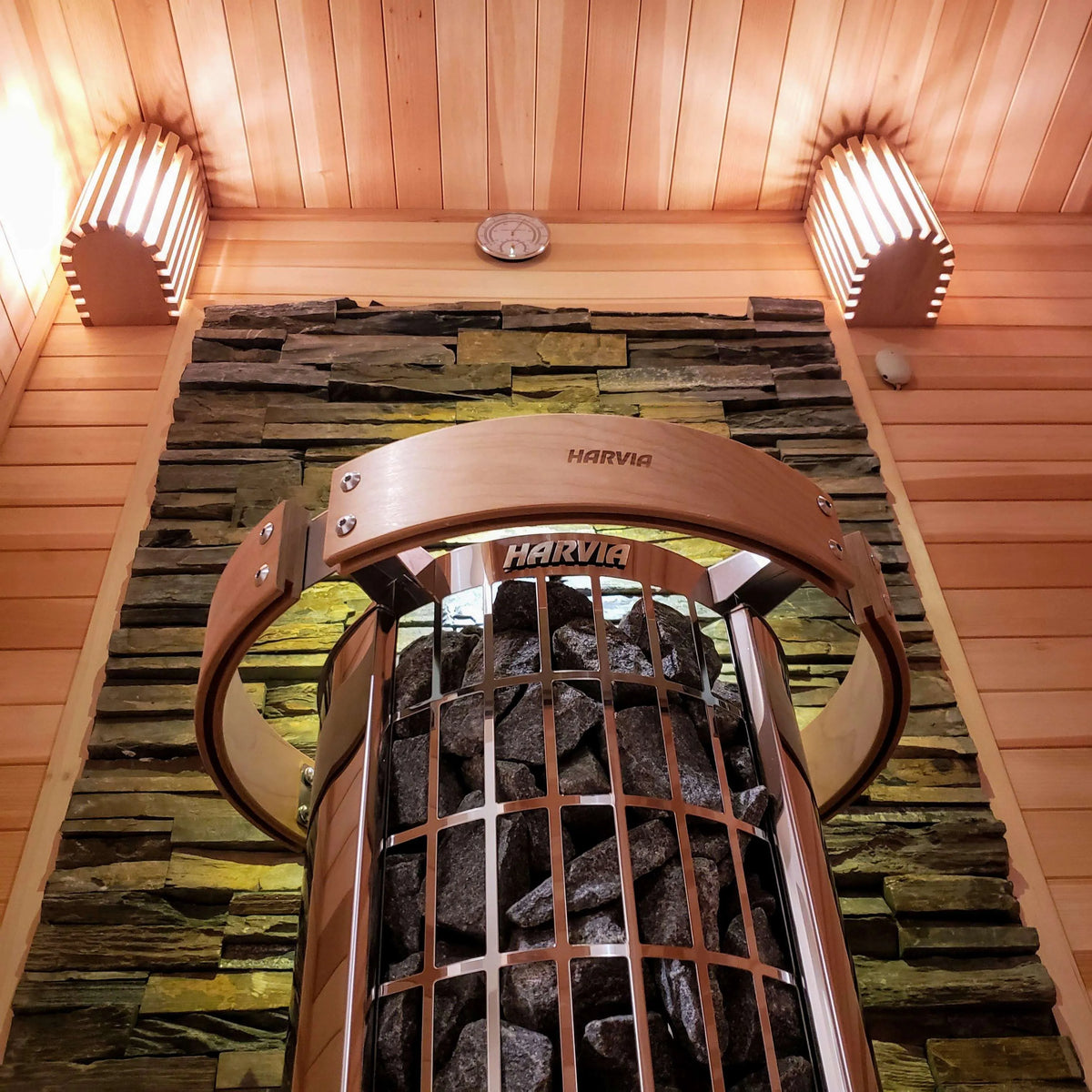

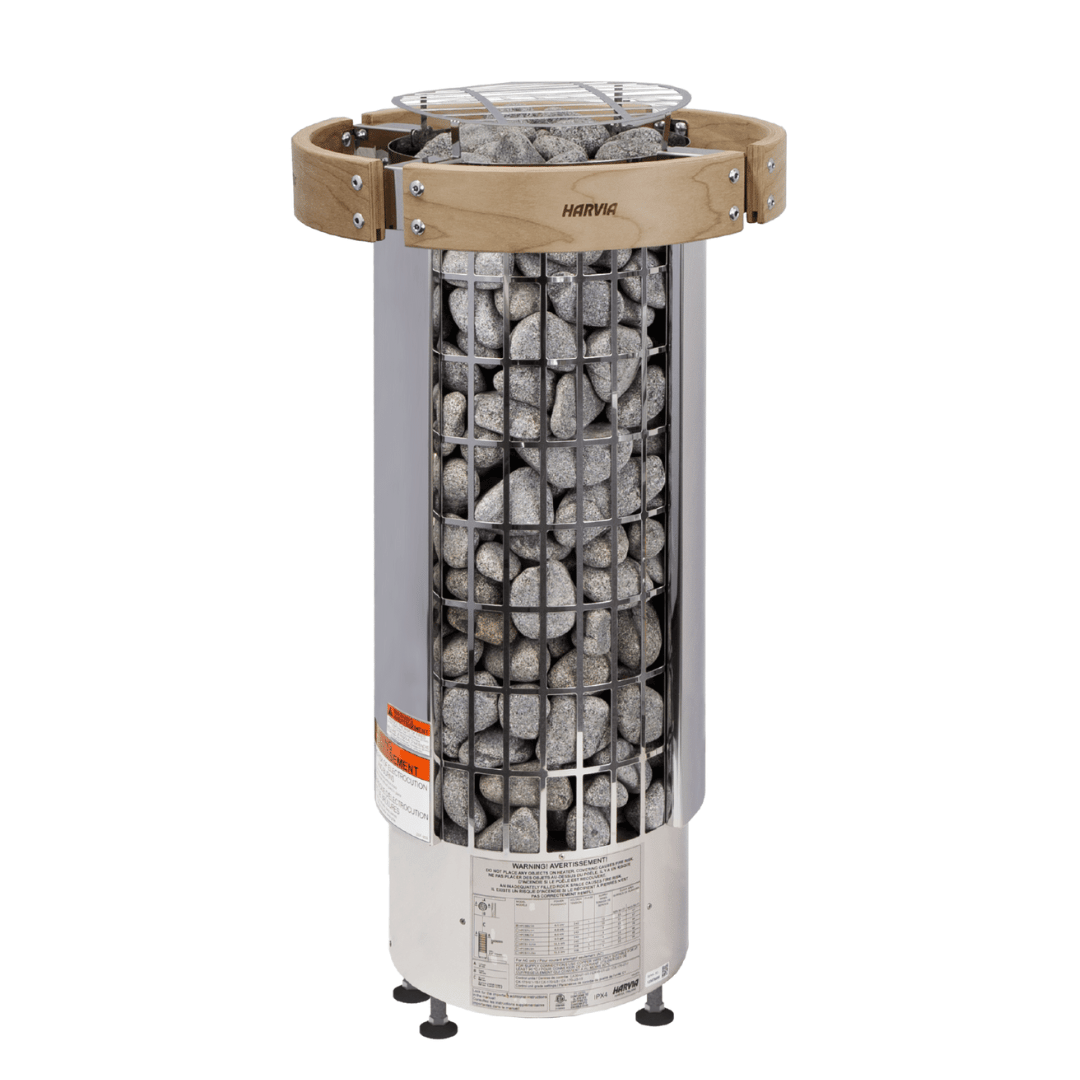

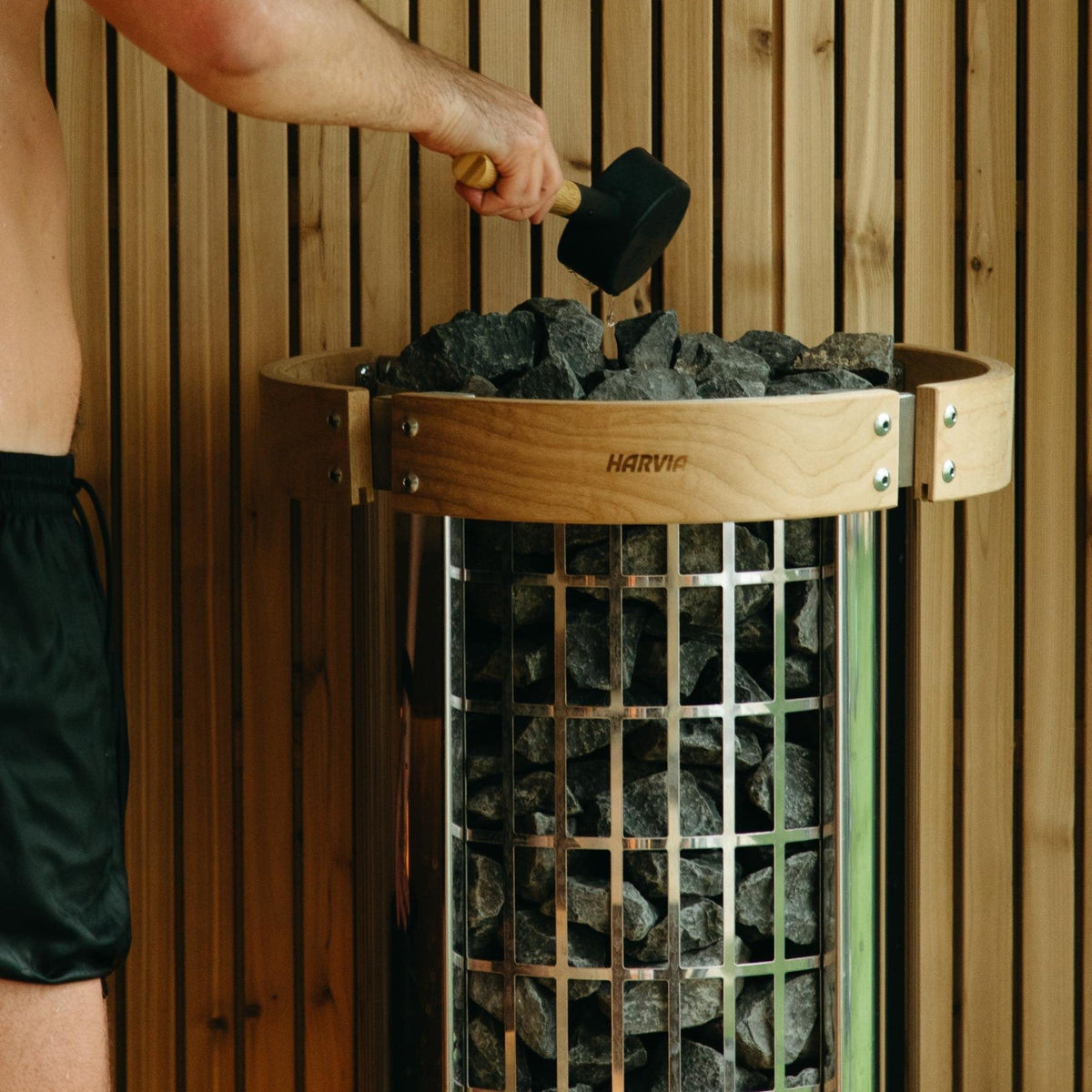

- Safety Railing (to protect from contacting the hot surface of the heater)
OR

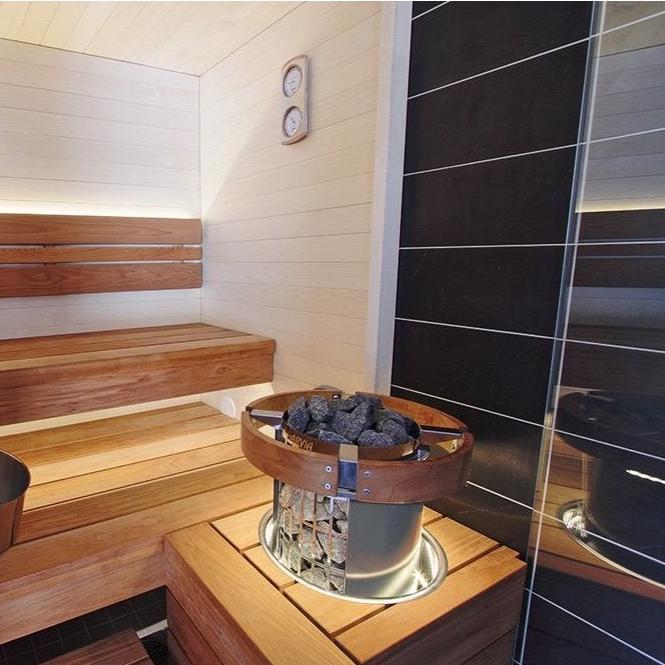

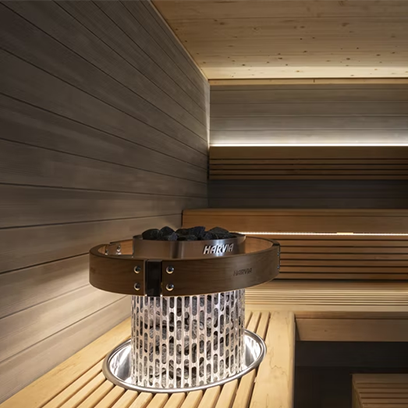

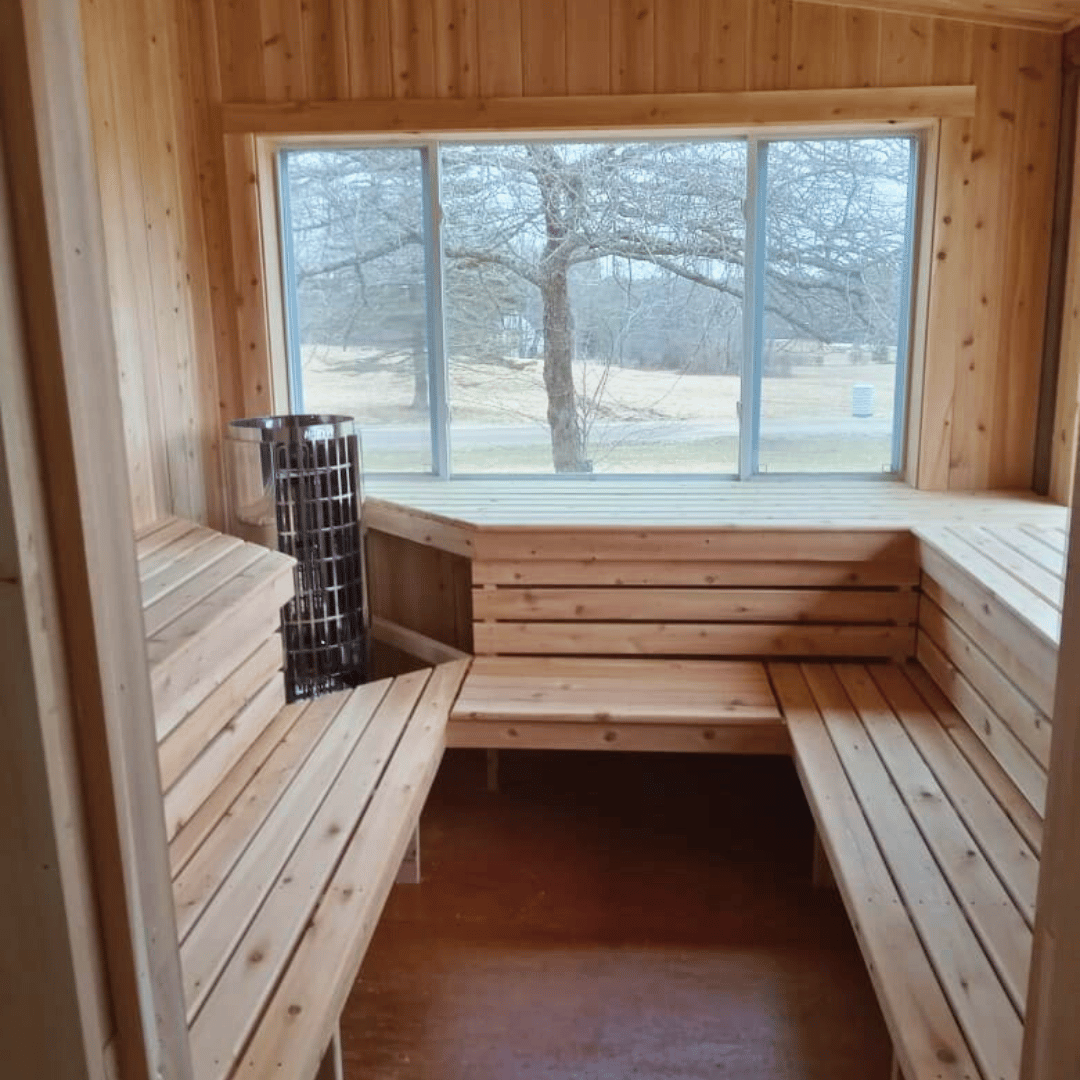

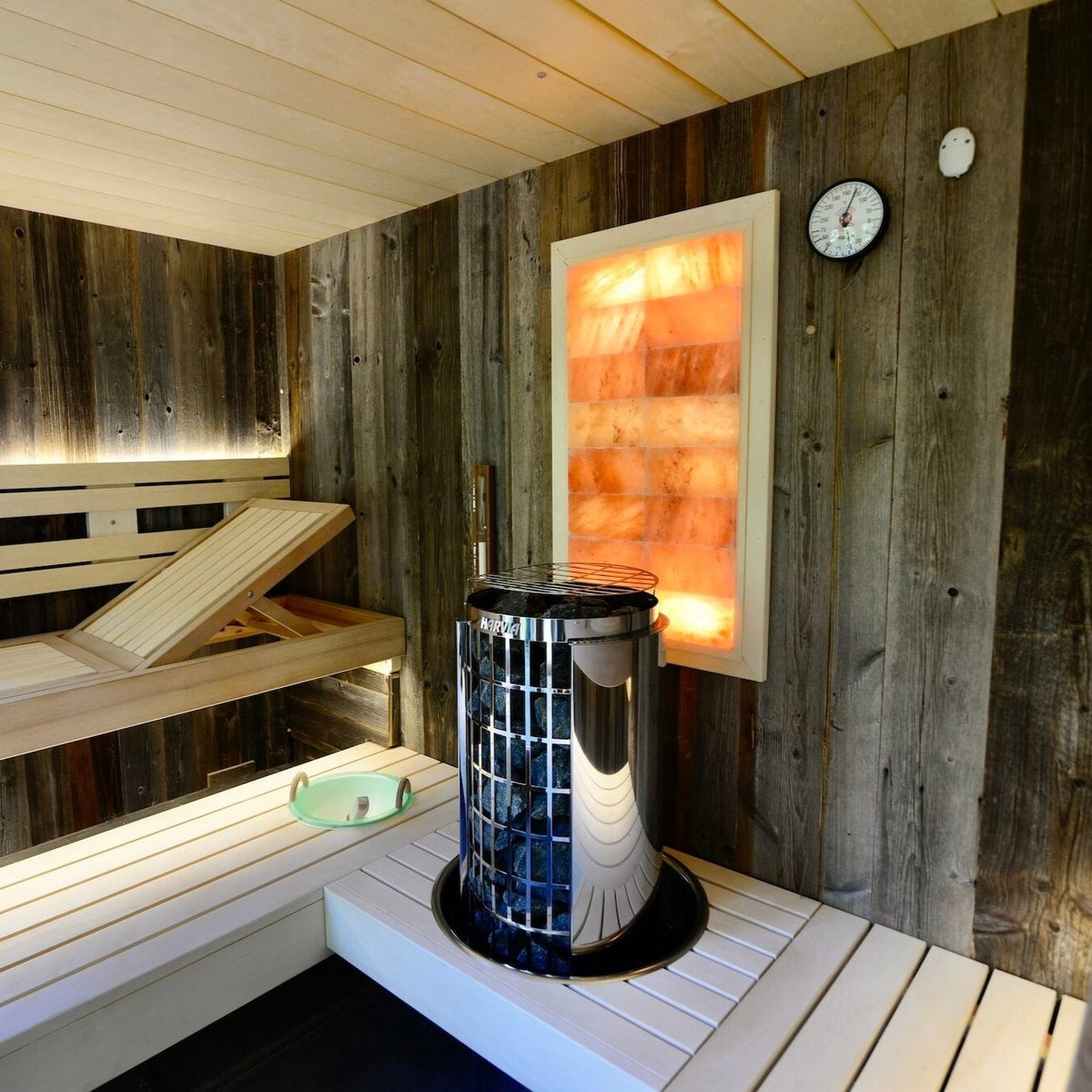

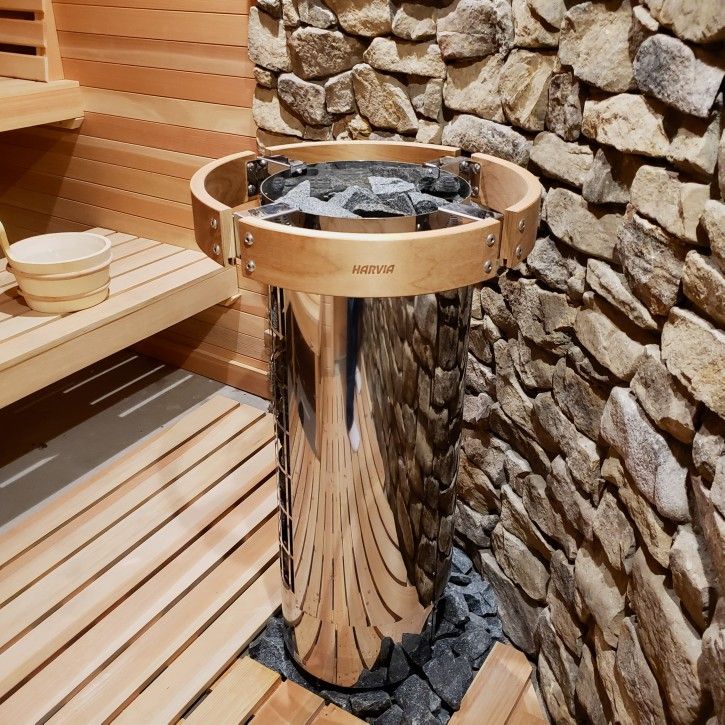

- Embedding Flange (to recess heater in bench)
OR
Manuals
