Harvia Autodose & Spout - Automated Water & Scent Dispenser For Sauna Heaters | SASL1_SASL2M
Say goodbye to your bucket and ladle! With just a press of a button, this automated water dispenser applies water to your stones - with or without fragrance. With automatic intervals or on demand flow, you can choose the pace in which you experience the steam. Sit back and relax to reap the benefits from the humid air in your sauna space with the Harvia Autodose. Designed to be installed above the heater, this modern, black nozzle directs the water onto the stones in order to create a wonderful steam.
Features
- Automated water dispenser for sauna heaters
- Automatic and manual mode
- Suitable for both water and sauna scents

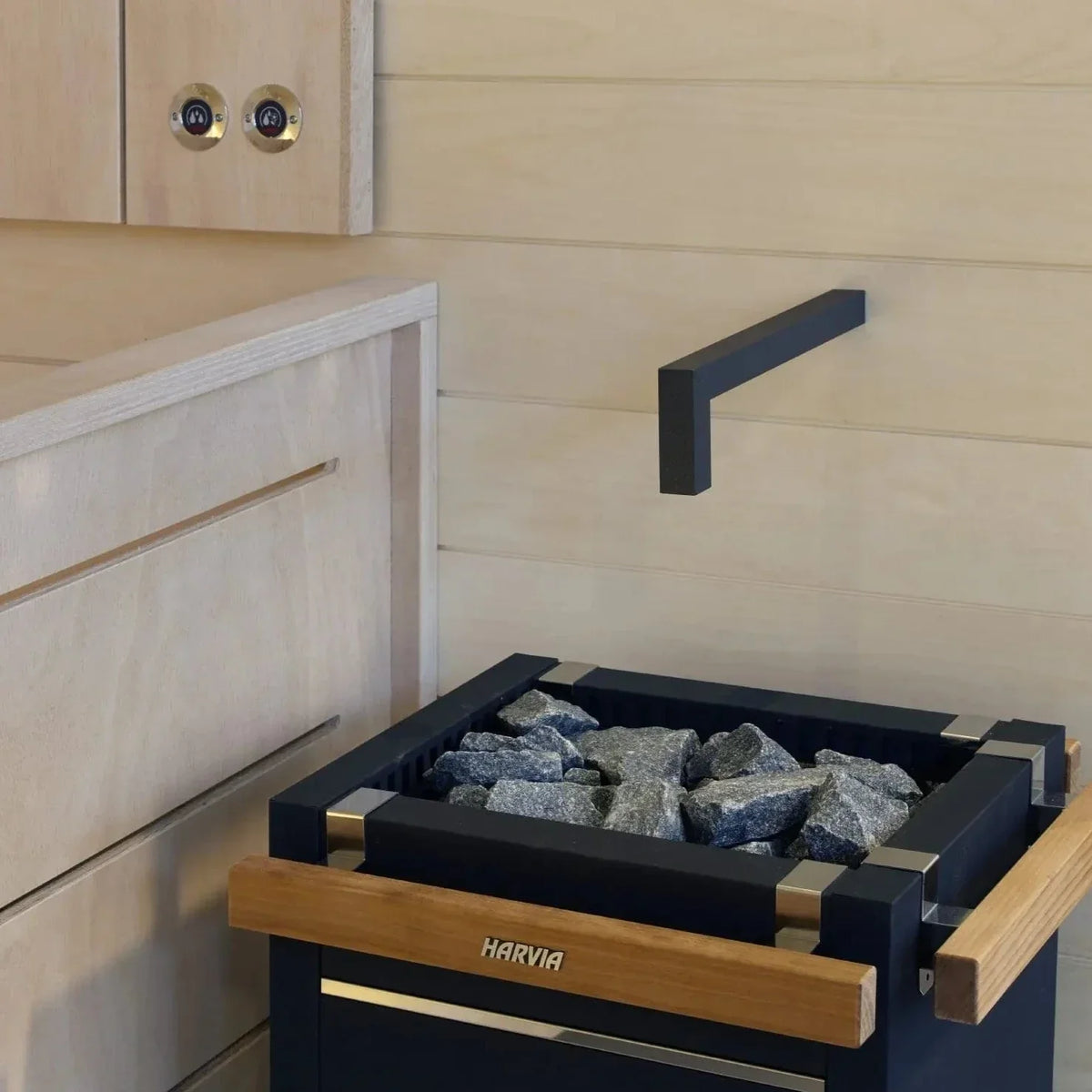

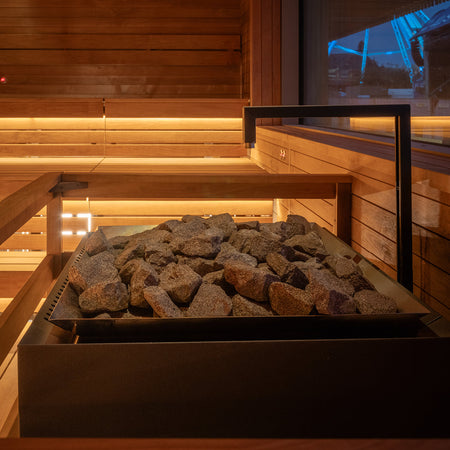

- Black nozzle that extends 24" from wall (works best with free-standing floor heaters)
Using the Harvia Autodose

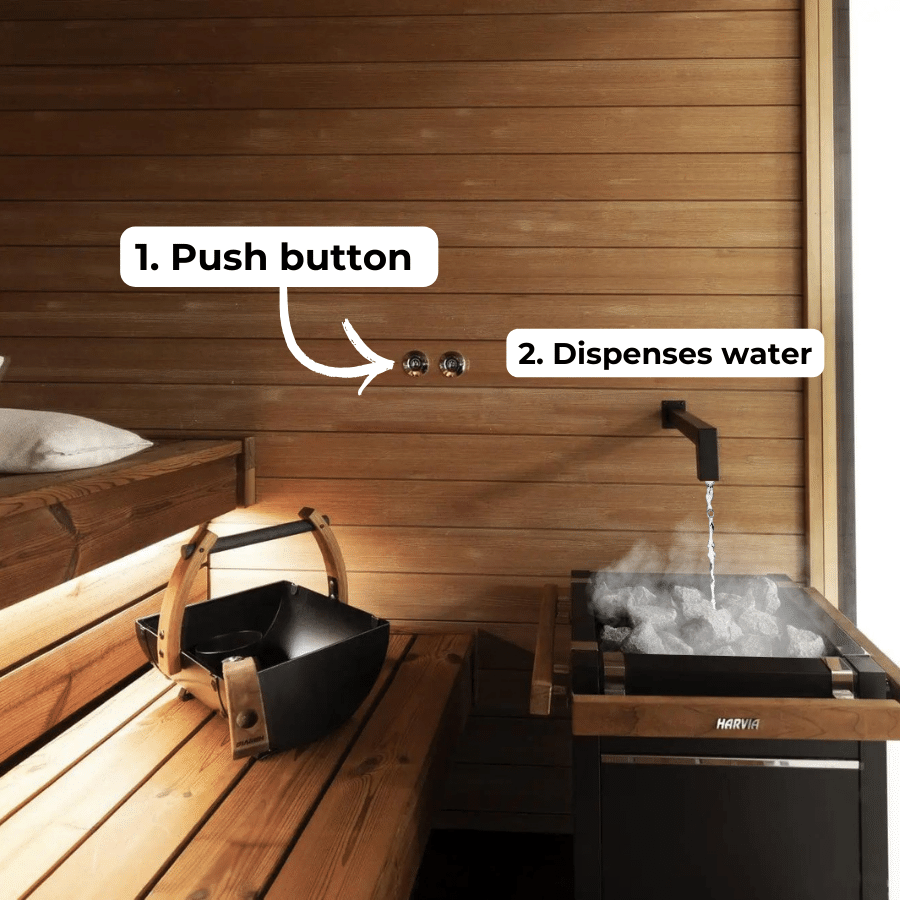

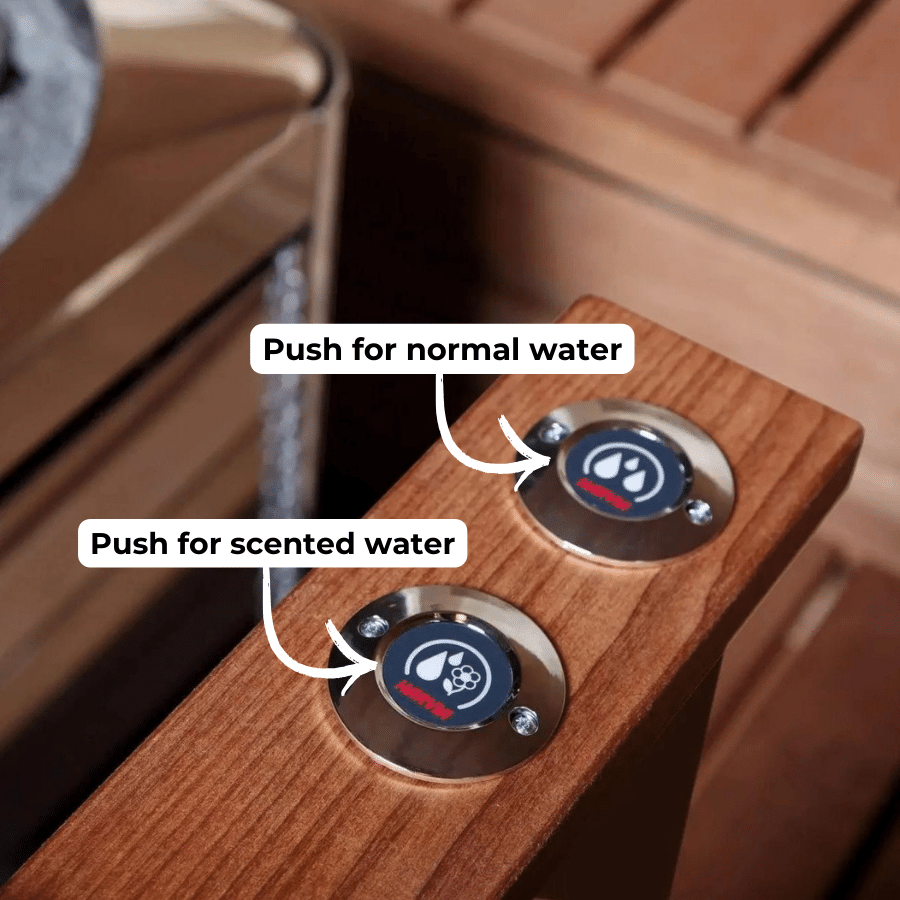

- Water Application: Press the water button to dispense a pre-set water amount onto the heater.
- Water and Fragrance: Press the water and fragrance button for a pre-set water-fragrance mix.
- Manual Operation: Pressing a button in automatic mode resets the dosing timer.
Modifying Settings (Under Main Unit's Cover)
- Automatic Output Interval: Adjustable between 1-10 minutes. Minimum setting turns off automatic output.
- Fragrance Duration: Settable from 1-20 seconds.
- Indicator Light: Illuminates during automatic output.
- Water Output Duration: Adjustable from 0.3-4 seconds.
Note: Water and fragrance amounts depend on tap pressure and fragrance strength. Experimentation may be needed.
30-Minute Delayed Start: Program the device to start 30 minutes after powering on.
Includes

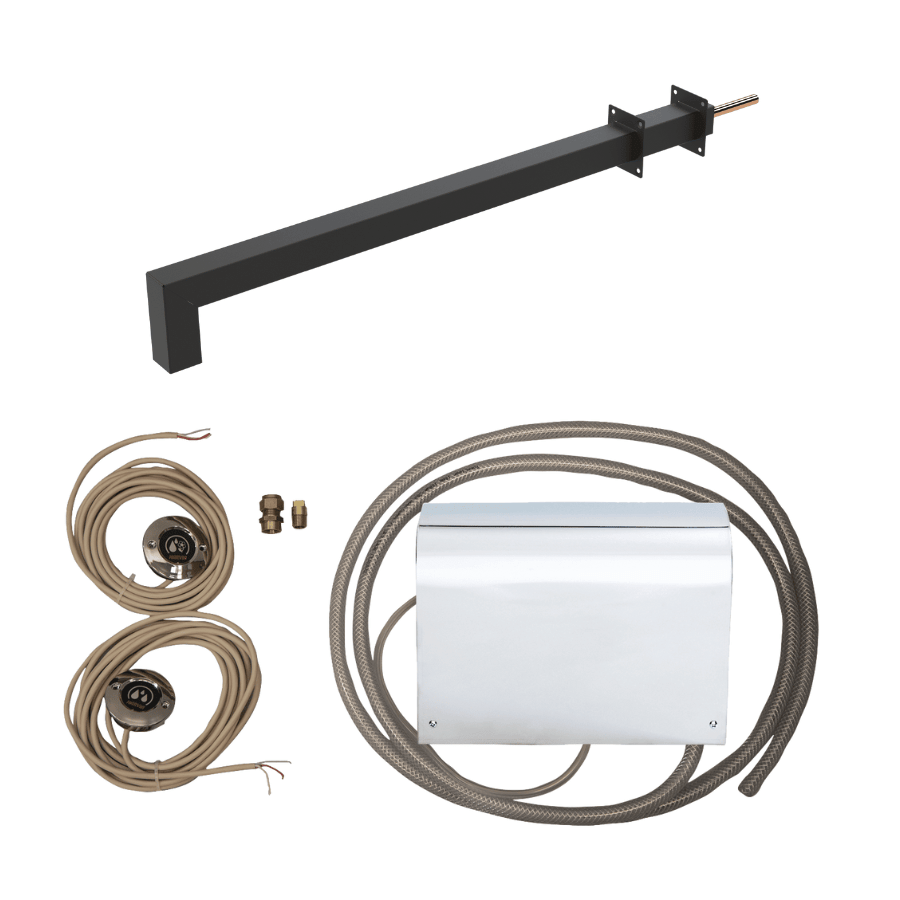

Included:

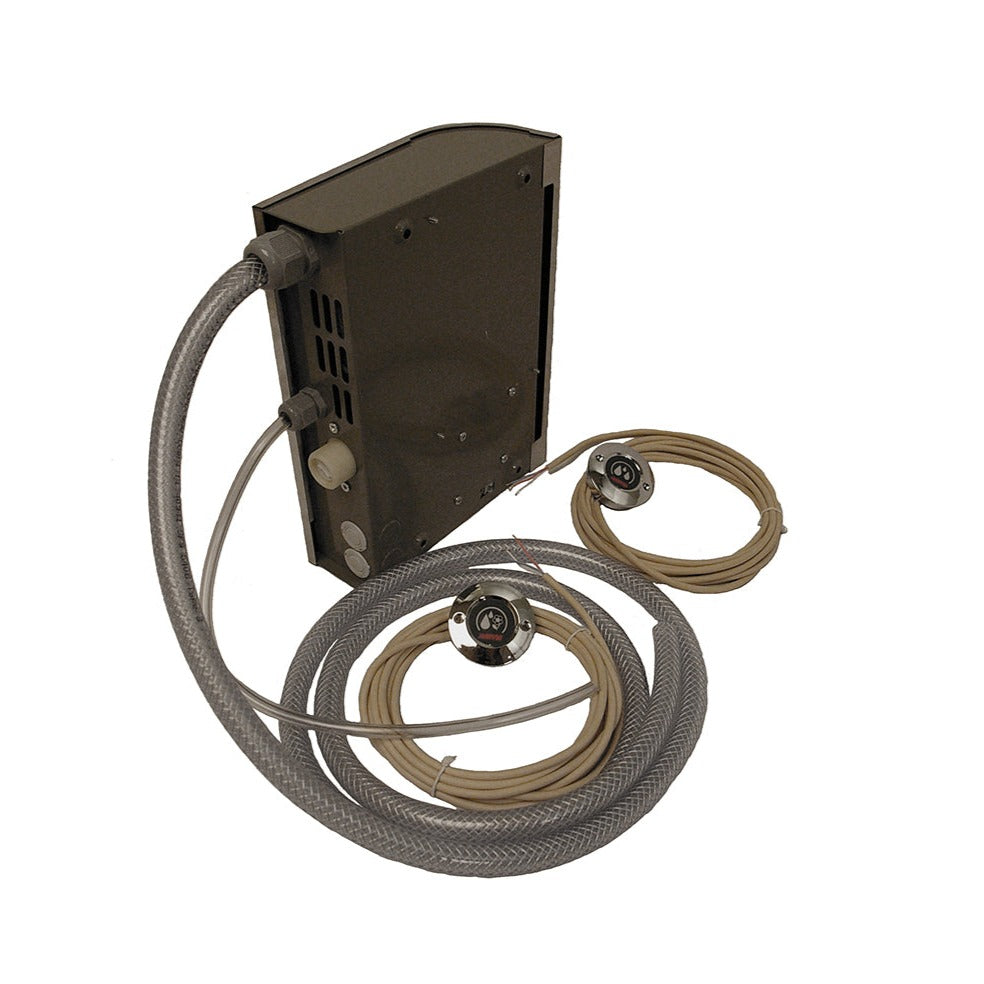

- Autodose Control Unit
- 24 in long Spout
- Inlet/Outlet Pipes
- Nozzle

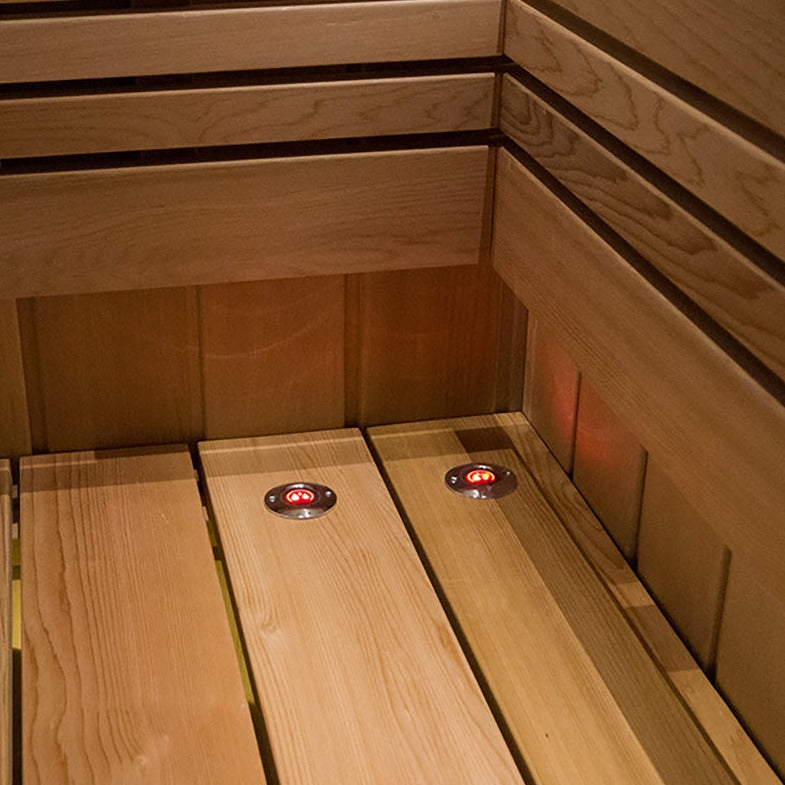

- Operating buttons & wires for water and fragrances
- Installation and operating instructions
Specifications
Specifications
- Autodose Dimensions: 10.6"W x 7.9"L x 3.2"D
- Mounting Location: Mount on wall in dry area near sauna with space underneath for a one gallon aromatherapy bottle
- Supply voltage: 240V- Connect one 120V line of your circuit to L1 , one 120V line to N on the unit, and the ground wire to the ground terminal
- Water Inlet: G3/4 Male threads- Use a G3/4 Female-to-3/4"NPT Male adaptor fitting connected to a shutoff valve and then to plumbing of choice.

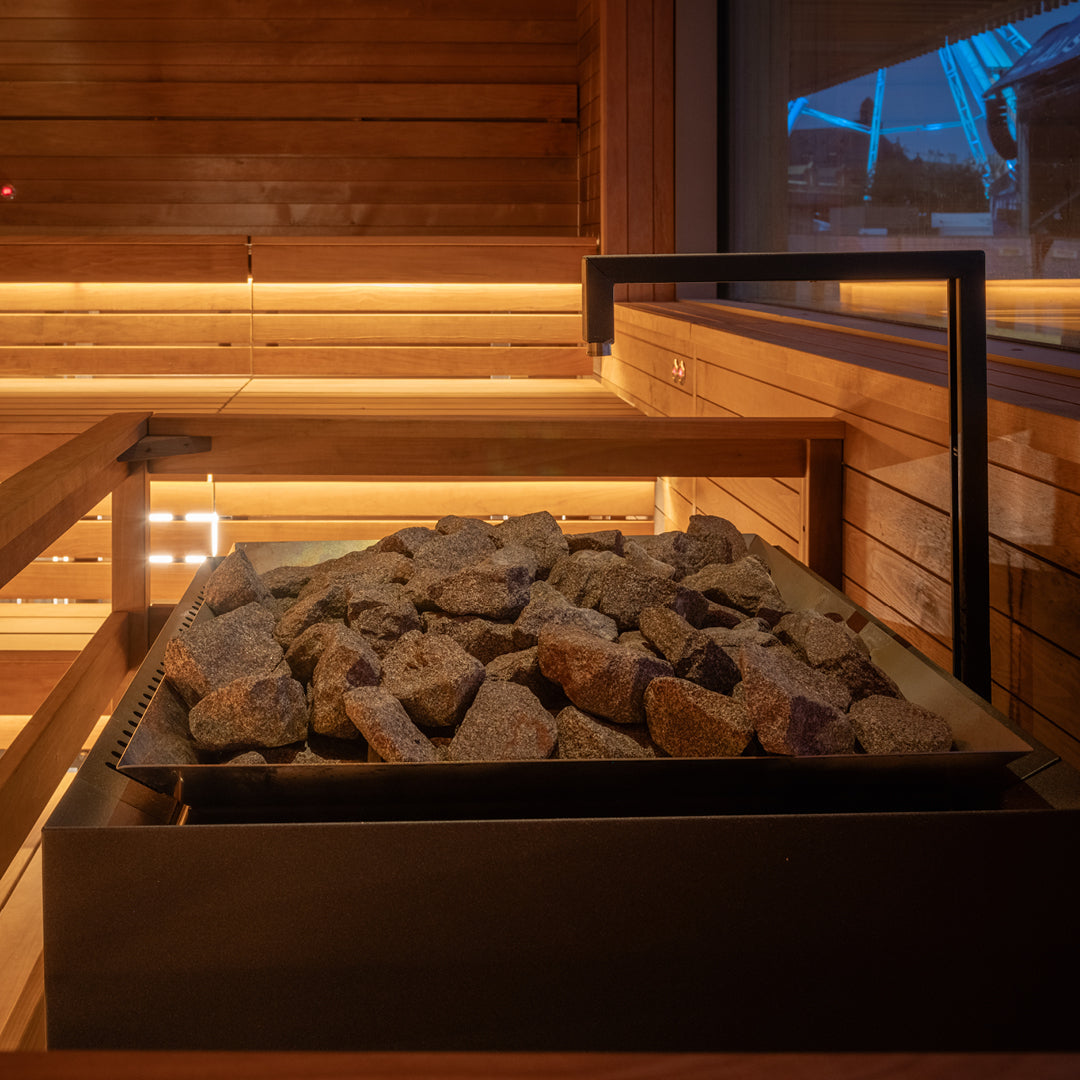

- Water Outlet: 3/8" ID Hose- Connect the provided 8' flexible hose to the spout that should be mounted 8-12" above the sauna heater pointed down
- Diameter of hole for embedding buttons: 2"
- Fragrance suction pipe: 1.64 ft hose that is submerged in aromatherapy bottle
- Length of operating button cables: 13 ft

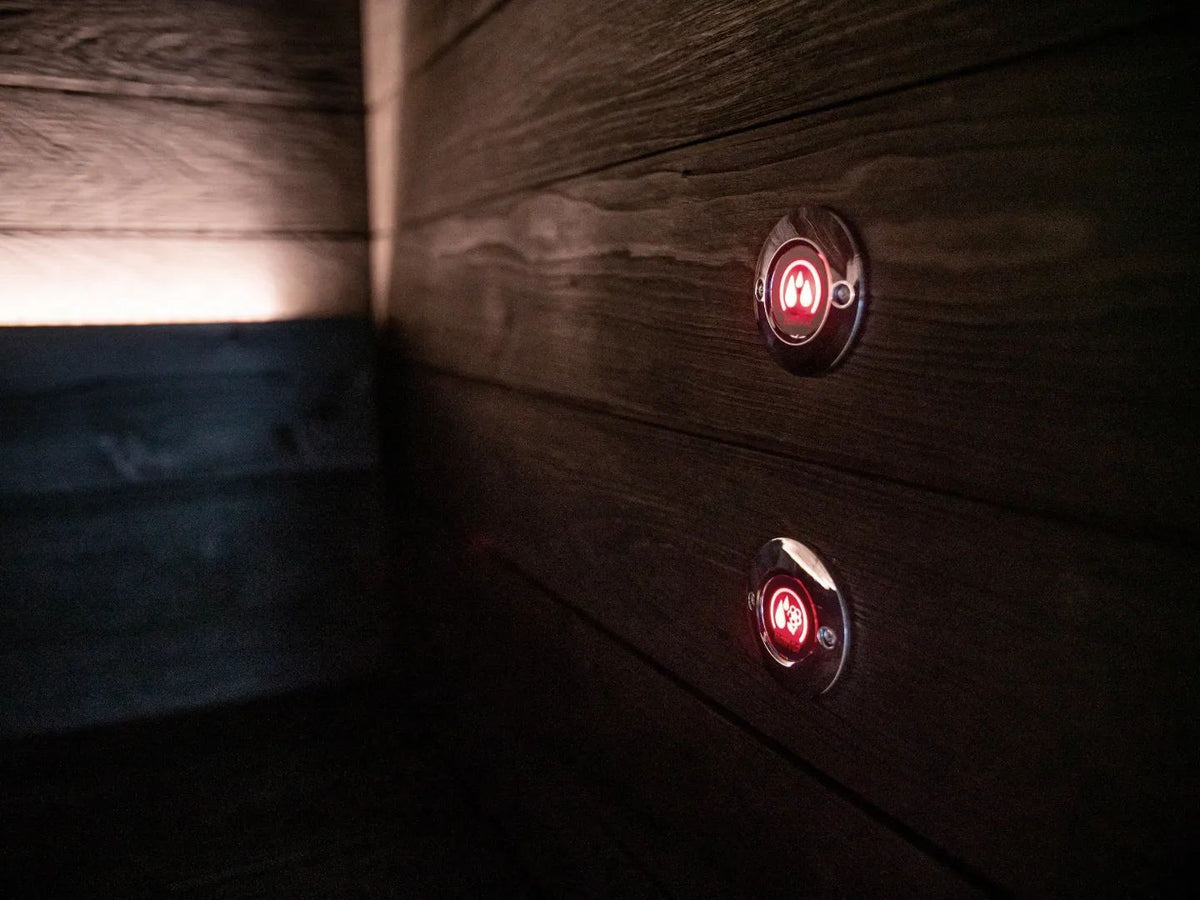

- Dimensions of operating buttons: 2.17" diameter x 0.6" deep
- Max amount of installed buttons: 10 pcs (5 “water” buttons and 5 “water and fragrance” buttons)
- Autodose Case Material: Stainless Steel
