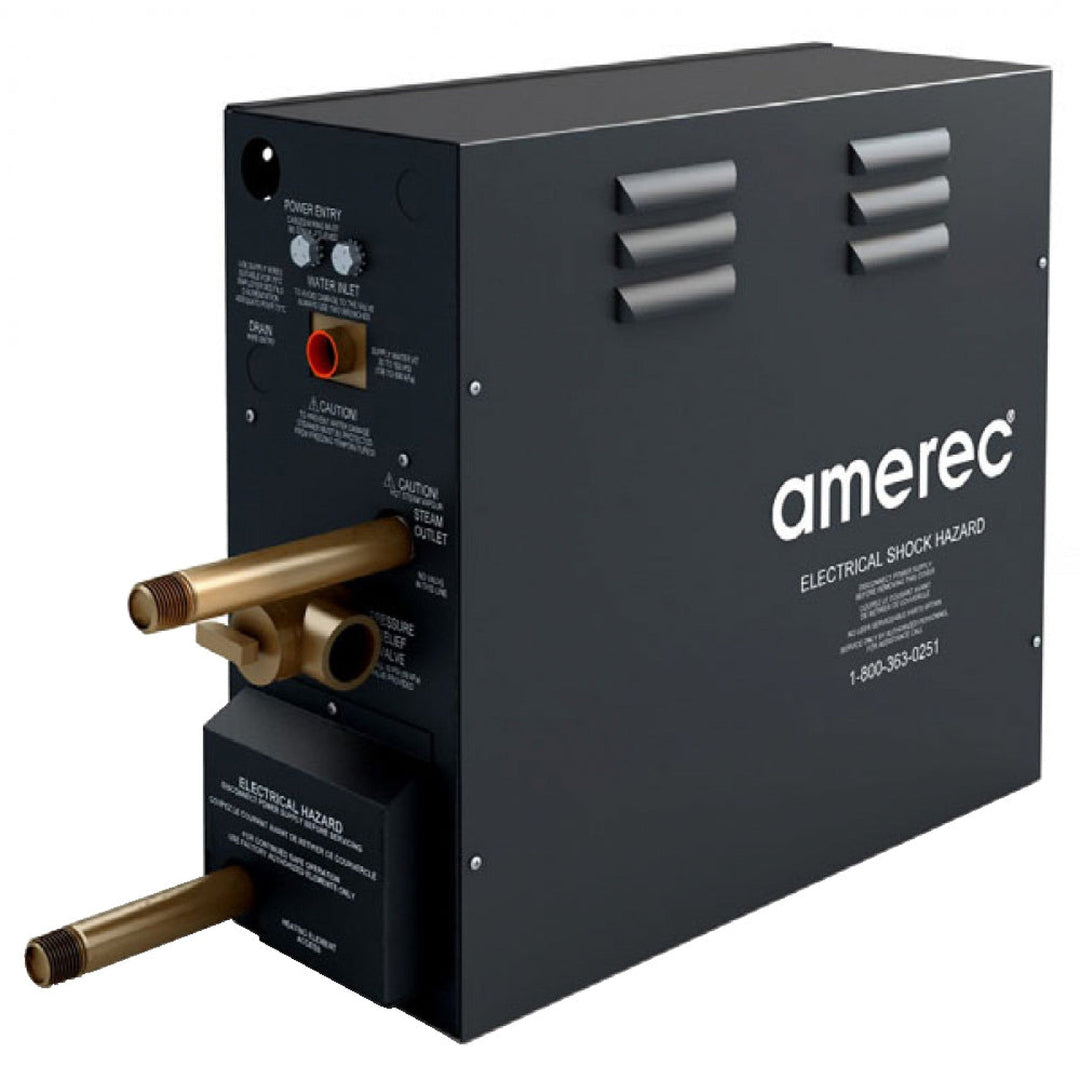

Amerec AK Series 6.0KW Steam Shower Generator
Usually Ships Out: 3-5 Business Days
Once an order is processed, packed, and shipped, we will send tracking information.
Ask an expert
The Amerec AK6 is designed for home and day spa steam baths with dimensions up to 150 adjusted cubic feet (ACF).
The AK6 steam shower generator features a stainless-steel tank, professional-grade heating elements, modular snap-in control connections, durable electronic components and parts, an electronic water level control system, and a variety of other innovative components.
Amerec AK Series steam generators are engineered to provide years of exceptional performance and reliable, worry-free operation. The Amerec AK6 steam unit is equipped with a Sequential Temperature Control which ensures an even, consistent steam production.
The Amerec AK6 steam bath generator is designed for ease of maintenance and is built to power the most demanding home and commercial steam rooms. Its stainless-steel tank and water probes provide long-lasting strength and dependability. The AK6 steamer includes removable heating elements for easy, economical service.

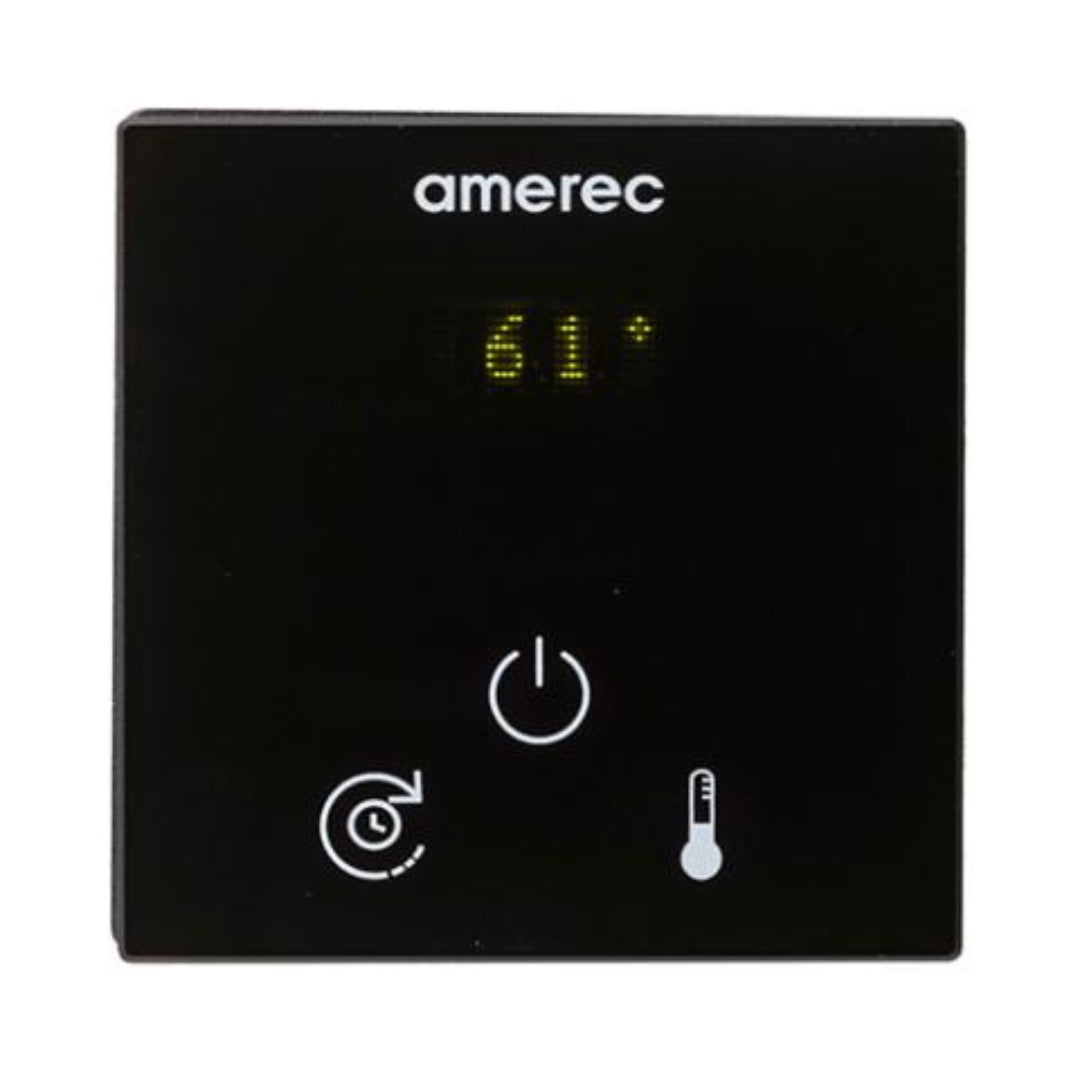

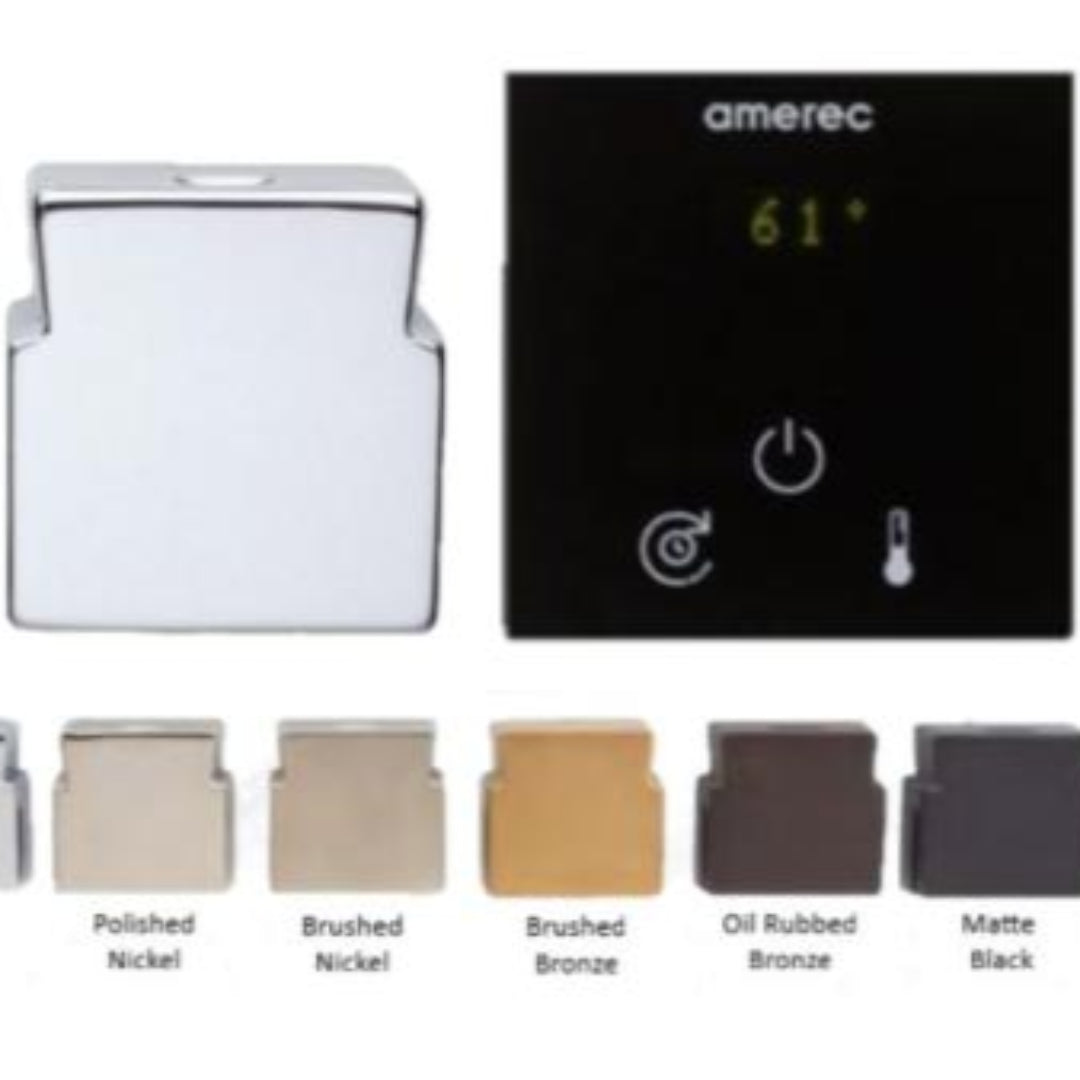

The Amerec AK6 steam room generator requires the available K3 control for operation which regulate bathing duration and temperature, or the R30K 30-minute timer. Each control package includes a matching finish ComfortFlo steam head.
The AK6 6kW steam generator is available in 240V or 208V and can be field wired for single-phase or three-phase configurations.

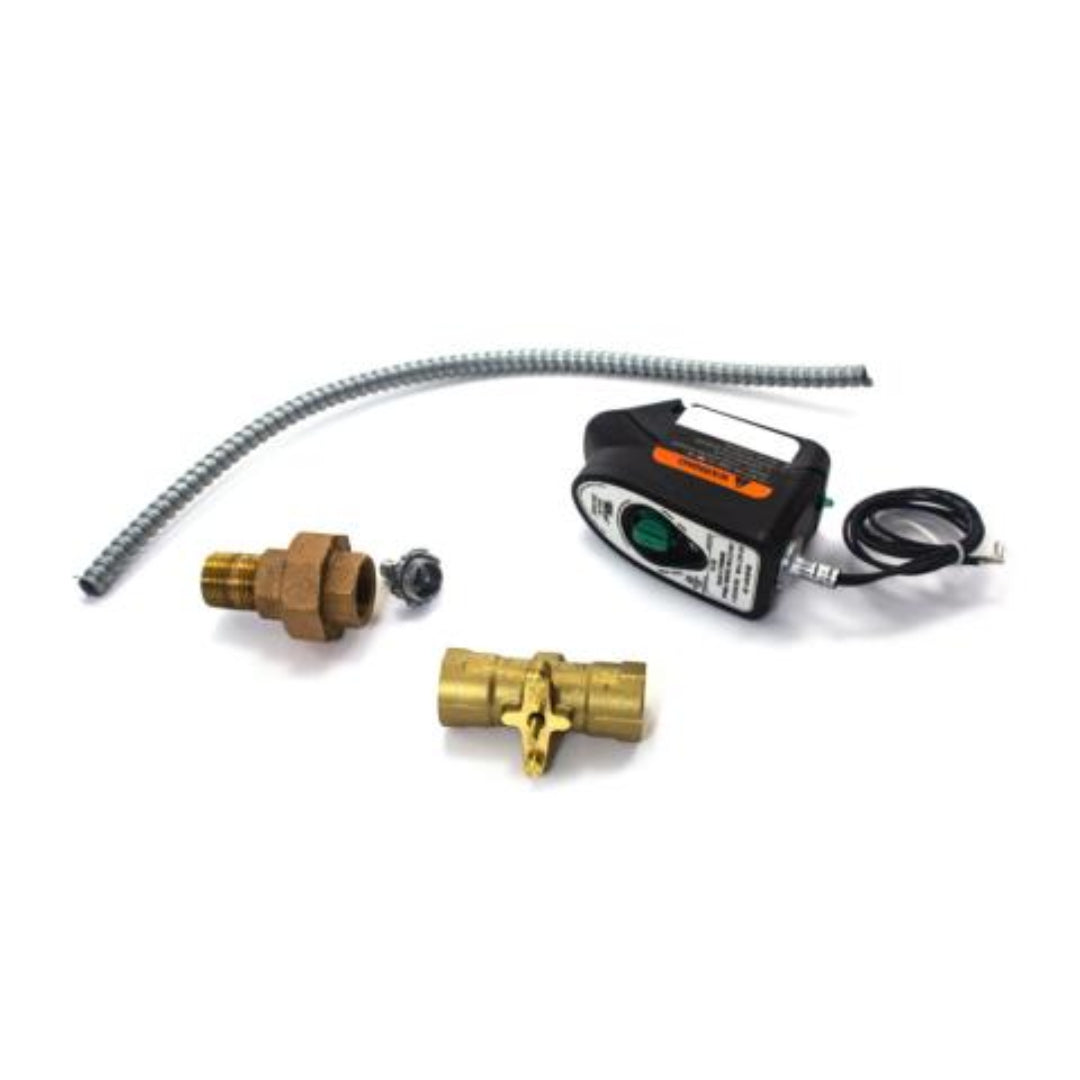

We recommend the available Amerec ADK Automatic Drain System with your AK6 steam shower unit which automatically drains the generator tank after each use to help prevent calcification and lime build-up.
Amerec AK series generators can be linked in tandem to accommodate steam rooms with dimensions up to 1500 adjusted cubic feet. Connection cables are sold separately, and each generator requires a comfortFlo steam head. Homeowners, health clubs, and day spas rely on Amerec AK generators for low cost, safety, and durability. Amerec AK residential steam shower generators are available in a variety of power ratings to best suit your needs.
The Amerec AK6 has a limited lifetime warranty and is fully serviceable. Amerec generators are UL, CSA, and CE listed for your safety.
*Required control package sold separately.
What's Included
- 6kW steam bath generator
- Installation and operation manual
- Limited warranty
Features
- Sequential temperature control for soft steam
- Stainless steel tank
- Industrial grade, serviceable heating elements
- Durable electronic components
- Electronic water-level control system
- Low voltage safety control circuits
- Available Auto Drain automatic draining system
- Ability to field wire phase for 1-phase or 3-phase
- Ability to connect multiple generators to heat steam baths larger than 550 cubic feet
- Full 3/4" port drain valve
- ASME safety valve
- UL/CSA/CE listed
Specifications
| Model | AK6 |
|---|---|
| Minimum Adjusted Cubic Feet | 80 |
| Maximum Adjusted Cubic Feet | 150 |
| Shipping Weight (Lbs.) | 35lbs |
| Kilowatt Rating (KW) | 6 KW |
| Water Supply Connection | 3/8” Compression Connection |
| Generator Steam Line Connection | 1/2” NPT |
| Steam Head Connection | 1/2” NPT |
| Drain Connection | 3/4" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 10 PSIG |
| Control "Rough In" Cut Out | 2-3/8” Diameter |
| Generator Control Connection | 8 Pin, Snap-In Connector |
| Generator Control Cable | 25', 8 Conductor, 28 AWG, Shielded Cable |
| Control Sensor "Rough In" Cut Out | 7/8" Diameter |
| Control Sensor Cable | 25', 2 Conductor, 22 AWG, Shielded Cable |
| Width In Inches | 16-1/2” |
| Depth In Inches | 6-1/4” |
| Height In Inches | 15” |
